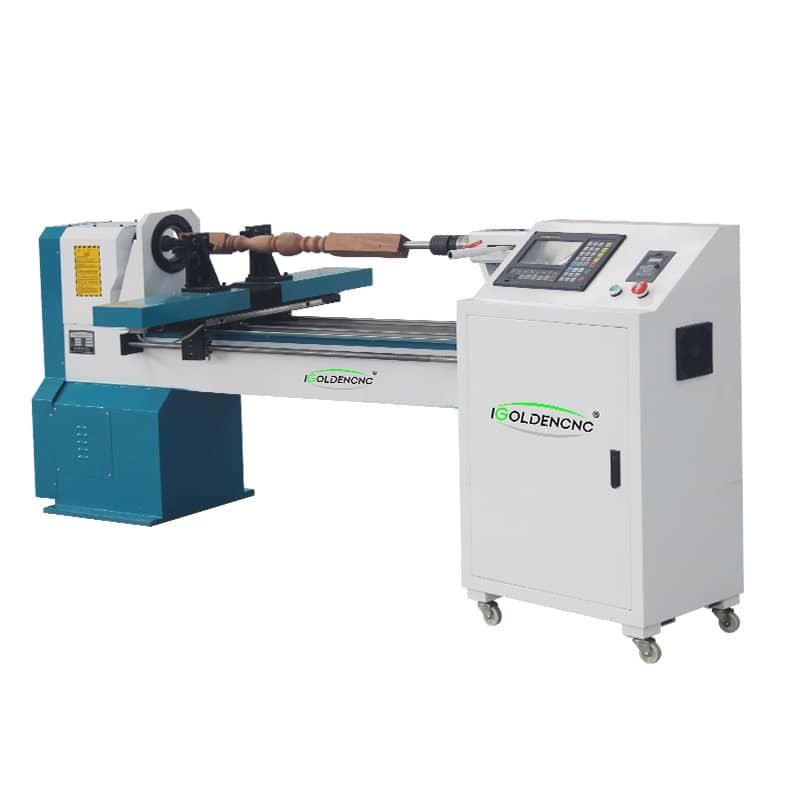

Single Spindle CNC Wood Turning Lathe Machine Description:
Supporting single blade, one time process, no need complicated program to finish multiple different turning, meets with different workpiece.
Single Axis Double Knives CNC Wood Lathe Parameter:
| Maximum processing length | 1200MM |
| Maximum machining diameter | 200MM |
| Control system | Control system |
| Inverter | Best |
| Bed structure | Heavy-duty integral casting |
| Transmission mode | High precision TBI ball screw |
| Guide rail drive | 20 linear guide 20 slider |
| Motor | Stepper motor |
| Spindle speed | 0——2800 |
| Working voltage | Three-phase 380V voltage |
| Main function | Car shape |
| Processing range | Stair column, Table and chair retreat, Bedside Column, cylindrical, cone, arc, spherical and other rotary products |
Woodworking Single-Spindle Double-Knife Woodworking Machine Features:
1. Heavy Cast iron lathe bed: avoid shaking when the spindle rotates fast or the big sizes workpiece
process, and the main spindle speed can be adjusted through the frequency converter.
2. Taiwan TBI helical guide Germany ball screw,high precision and durable.
3). DSP handle controller with USD interface, it is easier for allign cutters than computer.
4). Spindle speed data is shown on the cabinet panel.
5). Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
Single Spindle Double Knife CNC Wood Lathe Machine Details:
 | 1. The bed has a highly rigid cast iron structure, and other small components are precision castings, all of which are tempered, with accurate dimensions, stable materials, and improved resistance to deformation. |
 | 2. Adopting national standard machine tool slide rail and ball screw, with high load-bearing coefficient, effectively controlling linear error. |
 | 3. Driven by high-precision stepping motor, interpolation calculation, to ensure the accuracy of processing size. |
 | 4. Spindle part: divided into single-axis and dual-axis, single-axis can be equipped with chuck, dual-axis can process 2 at the same time. |
 | 5. Feeding part: can be set to single or double blade. |
Single Spindle And Double Blades CNC Wood Lathe Details:
Single Spindle Double Knife Woodworking Lathes Application:
Staircases, stairway balusters, stairway newel posts; dining table legs; end table Legs; sofa table legs;bar stool legs; chair legs; chair arm posts; chair stretchers; bed rails, lamp posts,baseball bats
