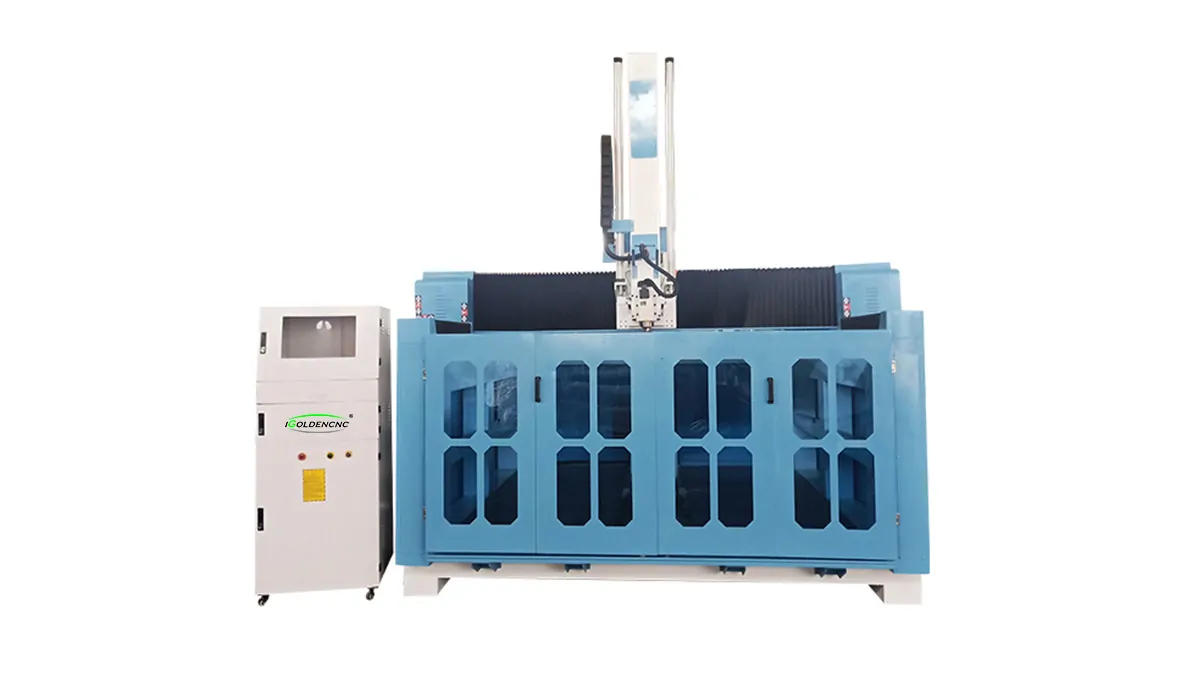

This EPS Foam CNC Machine has the automatic tool change function of ATC CNC router. It adopts the linear tool change tool magazine design. And it automatically change the tool according to the processing requirements during the machining process, saving manpower and time and correspondingly improving work efficiency. It is worth mentioning that the spindle of this machine can be swung 180 degrees, which is very suitable for processing complex foam parts.
1)We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
2)The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material.
3)The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.
4)The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.
This CNC Foam Router use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine's accuracy and strength when engraving.
4 axis cnc foam router Parameter Configuration
Description | Parameters |
Working area | 1300*3700*1200mm |
Drive | Yaskawa 850W, Japan |
Inverter | Delta |
System | Taiwan SYNTEC control system+handwheel |
Spindle | 9KW HSD Italy air cooling spindle with swing 180degree |
Motor | Japan Yaskawa Servo |
Rack | X, Y axis 960mm helical gear |
Screw | Z axis screw |
Tool set | Automatic tool setting |
Voltage | 3 Phase/380V/50HZ |
4 axis cnc foam router Applicable Industries And Materials:
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone,Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries, etc.
