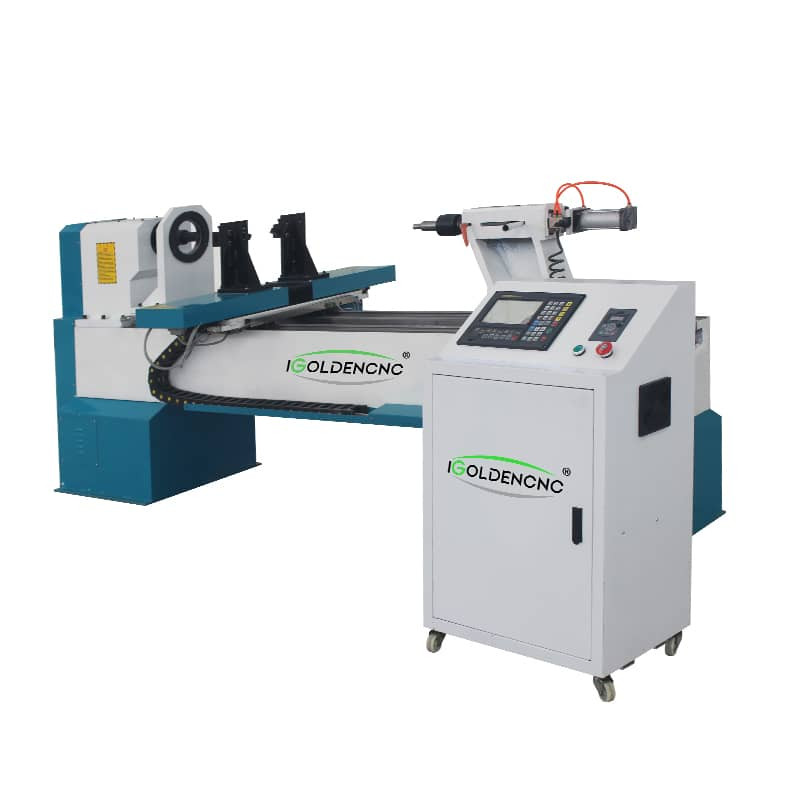

Single Spindle Double Knife Wood Turning Machine Description：
Single Spindle Double Turning Toos Wood Lathe (Turning) -S series. Material. furniture production, stairs, chair leg, billiards table leg, coat rack, wooden
Main Feature Of Single Axis Double Knives CNC Wood Lathe:
1、 Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials' vibration.
2、 Spindle:we could configure gle spindle or two spindles, single spindle could configure chuck, two spindle could process two pieces at the same time for high efficiency.
3 、Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4、 Feeding part: Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw, control the linear error effectively.
5、Japanese frequency converter with high stability
6、 Operation system developed by ourself with patent is easy to operate.
Single Spindle And Double Blades CNC Wood Lathe Parameter:
| Maximum processing length | 1500MM |
| Maximum machining diameter | 300MM |
| Control system | GXK system |
| Inverter | Best |
| Bed structure | Heavy-duty integral casting |
| Transmission mode | High precision TBI ball screw |
| Guide rail drive | 25 linear rail 25 flange slider |
| Motor | Stepper motor |
| Spindle speed | 0——2800 |
| Working voltage | Three-phase 380V voltage |
| Main function | Car shape |
| Processing range | Stair column, Table and chair retreat, Bedside Column, cylindrical, cone, arc, spherical and other rotary products |
CNC Wood Lathe With Single Spindle Double Knives Details:
Woodworking Single-Spindle Double-Knife CNC Wood Turning Machine Details:
CNC Wood Turning Lathe Machines Application:
CNC Lathe Machine is the popular woodturning machine. The woodworking lathe can take the workpiece rotating on its axis to achieve various operations, include cutting, turning, sanding, carving, drilling, broaching, shaped processing.
