Best-Selling Linear Atc CNC Nesting Recommended 2021

Views:3     Author:Site Editor     Publish Time: 2021-06-19      Origin:Site

Linear atc cnc nesting is one of the “flagship” models in our company. Adopted with gantry moving designs with high precision Germany Herion gear rack, high precision processed machine frame and parts. That makes the machine working effects stand out in the industries by advanced and precise assembly process. Linear type 4 tools changing, it is not only applied to the advertising industry(for PVC,MDF,acrylic and aluminum materials),but also widely used for high precision woodworking industries or other industries.

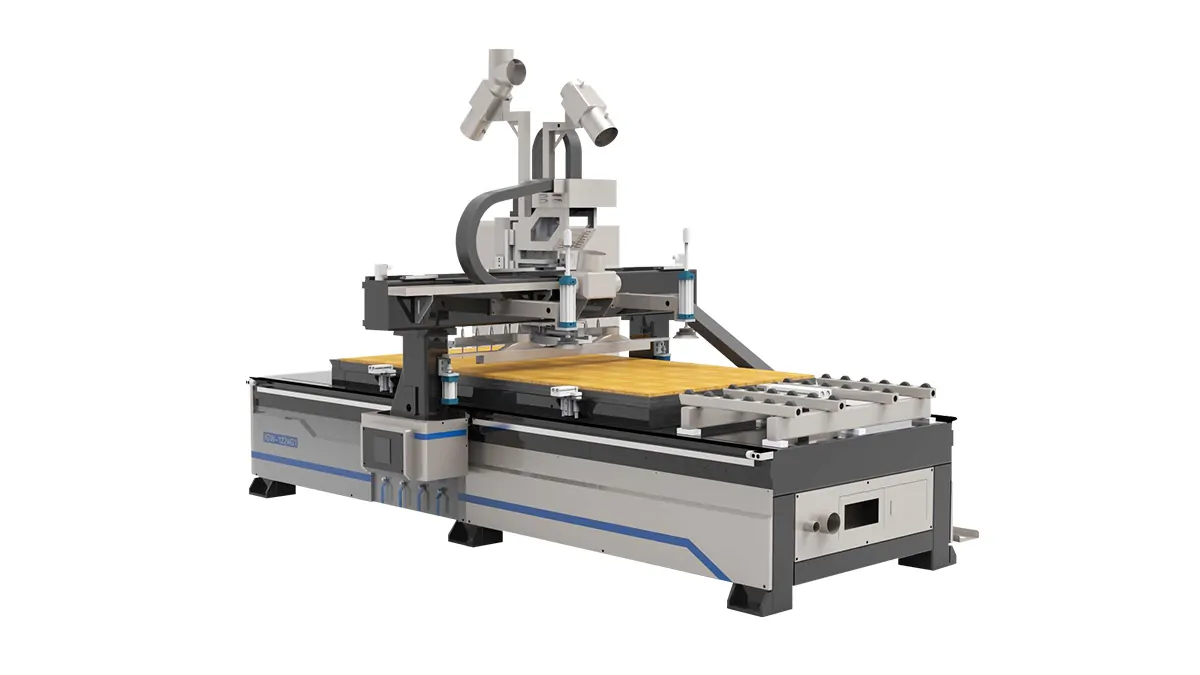

Linear atc cnc nesting

Linear atc cnc nesting with SYNTEC Control System:

1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.

3. Italy HSD spindle makes machine with high precision and long service time and stable movement.

4. Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 8 seconds.

5. Tool sensor enables the machine compensate the tolerance of the tool length.

6. Strong power suction of Yongdun free-oil pump.

7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility.

8. Strong dust collector ensures site cleanliness during the machine operation.

9. Automatic lubricating system, one touch can finish periodic maintenance easily.


Solvable processing

1. drilling: Adopts different diameter drills to drill different sizes hole on various boards.

2. grooving: With suitable tools to do grooving or slotting, it also can finish Clamex joint slots for Lamello.

3. cutting: Suitable for the regular shapes and irregular shapes cutting, also can do edging.

4. milling: Adopts different shapes CNC milling tools to achieve beautiful designs.

5. hollow-cutting: Solve production of the carved screens, separating boards, or other products that need to be hollowed cut.

6. carving/engraving: 2D carving design on wooden, composite, or other soft raw materials. Linear atc cnc nesting suitable for solid wave board process.If you need to do 3D design, please contact us to inquire about other 4/5 axis CNC machines for you.


Advantage of Linear atc cnc nesting

1. Using Taiwan Syntec Controller, Japan Yaskawa Servo Motor and Driver, Italy HSD Air cooling ATC spindle, Taiwan Delta Inverter, Taiwan Hiwin Linear Rails.

2. With Linear Tool Magazine which with 8 tool holder forks.

3. With auto positioning rods, can locate the materials automatically, save much time and improve the work efficiency.

4. Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.

Parameters

Model

1325 CNC Nesting Machine

Working area

1300*2500mm

Spindle

ATC 9KW HQD air cooling spindle

Inverter

Fuling

Motor

Dorna servo motors

Driver

Dorna servo driver

Control System

Taiwan LNC control system

Table

Double layer Vacuum table + position   cylinder + secondary dust collection + Pusher system

Oil lubrication

Automatic lubrication

Limit

Omron limit

Transmission

XY axis Taiwan helical rack Z axis Taiwan   ball screw

Rail

X,Y,Z axis Germany Square guide rail

Screw

Z axis TBI ball screw

Bed

Thick steel welded big square tube

Gangry

Strong frame

Pillars

Steel pillar(Suitable   for high-end customers)

Cabinet

Independent cabinet

Voltage

3 phase/380V

Color

As requirement

Tools

1 box(10 pieces)

1. Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc.

2. Advertising products industry: 3D letters sign making, acrylic cutting and engraving.

3. Board processing industry: insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process.

4. Decoration industry: folding screen, wave plates, advertising boards, sign making and logo’s processing.

5. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.

6. Processing material: engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on.
