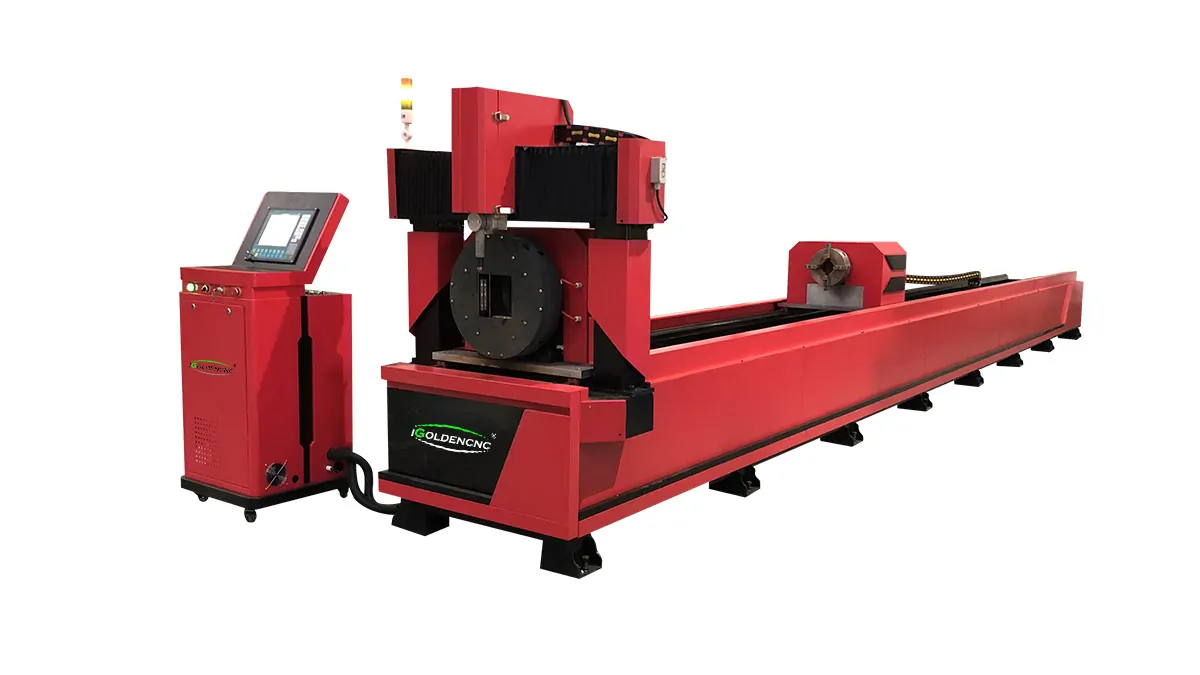

Igoldencnc Cutting Systems manufacturers high performance CNC plasma pipe cutting machines built for speed and accuracy. Our line of pipe cutting machines are designed to cut pipes ranging from 1″ up to 24″ in diameter. Each of our CNC pipe cutting machines can be configured for plasma cutting, oxy-fuel cutting or both.The CNC controlled Pipe Profile Cutting Machine allows 3D cutting/beveling using oxy-fuel or plasma. Advanced design and top quality components enable fast and efficient cutting with top quality results.Price:16000-20000$
1.New European Design
2. Economical CNC plasma pipe cutting solution for pipe with OD50-300mm
3. Easy to use programming software, no special skills required
4. Modular expansion-bed extensions available to accommodate longer lengths of pipe or tube to improve productivity by using fewer operations
5.With removable chip tray for easy waste disposal
6.The pipe is fixed by both sides of the chuck, with better parallelism to ensure the machine runs with high precision
7.With Powerful dust exhaust system on both side, can collect the draff, smoke and dust with high efficiency
Advantage of Plasma Pipe Cutting Machine:
1. The Plasma Pipe Cutting Machine for the air duct is simple and elegant.
2. The cutting system adopts a pneumatic floating height-adjusting device, which is particularly excellent when cutting steel plates with a thickness of less than 5mm. Fundamentally solved the problem of guns caused by high-speed cutting.
3. The frame is welded with steel pipe and treated with aging, vibration to remove internal stress and has good stability.
4. For all kinds of sheet metal blanking, especially the duct sheet metal cutting, the cutting accuracy reaches the excellent index. If equipped with the American Hypertherm plasma power supply, it can reach the lower limit of laser cutting accuracy.
5. The cutting port is small, neat, and there is no crossing phenomenon, avoiding the second trimming process.
6. Suitable for metal plates such as iron plate, aluminum plate, galvanized plate, stainless steel plate, titanium gold plate, etc.
7. Fast cutting speed, high precision, and low cost. A set of plasma nozzle electrodes costs only one dollar.
8. The CNC system has a high configuration, automatic arc starting, stable performance, and the success rate of arc starting is more than 99%.
9. Special software for air duct unfolding and cutting is provided at random, without complicated drawing and calculation. Simply select the corresponding duct type and enter simple parameters to automatically generate a machining program for cutting.
Work process of Plasma Pipe Cutting Machine:
Programming can be directly on the machine or offline editor. Using input cutting parameter selection menu type, such as outside diameter, wall thickness, bevel Angle, deviation, compensation data, and so on. At the same time a seamless connection can be made by other professional software such as STCAD.
(2) Loading and unloading of workpiece
Operator initiator on the machine, the pipe placed in the tray by hoisting tools.
(3) Measurement level
Operators according to pipe diameter deviation with a header hand lever level adjustment.
(4) Pipe locking
With adjustable third claw automatic centering chuck locking pipe diameter.
(5) The open cut
Move the cutting head to the tube cutting, automatic positioning device automatically according to the procedure under a cut, to complete the cutting process and according to the programming.
Plasma Pipe Cutting Machine Application :
Material :Carbon steel , stainless steel ,aluminum
Type :Round pipe
Industry: Especially for steel structure construction, oil & gas pipeline engineering, boils & Vassals, shipbuilding, marine engineering, offshore construction, building walls, bridges, towers and mechanical engineering industries,etc.
Japan Yaskawa Servo motor and Shimpo reducer,X,Z axis ,Push axis 400w,Rotary axis 750w; Pneumatic Cutting Chuck , dual driver , two chucks can work at same time , to confirm cutting precision
3 phase 380V for power source,single phase,220V for machine
X,Y reducer,z ball screw
Repeat positioning accuracy:
File transfer mode:USB interface
File transfer mode:USB interface
