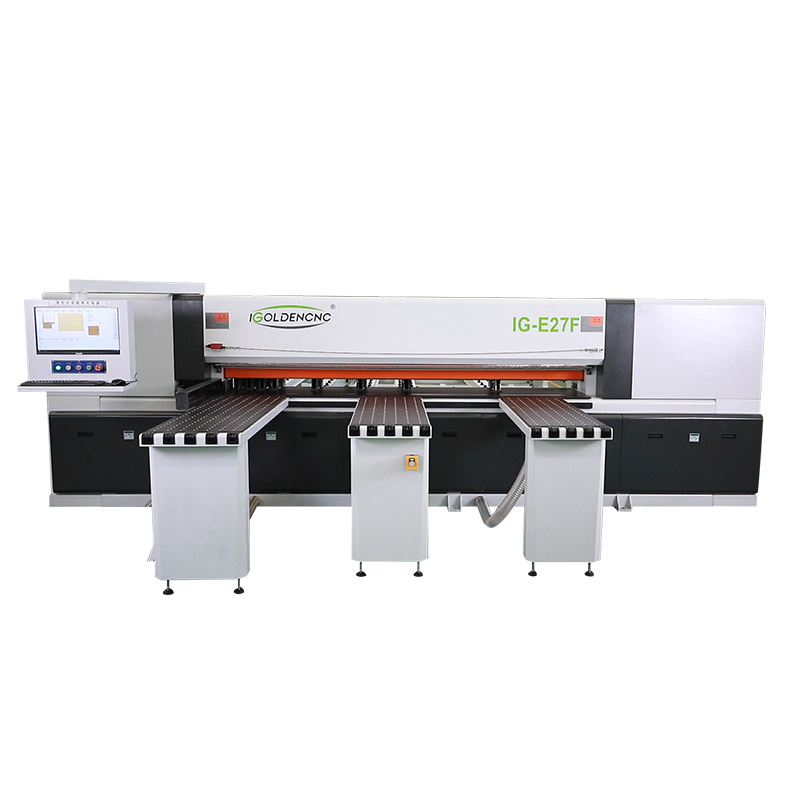

Panel Saw Machine Description:
The electronic cutting saw has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in: precision casting of furniture factories, electrical appliances factories, garment factories, toy factories, hardware factories, etc.
Wood Panel Computer Beam Saw Features:
According to the input plate width, cut the required plate and quickly return to the original working state.
Cutting speed is controlled by frequency converter, which can overcome plates of different thickness and different materials.
The feeding adopts pneumatic floating bead table, and the heavy plate material is easy to change. The robot automatically feeds, has low labor intensity and high production efficiency.
Use imported Delta servo motor to eliminate artificial error and improve dimensional accuracy.
Computer Panel Saw For Cutting Panels Parameters:
| Model | IG-E27 /E27G |
| Sawing length | 2800mm |
| Saw blade height | 100mm |
| Main saw blade diameter | Φ400mm |
| Main saw blade shaft diameter | Φ60mm |
| Main saw blade speed | 3910m/min |
| Slot saw blade diameter | Φ180mm |
| Slot saw blade shaft diameter | Φ30mm |
| Slot saw blade speed | 6500m/min |
| Sawing forward speed | 1-80m/min |
| Main motor | 13KW(Optional 15KW) |
| Sawing retreat speed (promise) | 1-80m/min |
| Saw car drive motor | 1.5KW（AC Servo Motor） |
| Total power | 20KW |
| Automatic feeding speed | 40m/min |
| Working pressure | 5-7kg/cm⊃2; |
| The height of the workbench from the ground | 900mm |
| Net weight | 4500kg/5500kg |
| Machine installation size | 5300*5630*1750mm |
Computer Panel Saw Detail:
 | Air flotation bead table The air cushion table adopts stainless steel balls, which can effectively reduce the friction between the workpiece and the steel balls and protect the plate. |
 | PC control system 1. Easy operation, safety & reliable. 2. Which has complete operating hints and troubleshooting guide functions. 3. It’s cutting plan can edit manually; can simulate or execute cutting plans. |
 | Saw blades Screw lock type saw blade system, stable and easy to replace saw blades. |
 | Feeding gripper Gripe the panel steadily, highly reduce labor intensity, and improve production efficiency. |
 | Sawing motors High precision and smooth operation, Multi-belt drive to ensure sawing accuracy. |
 | Baffle Design Before sawing, the baffle automatically falls down to prevent dust from splashing. |
CNC Computer Beam Panel Saw Machine Application：
This machine can be widely used for precision cutting of MDF, particle board, MDF,gypsum board, artificial stone, plexiglass, large core board, light guide plate, aluminum plate, aluminum plastic plate, circuit board, solid wood plate and other plates. It is suitable for processing all kinds of density board, particle board, ABS board, PVC board, plexiglass board and solid wood plate and other structures with similar hardness.
