iGA-P

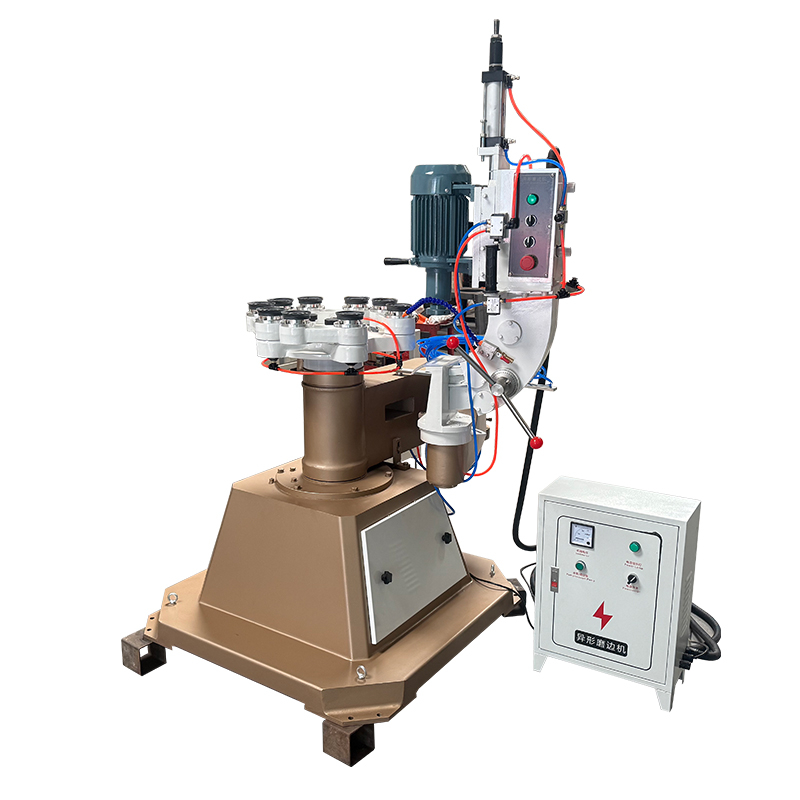

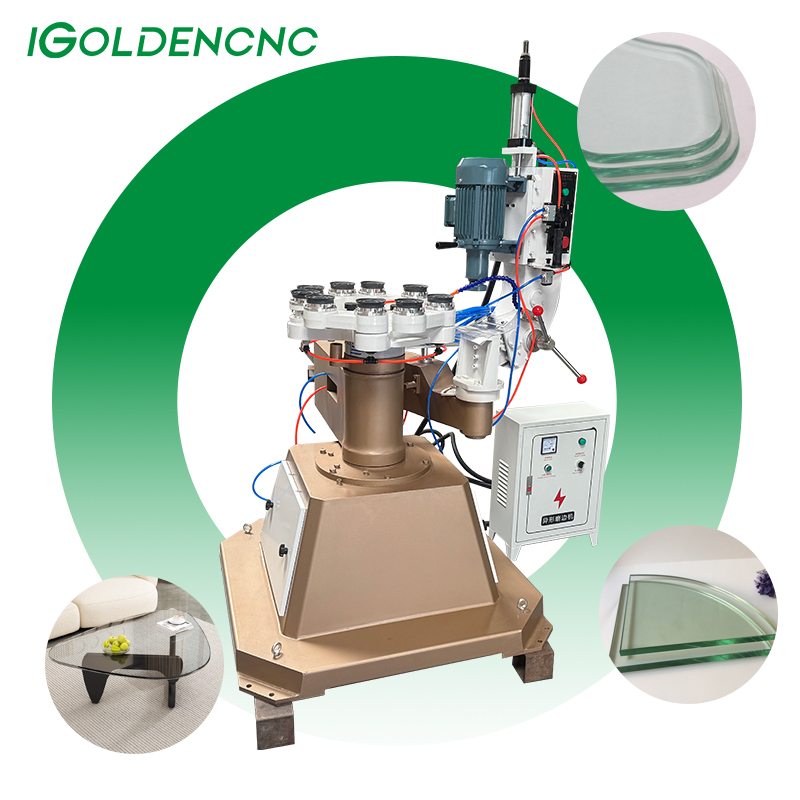

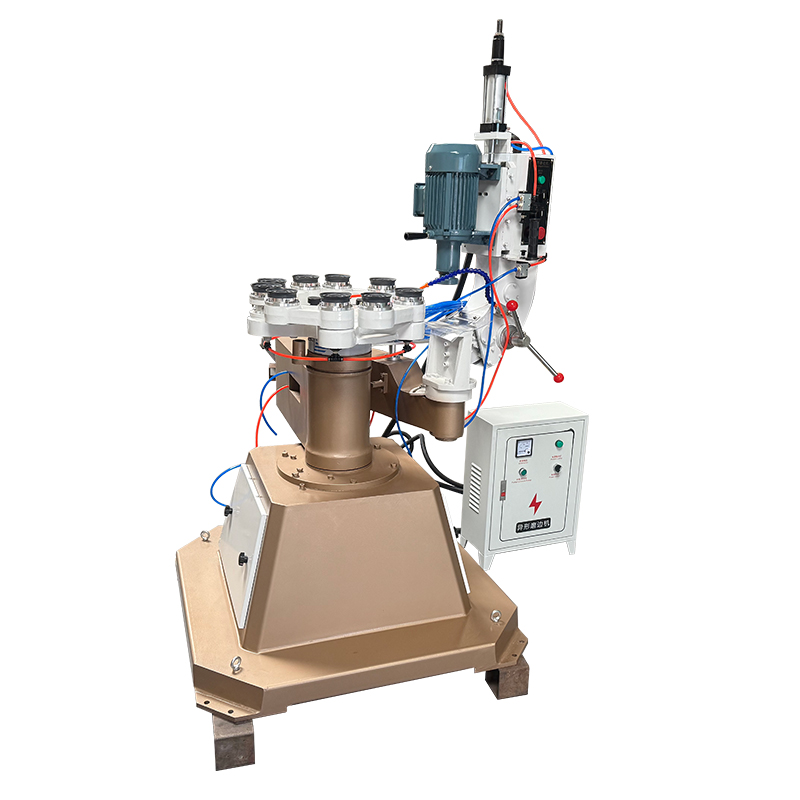

Glass shape edging machine is suitable for processing the special-shaped edges and beveled edges of flat glass. This equipment uses a vacuum to suck the glass on the suction cup, and is equipped with a motor to drive the turntable table or independently drive an independent turntable five-disc on the disk to rotate, so that the machine can process special-shaped flat glass with a rotating diameter of 700-2100mm or 100-700mm. The rotating speed of the turntable can be adjusted arbitrarily during work. This machine can also semi-automatically grind simple shaped specialshaped glass by using the air cylinder. When grinding the edges, three grinding wheels can be installed for rough, fine grinding and polishing. When grinding the bevel, install a bowl-shaped grinding wheel, tilt the grinding head backward, adjust the angle of the bevel, and grind the edge according.
Glass shape edging machine is suitable for processing the special-shaped edges and beveled edges of flat glass. This equipment uses a vacuum to suck the glass on the suction cup, and is equipped with a motor to drive the turntable table or independently drive an independent turntable five-disc on the disk to rotate, so that the machine can process special-shaped flat glass with a rotating diameter of 700-2100mm or 100-700mm. The rotating speed of the turntable can be adjusted arbitrarily during work. This machine can also semi-automatically grind simple shaped specialshaped glass by using the air cylinder. When grinding the edges, three grinding wheels can be installed for rough, fine grinding and polishing. When grinding the bevel, install a bowl-shaped grinding wheel, tilt the grinding head backward, adjust the angle of the bevel, and grind the edge according.
