High Efficiency Four 4 Axis CNC Engraving Machine

Views:2     Author:Site Editor     Publish Time: 2021-05-29      Origin:Site

What Is  4 axis cnc engraving machine?  4 axis cnc engraving machine is based on the ordinary 3 axis CNC machine, adding the fourth axis (rotary axis). In addition, the 4 axis CNC machine is divided into four-axis three-linkage and four-axis four-linkage CNC machine, not to say that the rotation is added, the axis is a four-axis linkage machine, and a CNC system with a rotating axis and a four-axis linkage can be called as a real 4 axis CNC machine.

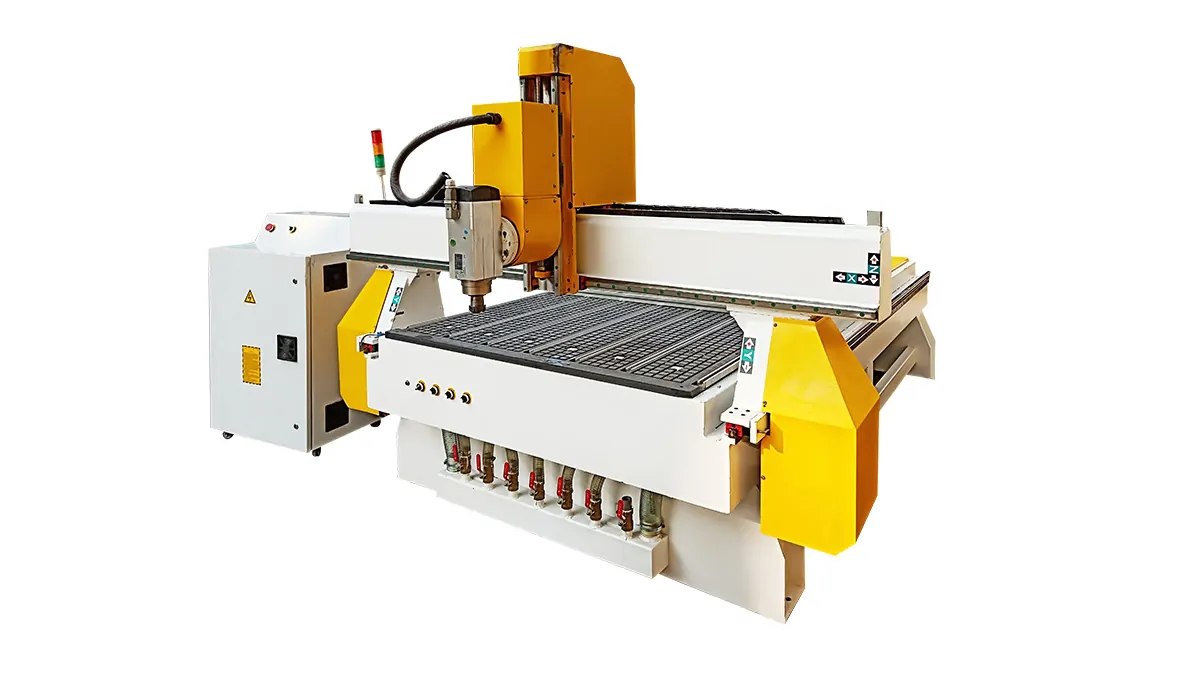

4 Axis CNC Engraving Machine

We use the best quality parts for the CNC routers:

1. The machines’ body is strong, rigid, high precision, reliable and durable.

2. Imported high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision..

3. Using well-known Italian HSD air-cooled spindle, strong cutting ability, to ensure the long time working.

4. High-performance driven motor to ensure that the machines high speed and accuracy

5. Designer perfectly, select the best machine accessories , to minimize the failure rate preferred

6.  Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing


Application & Samples:

1.Materials could be used: Wood, Timber, PMMA, PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble, Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.

2.Widely used in furniture industry(2D & 3D), furniture decoration industry, carpenter decoration, instrument industry, wooden handicraft industry, large plate plane carving, wood furniture carving, density plate  engraving, window and door carving and so on.


Advantages of the  4 axis CNC machine

1. Free samples(I can help you process samples for free.)

2.Advertising/artwork/woodworking

3.CE, SGS,ISO

4.Customized:Yes

5.High sensitivity

6.High efficiency

7. Warranty: 1 year

8.Door-to-door technical service and 24 hours technology online support


Parameter


Description Parameters
Working area 1300*2500*300mm
Table size 2000*3050mm
Transmission X/Y rack and pinion, Z ball screw
Table structure Vacuum Absorption(Optional)
Spindle power 6KW
Spindle speed 18000rpm/min
Travelling speed 50m/min
Working speed 30m/min
Working Delicacy 0.01mm
Repositioning Accuracy 0.01mm
Driving Motor
stepper/Sever motor
Control System
DSP/Nc studio Control System
Command Code G Code
Voltage
3 Phase/380V/50HZ;    3 Phase/220V/50HZ;
Software
Artcam/Type3,other CAD/CAM
