Recommended A 4 Axis Foam Mold Engraving Machine Simple Operation And Affordable

Views:2     Author:Site Editor     Publish Time: 2021-06-09      Origin:Site

This 4 Axis Foam Mold Engraving machine is equipped with double countertop Four-axis machining center and excellent table movement, realizing the function of automatic switching.

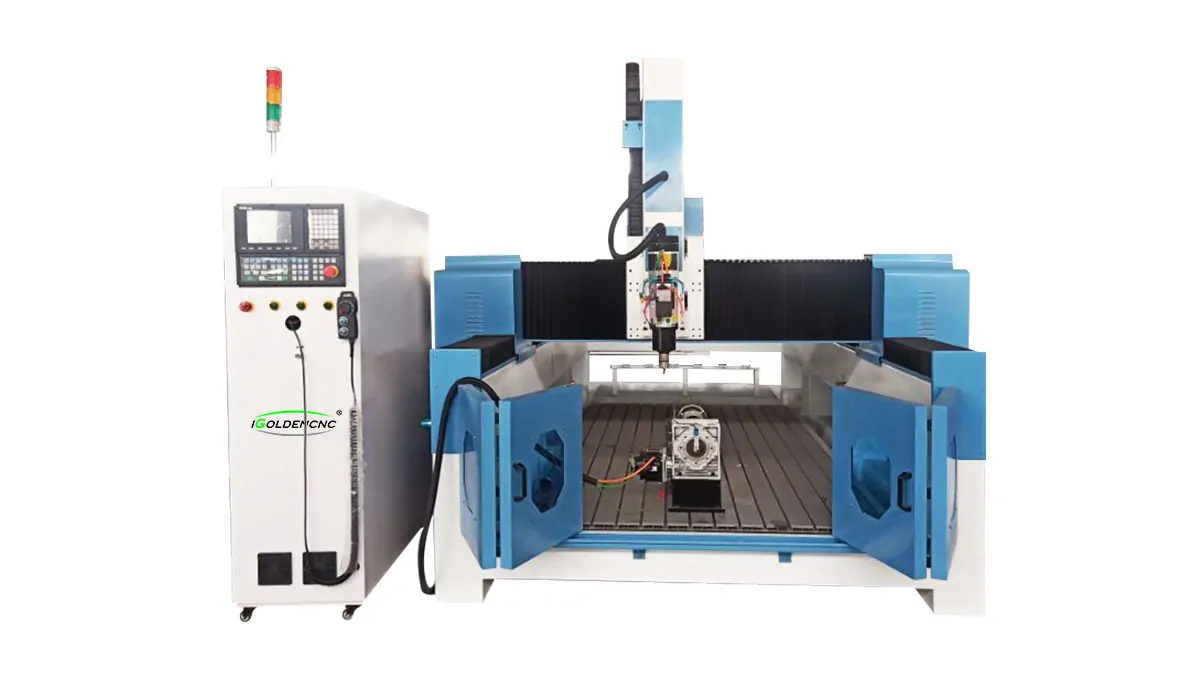

 4 Axis Foam Mold Engraving machine

Applicable materials:

Wood, EPS and non-metallic materials.

1. Mold industries:

Sculpture various large non-metallic mold can be particularly suitable for any kind of

Foam (EPS) mould, wooden ship model, wooden model aviation and other wooden mould.

2. Musical instrument industry: Can carve three dimension musical instrument, contour cutting.


Processing effect:

It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, encasement and so on

3d 4 axis cnc engraving carving router machine for foam mould making

All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.

Heavy duty steel wall structure, keep machine with very good stability.

Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work.

High z axis design, suitable for large scale three dimensional surfaces machining.

With a big rotary device, can process different kinds of 3d sculptures,statues,columns.


Application:

Furniture processing industry, Decoration, Wooden art crafts ,Wooden door, cabinet making

Suitable Materials: Wood , Plastic , Aluminum , acrylic, PVC, Composite panel , MDF, etc

Advantage Feature:

1)integrally cast lathe bed, solid and stable ,high rigidity and high accuracy.

2)Imported high accuracy ball screw ensures more stable movement and high accuracy.

3)water-cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.

4)Excellent parts: Our company uses German ball screw with large load-bearing force, Japan Servo Motor,

Taiwan control system, imported linear guide rail and outstanding stepper system. We also use imported bearing and high efficient Italy HSD Electro spindle. Spindle bearings are high-precision ceramic bearing, low noise and long life.

5)Modularize frame design: select a variety of spindle configuration, can do engraving, hollow carving and milling.

6)Ease of operation: Advanced document pre-processing functions to ensure speed and accuracy of operation.

7)High-adhesion vacuum adsorption unit:230cubic/H

8)Compatible software: Open style software interface. Our software is compatible with TYPE3/ARTCAM/CASTMATE/UG and many other kinds of CAD/CAM software, can change the working file into


The 4 Axis Foam Mold Engraving machine is a CNC carving machine designed for foam processors who are subject to transportation, site restrictions or format restrictions, and is mainly used in the aviation industry, woodworking industry, craft gifts, film and television. 3D sculp

The4 Axis Foam Mold Engraving machine is easy for transport, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router,

Parameters

Description

Parameters

Working area

1500*3000*800mm

Table size

2200x3650mm

Transmission

X/Y rack and pinion, Z ball screw

Table structure

Aluminum profile

Spindle power

HQD 9KW

Spindle speed

18000RPM/MIN

Travelling speed

45m/min

Working speed

30m/min

Working Delicacy

0.02mm

Repositioning Accuracy

0.03mm

Driver motor

Servo motor

Control system

DSP/Nc studio Control System/Syntec

Command Code

G Code*u00*mmg*plt

Voltage

3 Phase/380V/50HZ

Software

Artcam/Type3,other CAD/CAM
