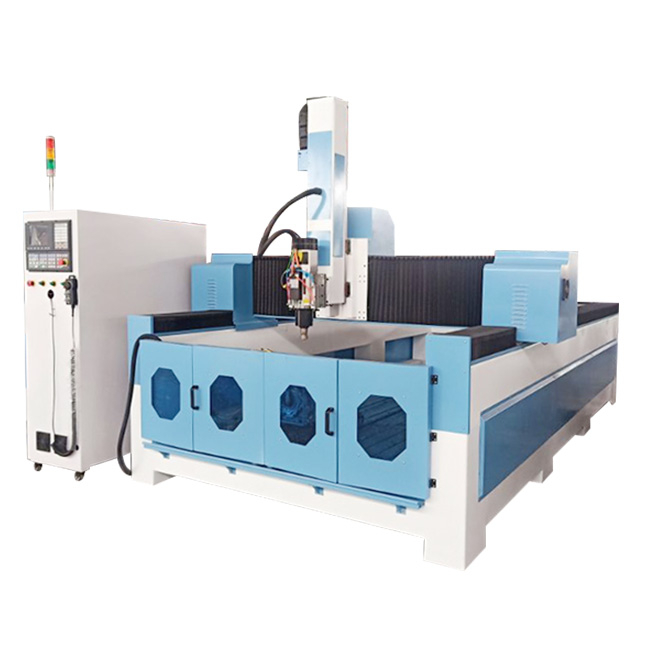

4 Axis Foam Mold Engraving machine

Share to:

4 Axis Foam Cutting Machine with Rotary can engraves all kinds of large nonmetallic moulds: especially automotive foam mould,wooden ships mould, aviation and train wood moulds And wood mould casting, food mould ( such as mooncake mold )and other precision mould making.

Video

Product Description

主图-02

02_副本


1) We use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.

2) The route of Z axis can be heightened to 900mm, so it is suitable for processing large-scale and super-thick material.

3) The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.

4) The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.


Parameters

Description

Parameters

Working area

1500*3000*800mm

Table size

2200x3650mm

Transmission

X/Y rack and pinion, Z ball screw

Table structure

Aluminum profile

Spindle power

HQD 9KW

Spindle speed

18000RPM/MIN

Travelling speed

45m/min

Working speed

30m/min

Working Delicacy

0.02mm

Repositioning Accuracy

0.03mm

Driver motor

Servo motor

Control system

DSP/Nc studio Control System/Syntec

Command Code

G Code*u00*mmg*plt

Voltage

3 Phase/380V/50HZ

Software

Artcam/Type3,other CAD/CAM


保利龙-1018_04


Application

Scope of application


Mold industry: casting mold, automobile, ship, yacht, aviation industry, rail transportation etc.



Musical instruments: large 3D curved surface and shape processing.



Applicable materials: wood, EPS, other non-metal carbon mixed compound, etc.


Company Information

Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.

company


FAQ:


1.What material can the EPS CNC router machine process?

This machine can make foam such as EPS, also can make wood such as MDF, thin-metal such as aluminum, plastic such as acrylic.


2.What travel speed and working speed of the mold making machine ?

Travel speed is 50000mm/min,working speed is 25000mm/min.


3.Can the CNC machine make cylinder engraving with the rotary?

Yes, can add rotary for achieve cylindrical carving as your requirement.


4.Can you test samples and take videos regards my requirement?

Of course ,you can send us design ,we can make sample and take a video for you.
