What’s the advanced features of handheld laser welding machine?

Views: 3     Author: Site Editor     Publish Time: 2022-11-15      Origin: Site

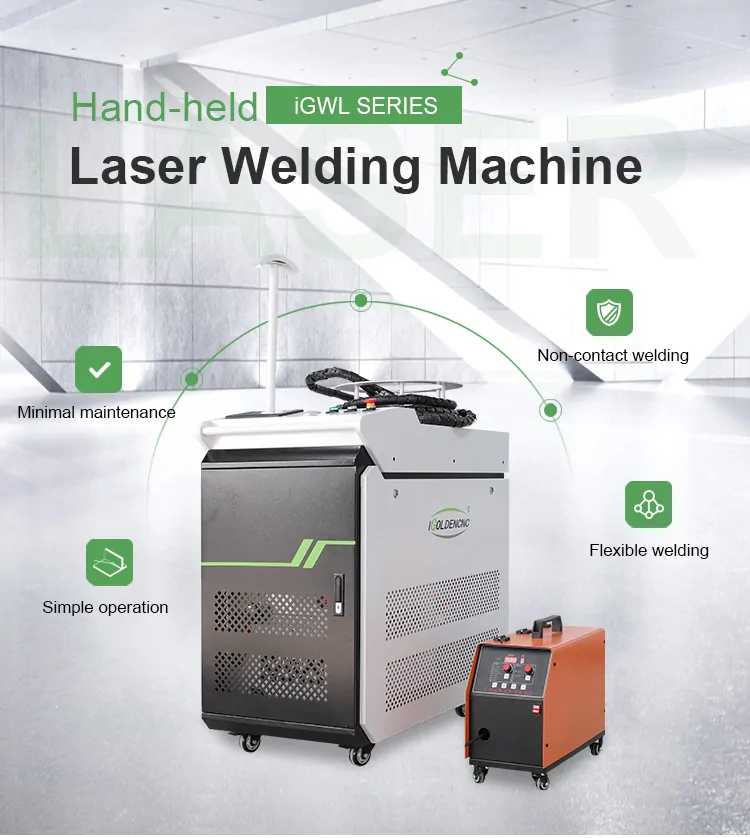

Hand-held laser welding machine, using infrared precise positioning, flexible and convenient, firm welding, no consumables, smooth and fine welding seam and not easy to deform, mainly for laser welding of large workpieces, widely used in large and medium-sized sheet metal, cabinets, chassis.

laser welding machine


Handheld laser welding machine with Wobble welding heads incorporate scanning mirror technology inside a standard weld head.  By oscillating the beam with internal mirrors, the focal spot is no longer static, and can be dynamically adjusted by changing the shape, amplitude, and frequency.


Compared with traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning, and high-frequency ultrasonic cleaning, laser cleaning has obvious advantages.

laser welding machine

1.It is a "green" cleaning method. It does not need to use any chemicals and cleaning fluids. The cleaned waste is basically solid powder, small in size, easy to store, recyclable, and can easily solve the problems caused by chemical cleaning. Environmental Pollution;


2. The traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium adheres to the surface of the object to be cleaned, and cannot be removed, resulting in secondary pollution. Laser cleaning has no grinding And non-contact makes these problems easy to solve;


3. The laser can be transmitted through optical fiber, coordinated with robots and robots to easily realize remote operation, and can clean parts that are not easily reached by traditional methods. This can ensure the safety of personnel when used in some dangerous places;


4. Laser cleaning can remove various types of pollutants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. And it can also selectively clean the contaminants on the surface of the material without damaging the surface of the material;


5. Laser cleaning efficiency is high, saving time;


6. Although the initial investment of laser cleaning system is relatively high, the cleaning system can be used stably for a long time and the operating cost is low.

laser welding machine

Applications of Handheld Laser Welder

Handheld fiber laser welding machine is suitable for stainless steel, carbon steel, silicon steel sheet, copper, aluminum alloy, gold, silver, chromium, nickel, titanium, tantalum and other metals or alloys as well as welding between various dissimilar materials.

It is widely used in the complicated and irregular welding processes of cabinets and kitchens, stair lifts, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, stainless steel furniture, metal sheet metal and other industries. Typical application industries are sheet metal, chassis and water tank, door and window frames, kitchen and bathroom hardware, billboards and advertising metal words, etc.

laser welding machine


Handheld laser welding machine parameter

Item No. iGWL
Laser Wavelength 1070nm
Laser Power 1000w/1500w/2000w
Fiber Type Continuous/ Modulation
Welding Speed 0-120mm/s
Welding Thickness 0.2-6mm
Welding Gap Requirement ≤0.5mm
Laser Output Stability ±2%
Fiber Diameter 100μm
Fiber Length 8-10m (15m optioned)
Spot Diameter Φ0.2mm
Pump Source Semiconductor
Light Beam ≤1.1
Voltage
220V/380V±5%, 50Hz/60Hz
Cooling Method Water-cooling
Water-cooling Temperature 15-35℃


Handheld Laser Welding Machine Price

Hand-held laser welding machine, using infrared precise positioning, flexible and convenient, firm welding, no consumables, smooth and fine welding seam and not easy to deform, mainly for laser welding of large workpieces, widely used in large and medium-sized sheet metal, cabinets, chassis.


Laser Output Power Price Range Laser Type
1000w/ 1500w/ 2000w $6000-$15000 Continuous/ Modulation


iGWL is the best handheld laser welding machine with fiber laser. It helps manufacturers overcome common laser welding challenges. From welding highly reflective metals such as aluminum and copper, to welding dissimilar metals, linear joint pattern to circular joint pattern, autogenous welding to additive welding, this welding head is up for the challenge. It helps compensate for gap variation and other joint-geometry challenges and inconsistencies.


IGOLDEN Handheld Fiber Laser Welding Machine, also called Handheld Fiber Laser Welder, Portable Fiber Laser Welding Machine, Manual Fiber Laser Welding Machine, is a new type high-power, high-end continuous welding tool that couples a high-energy laser beam into an optical fiber, collimates it into parallel light through a collimating lens after long-distance transmission, and then focuses on the workpiece for welding.


The handheld laser welding machines for metals, equipped either with an independently developed wobble welding head or a common welding head, greatly improving the joint strength and quality of welding and obtaining better weld formability. All products realize spot welding, straight seam welding, overlap welding, circumferential welding and welding of any track. And you can also add welding wire. Compared with traditional argon arc welding, the efficiency is increased by more than 50%.


Replacing the old thermal welding systems with a hand-held type weld gun, not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, the welding ability expands from small light workpieces to large bulky objects that are difficult to move, such as stainless steel silos, stainless steel spiral air ducts, chimney pipes, auto steel pig feeders, almost no size limitations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will definitively be replaced by fiber laser welding.
