Along with the development of fiber laser source , hand-held laser welding machine was widely used and changed the industrial welding market by making it much simple for different angle and welding processing like tailored welding ,overlap welding ,T-profile welding ，Internal/external corner welding and wire feefer .it could completely replace the application of traditional arc welder and electric welder technology in thin stainless steel ,iron sheet, aluminum plate and other metal sheet.
★High energy density, low heat input, small amount of thermal deformation, and narrow melting depth in the heat and heat affected zone of the melting zone.
★The cooling rate is high, so that the weld structure can be fine and the joint performance is good.
★ Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly improving work efficiency.
★The weld is fine, the penetration is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
★ No consumables, small size, flexible processing, low operating and maintenance costs
★The laser is transmitted through the optical fiber and can work with the assembly line or the robot.
hand-held laser welding machine Advantages
High Efficiency
Beautiful welding seam, no need polishing
Small heat input, small thermal deformation
High welding strength: higher than the base material
Lightweight design

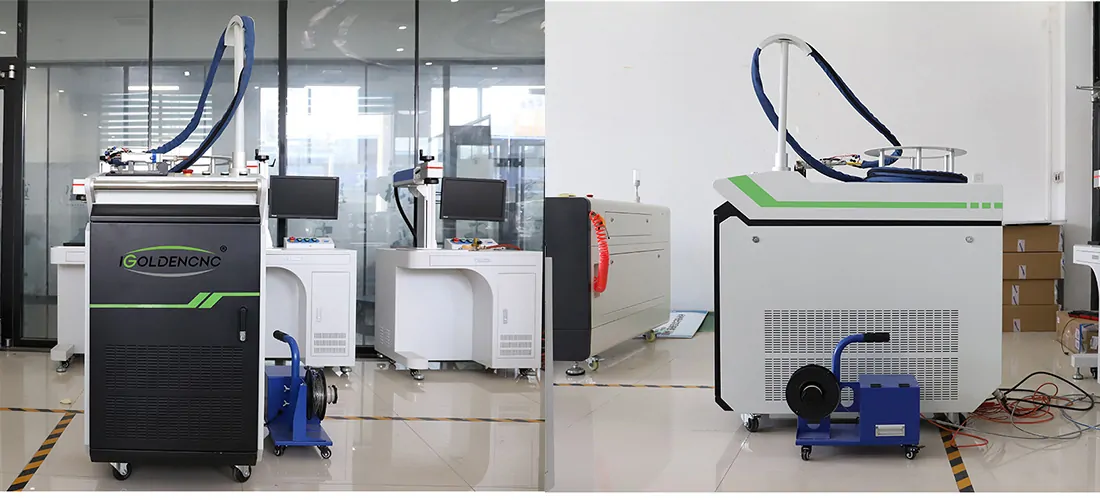

Portable Mainframe
Laser source and chiller are integrated into one machine, easy to move
Upper and lower layer design for heat source isolation, ensuring working environment of laser source
Easy to dismount and maintain
hand-held laser welding machine application Field
Continuous fiber laser welding machine is suitable for various kind of metal workpiece welding, it is versatile and suitable for the welding of metal connectors, mobile phone accessories (medium plate, nut), power battery, hardware, kitchen and bathroom electrical equipment, automotive parts structural parts, medical equipment, precision parts etc. It is mainly used for continuous welding of various metal sheets like copper, aluminum, titanium, stainless steel, low carbon steel, etc.
laser welding machine Parameters
| Laser Power | 1000W/ 1500W/ 2000W |
| Laser Wavelength | 1070NM |
| Fiber Length | Standard 8-10M supports up to 15M |
| Way of Working | Continuous/ Modulation |
| Speed Range of Welding Machine | 0-120mm/s |
| Cooling Water Machine | Industrial Constant Temperature Water Tank |
| Working Environment Temperature Range | 15~35°c |
| Recommended Welding Thickness | 0.5~5mm |
| Welding gap requirments | ≤0.5mm |
| Operating Voltage | AV 220V |
