Mini CNC Router Machine

Views: 21     Author: Site Editor     Publish Time: 2021-07-29      Origin: Site

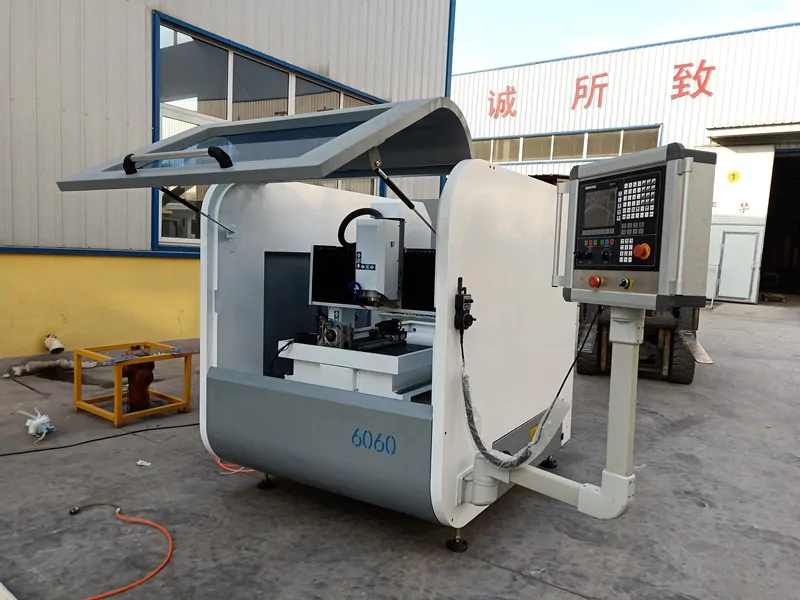

A mini CNC router machine is a small-sized computer-controlled cutting machine used for woodworking, plastic fabrication, and metalworking. It uses a computer-controlled spindle to cut materials into precise shapes and sizes. Mini CNC routers are usually compact and portable, making them ideal for small workshops or hobbyists.IMG20181103150720


Mini CNC routers consist of a cutting bed, a spindle motor, and a computerized control system. The cutting bed is where the workpiece is placed, and it can be made of materials like aluminum, steel, or wood. The spindle motor holds the cutting tool and rotates to cut the material. The control system is where the user inputs the design instructions into the machine through computer software.


Mini CNC routers can cut a wide variety of materials, including wood, plastics, and non-ferrous metals like aluminum and brass. They can be used to cut intricate shapes and designs with high precision, making them popular among hobbyists and small-scale manufacturers.


Some mini CNC router machines come with additional features such as automatic tool changers, vacuum tables for holding down the workpiece, and dust collection systems to keep the work area clean.


Nowadays, most of the metal cutting cnc router on the market have the function of one machine and dual purpose, that is, it can engrave and cut products such aluminum plate, iron and other metals.The effect is very real. Due to the use of vacuum adsorption tabletop technology, materials of different areas can be adsorbed efficiently, and with the help of high-power imported electromechanical devices, it can work continuously for 12 hours a day, and the work efficiency is extremely high.CNC metal cut machining is a manufacturing process that involves using high speed, computer-controlled, precision machines to remove plastic or metal from a blank, a block of metal or plastic, to create a part. The process is subtractive, meaning the machine removes material from the blank to reveal the final part.


6060排刀-带外罩_05

Features of cnc metal router:

1. X YZ use Hiwin square rails. Top precision, it makes machine working very stable.

2. Aluminium casting whole body won't transform for long use.

3. Table move design make machine more precise. (aluminum casting table with T slot)

4. mach3 controller with usb port. you can use your laptop to control machine.


Advantages of cnc metal router:

1)Break point memory is used to ensure that it can be machined accidentally (broken knife) or every other day.

2)Well compatibility: CAD/DAM designing software such as Type3/ARTCAM/Ucancam etc.are optional.

3)The sculpture is finely serrated, smooth and clear.

4)The unique method of storing the origin of multiple workpieces.


Detail description of metal cutting machine:

1.Double heads: water cooling spindle and plasma cutting head.

2.Control system: Startfire controller for plasma cutter and Mach3 controller for cnc router.

3.Double tables. Machine is sawtooth table combine T-slot table. Surface T-slot table is removable. so when do plasma metal cut job won't hurt CNC part.

4.Control box: Shanghai Fuling inverter, Stepper motor and Leadshine drivers, Huayua power supply.


Application of Detail description of metal cutting machine:

6060 series has strong function with good performance, easy to use, solid and durable. It is applied extensively in advertising,acrylic, brass, Wood, Plastic, Aluminium, Di-Bond, Engraving Board, Fomex. Engineering plastics, marble, acrylic, perspex, PVC,Composite panel, Copper, Alloys, MDF, etc.


Small CNC Wood Carving Machine Parameter:

Working area

600*600*250mm

Spindle

3kw ATC water cooling spindle-ISO25

System

NK280 control system

Servo

japan yaskawa servo motor 850w

Rails

Taiwan hiwin 25mm square rails

Screw

Taiwan TBI ball screw

Scope of application
