iGW-ATC
iGOLDENCNC
iGW-ATC 2030
Availability: | |
---|---|

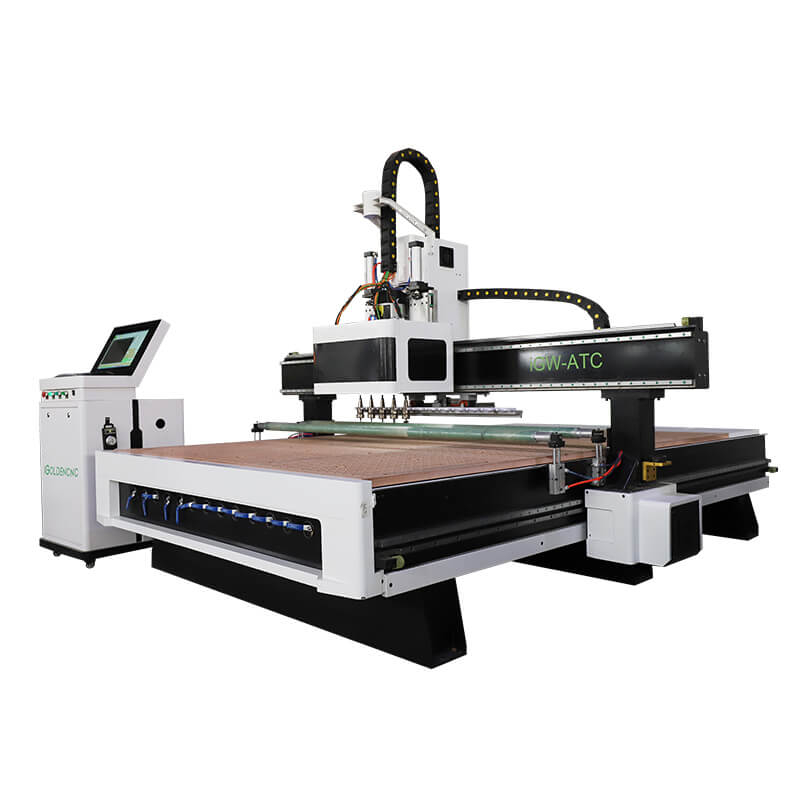

CNC Machine with Oscillating Knife
The vibrating knife and engraving machine is a kind of engraving machine and vibrating knives CNC machine. It is a kind of advertising engraving machine. This machine is effective in processing the size of 1300×2500×200mm and adopts a suction clamp integrated vacuum adsorption table.Equipped with oscillating knives, it can process soft materials such as PVC, KT, leather, and fabric. Therefore, with the advantages of multiple functions, cost-effective, it is suitable for a variety of processing needs of production.
CNC Oscillating Knife Cutting Machine is a Gantry Moving CNC machine with CNC Oscillating Knife and ATC CNC Router. It has wide usage of soft material cutting and wood cutting and carvings, such as MDF, hardwood, cotton material, rubber plate, etc. the CNC knife cutting makes no smoke and heat, is a safe cutting method.
Auto tool Changer CNC router machine is with a 10 positions automatic tool changer which provides an easy and convenient method of running jobs requiring multiple routing tools.
Using linear guide rails to ensure the machine’s positioning accuracy and can withstand larger loads.
Oscillating knife: Especially suitable for cutting flexible material PVC, KT board, thick foam, aluminum-plastic board, polypropylene hollow board, footpad, leather.
V-cut tool: Using the V-Cut tool, the grooves can be adjusted to specific cutting requirements. Available angles are 0°, 15°, 22.5°, 30°, 45°. Industrial CNC cutters are mainly used for V-groove production of thicker carton board materials such as honeycomb board, cardboard, corrugated board, gray board, etc.
Model | iGW-ATC-2030 |
Working area | 2030*3100*200mm |
Machine Body | T-type Welding Structure |
Gantry | Steel Structure |
Worktable | Vacuum Suction with T-slot Table |
Spindle | HQD 9.0kw Air Cooling Spindle |
Tool changer | 12 straight line change knives |
Custom Configuration | Press wheel, vibrating knife and inclined knife |
Speed Speed | 18000rpm |
Guide Rails | Taiwan HIWIN |
Ball Screw | Taiwan xinyue |
Driver | DORAN Servo Drive and Motor |
Reducer | Japan SHIMPO |
Inverter | Fuling |
Electrical Components | France SCHNEIDER |
Vacuum pump | 7.5kw |
Control System | XDW system |
Working Voltage | 380V/50Hz |
Adding vibrator and miter cutter configurations increases the versatility of the machine.
Vibration knife is suitable for cutting soft materials of medium density,its high frequency vibration can ensure the cutting tool at high speed, improve the yield.
The miter can be used for 45 degree miter cutting to form a 45 degree Angle,which can meet different processing functions of customers.
• Vacuum Suction with T-slot Table
12 knives in straight line change knife library
XDW control system, Easy to operate.
Add the pressing wheel device, make the processing plate more smooth and stable.
Cutting Industry: Leather, PU, PVC, Oxford cloth, corrugated paper, KT board, and other materials so on.
Advertising Industry: suitable for advertising words, billboard cutting, signage, architectural models, house numbers, signs, craft decoration, furniture decoration, etc.
Woodworking Industry: mainly suitable for sheet metal plane, mahogany classical furniture and antique furniture carving processing, wood carving craft, gift wooden box, fine carving, and so on.
