ATC CNC Router Machine Description:
The ATC CNC router machine is equipped with a 9.0kw air-cooled spindle, and disc tool change. Usually used in conjunction with labelling machines and automatic loading and unloading platforms.
ATC CNC Wood Cutting Machine Features:
1. The machines' body is strong, rigid, high precision, reliable and durable.
2. TBI high-precision ball screw gap, smooth movement, to ensure that the machine tools high-precision.
3. Using HQD Air-cooled spindle, low noise, strong cutting ability, to ensure the long time working.
4. High-performance driven motor to ensure that the machines high speed and accuracy.
5. Breakpoint specific memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
6. Compatibility, compatible Type3/ Artcam/ Castmate/, and so on a variety of CAD/CAM design software.
Best Wooden Cutting Board Advantages:
▄ The quality of every BCAM Linear ATC CNC router is excellent. Every BCAM C series CNC router carries a full year warranty and our great technical team support! You will find out many advantages after you have used our CNC router. If you are a small and middle shop our CNC router is a best choice for you. Our goal is offer you more and cost you less!
▄ High-performance all-round machinery with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.
▄ An ATC reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC allows the BCAMCNC Router to do the full job, even when different tooling is required to make different types of cuts - like cabinets and furniture - or where different bits are needed for roughing and finishing passes - like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.
Wood Board Cutting CNC Router Machine Parameter:
| Structure | Seamless steel welded , quenching treatment and milling |
| Table | Vacuum table structure |
| XYZ working size | 2000*6000*200mm |
| XYZ transmission | XY axis is Taiwan helical rack and gear, Z axis is Taiwan Ball Screw |
| XYZ guide rail | Hiwin Line 30mm Square guide way |
| Spindle | 9kw ATC Italy HSD brand spindle |
| Spindle collet | ER32 |
| Inverter | Well known Delta brand |
| Motor | YASKAWA Servo 850W |
| Driver | YASKAWA Servo |
| Reducer | Shimpo |
| Controller system | Taiwan Syntec 6MB Control system |
| Voltage | 380v, 50/60HZ |
| Software | Artcam |
| Tools magazine | Disk 12 tools |
| Dust collector | 5.5KW double bags dust collector |
| Lubrication | Automatic lubrication |
| Tool sensor | Automatic |
| Vacuum pump | 3 sets |
| Air cylinder position | 3+4 |

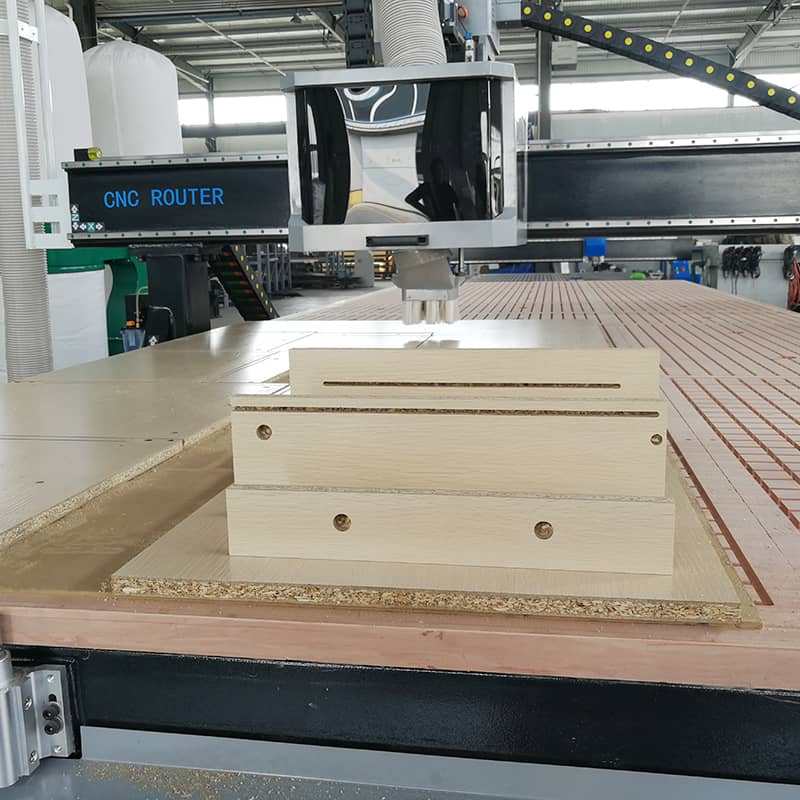

Best Wooden Cutting Board Detail
The Sample
Wooden Cutting Board Atc Appliation:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
