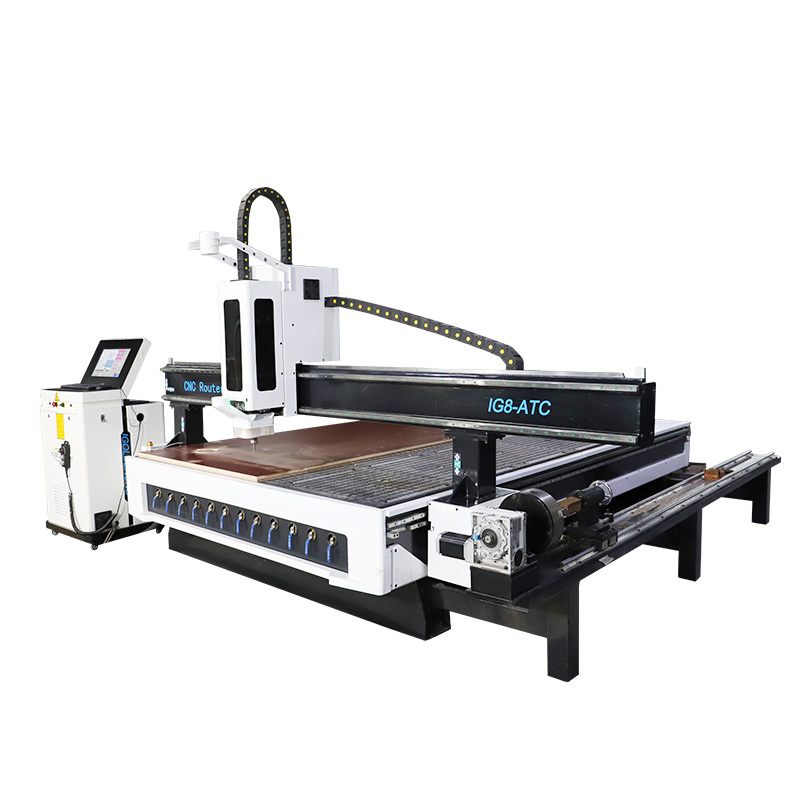

4 Axis CNC Wood Engraving Machine Description:
The best 4 axis CNC wood engraving machine, the spindle can swing 180 degree, 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale engraving without dead angles, and can complete curved surface processing,
2130 ATC CNC Router With Rotary Axis Features
1. Sturdy steel structure, good rigidity, no deformation, and durable.
2. High precision, suitable for handicraft advertising industry.
3. Design: The interface adopts the international standard G code command, which is compatible with domestic and foreign engraving, and the operation is simple. High quality, reasonable price and economical.
4. High-speed driver and stepper motor can improve work efficiency
4 Axis ATC CNC Machine Parameter:
| Model | 2130 ATC CNC Router with rotary axis |
| Working area | 2100*3000*200mm |
| Spindle | HQD 9KW air cooling spindle |
| Inverter | Fuling |
| Motor | Dorna Ac servo motor |
| Driver | Dorna AC driver |
| Control System | Taiwan LNC 4axis + hand-wheel |
| Table | Vacuum & T-slot table with air cooling pump |
| Oil lubrication | Automatic lubrication |
| Limit | Omron limit |
| Transmission | XY axis helical rack Z axis Taiwan ball screw |
| Rail | X, Y, Z axis Taiwan HIWIN 25 Square guide rail |
| Screw | Z axis TBI 3210 ball screw |
| Bed | Thick steel welded big square tube |
| Repositioned Accuracy | ±0.02mm |
| Travelling Position Accuracy | ±0.02mm |
| Gangry | Strong frame |
| Cabinet | Independent cabinet |
| Voltage | 3 phase/380V |
| Rotary axis | With |
| Tools | 10 pieces |
| Oil misting system | With |
4 Axis ATC CNC Router Engraving Machine Rotary Details:
4 Axis CNC Router 2130 Details:
Rotary Spindle 4 Axis ATC CNC Machine Application
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
