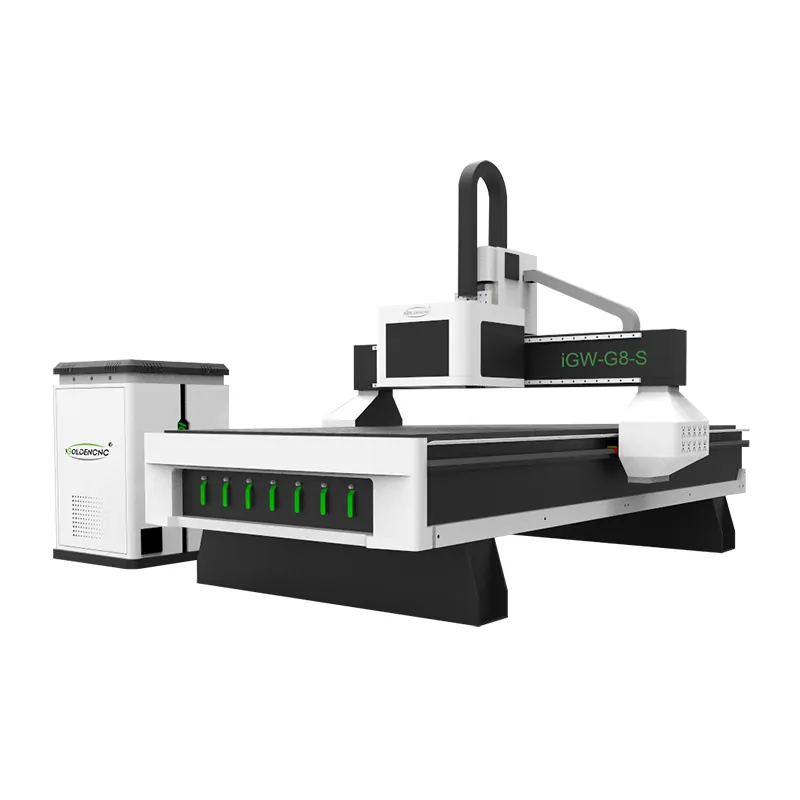

CNC wood engraving machine , used in Sign making and light wood industry. It can provide a high precision 3D engraving. And it is a proven router in plastic and PE material processing which need a very high precision.

CNC carving design spindle stall

1.Spindle internal short circuit;

2. Shielding current; 3 inverter parameter setting error or failure; control card failure; the short circuit of the main axis or data lines.

◆ engraving machine spindle rotation does not sound normal

Drive set wrong; spindle does not turn; spindle itself (bearing damage).

◆ engraving machine around or back to the mechanical origin in the opposite direction

(1) change the file in Notepad; modify the wiring of the inverter;. Weihong software, modify the motor direction.

◆ cnc carving design machine does not return to the mechanical origin

In the opposite direction; 2. Control card failure or loosening; limit switch or data line failure; 4. Drive failure; 5 stepper motor failure.

CNC carving design features:

1) The lathe bed was cast steel square tube welding body, strong and without distortion.

2) Heavy-duty structure in "Trapezoid" type, and big Gantry bracket.

3) Vacuum absorption table was adding, it can absorp the wooden materials closely.

Guarantee the working-efficiency.

4) Vacuum pump system with six zones, total power 5.5KW.

5) Auto-oiling system. Extra time can be saved.

6) High power spindle 4.5KW/5.5KW/6KW/9KW, brushless, water-cooling/air-cooling, working vigorously with low noise.

7) Type3/Artcam/Ucancam/JD Paint/Coreldraw these related working software.

The main application field of industry:

This Assessed Supplier 3d carving machine wooden working cnc router machine are designed for sculpture wood. It can meet the requirements of a variety of relief carvings.This series  multi head cnc router  are designed with 3D enbossment engraving particular for redwood,classical furniture,high precision,high speed,can satisfy any kinds of engraving work.

Technological development

The progression of CNC technology has been radical, particularly when it comes to travel speeds and positional accuracy. Automated toolchange options and features for automated operation and software integration have also excelled. Recent developments in machine features mean that customers can now purchase a cost-effective, tailor-made machine, configured to suit their exact needs and expectations, faster than ever before.

Routers are available in a range of sizes, from small desktop machines to industrial machines capable of quickly processing very large and thick materials, making them a time-efficient and cost-effective solution to accurately processing materials.

Industry applications include signmaking, furnituremaking, education, aerospace, automotive, electronics, engineering, set design and exhibitions.
