Views: 14 Author: Site Editor Publish Time: 2022-04-24 Origin: Site
The 100w laser engraver has steadily risen in popularity since its invention in the ’70s. The laser engraving industry as a whole witnessed significant growth with the development of the CO2 Laser Engraver While these machines perform advanced engraving and marking commands at the push of a button, they do require maintenance to keep them working precisely. By keeping your machine in top condition, you are increasing both its lifespan and overall productivity. Consequently, the possibilities are endless with your craft and machine.
This post provides details for routine maintenance and winter maintenance of your co2 laser cutting and engraving machine. Those are important matters you should notice when operating such a laser tool. Follow these steps to maintain your laser cutter in a proper way to extend the stability and service life of the tool.
1. The change of water and water tank cleaning (recommend clean water tank and replace circulating the water once a week)
Clean water tank: first, turn the power off and remove water inlet pipe, let the laser tube of water into the tank automatically, open the water tank, pump and clear the dirt on the water pump. Good clean water tank clean, replace the circulating water, the water pump to restore back into the water tank, the connection pipe inserted into the inlet of the pump, tidy up the joint. The pump power alone, and run 2 to 3 minutes (the laser tube is full of circulating water).
2. The cleanness of the fan
After long time use, it can make the fan inside the accumulation of a lot of solid dust, let the fan make a big noise, in addition to flavor and is unfavorable to the exhaust. When appear insufficient suction fan smoke not free, turn off the power supply first, will be discharged into the duct and the duct on the fan, remove the inside of the dust, and then put the fan on, and pull out the inside of the blades, until clean, then put the fan installed.
3. The lens cleaning (advice before work every day, clean equipment was turned off)
Lenses can easily touch dirt or other contaminants, cause loss or damage of lens of laser, no. 1 and no. 2 don’t must be removed, while the lens cleaning need to dip in cleaning fluid to clean lens paper carefully wipe up along one edge of the lens central to rotary. No. 3, lens and focus lens from the frame, in the same way, to wipe, wipe after the completion of the same back then.
A CO2 laser cutting machine basically consists of a laser, light guide system, CNC system, cutting torch, console, gas source, water source, and exhaust system with 0. 5-3kW output power.

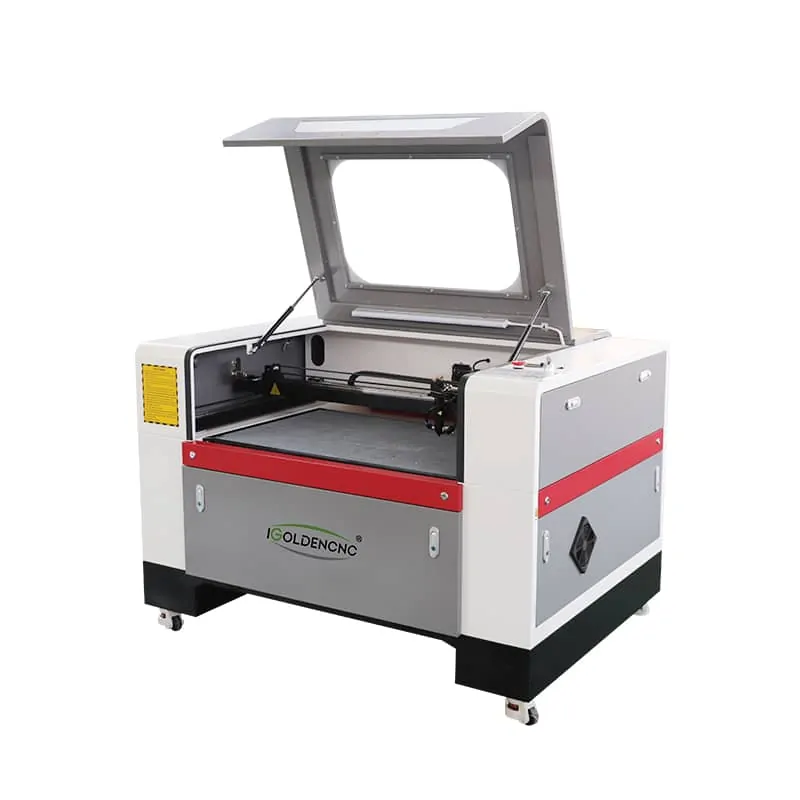

Features & Benefits of 100w laser engraver
Super High Speed Engraving
The Monport 80W engraving speed (up to 800 mm/s) offers you more efficiency.
High Resolution And High Accuracy
Resolution up to 4500 dpi; LED headlights under the lid give point illumination for precision; 2.0" Focal distance provides higher resolution and etching of extremely small fonts; Built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.
Smart And Upgraded Ruida Digital Controller
Controller like a brain, conducting the laser head, adjusting laser power and speed settings, file viewing, project framing and works well with laser software like RDWorks, Coreldraw, Auto-CAD and Lightburn.
2 USB & Ethernet Ports
2 USB ports allow more options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.
Autofocus:
Use the control panel to correct the focus automatically at the touch of a button-No more manual testing and adjustment.
Viewing Window
Equipped with a transparent acrylic viewing window, it allows you to observe the laser engraving and cutting state. Plus, the dark sepia color protects you from indirect laser beam exposure.
Red Dot Guidance
The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
Smart Safety Sensor
The safety shutdown sensor helps stop the machine when opening the transparent window cover. Once closed, press the “Enter” button to continue operation.
