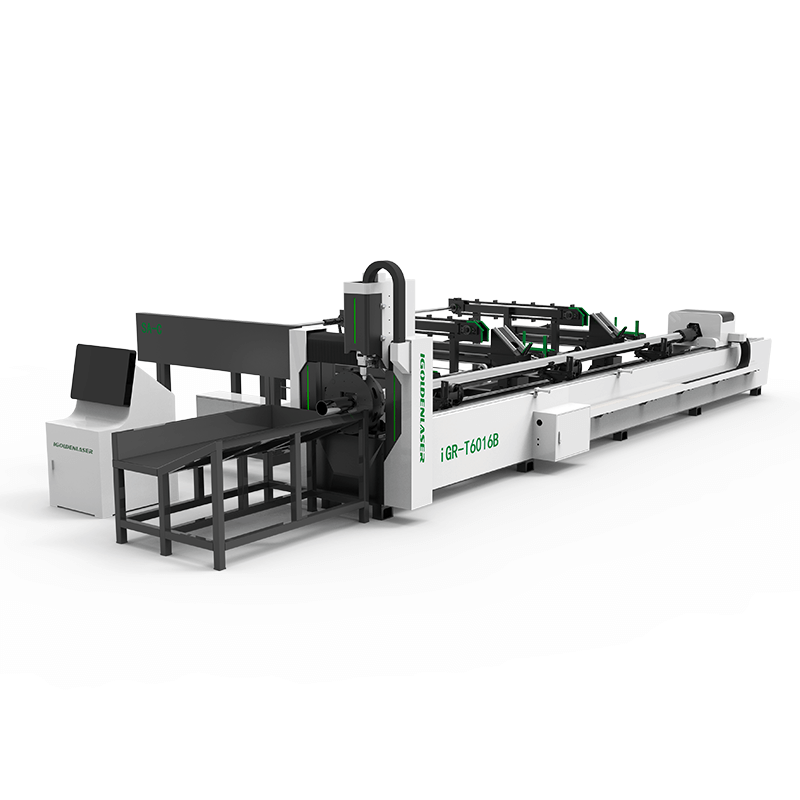

iGR-T6016B
iGOLDENCNC

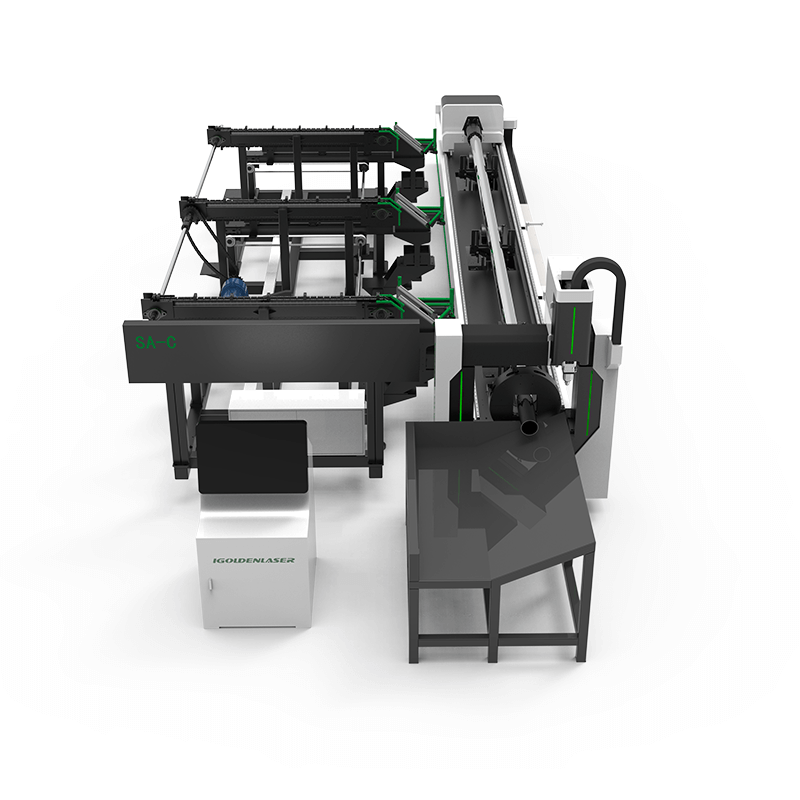

T6016B-SA-C

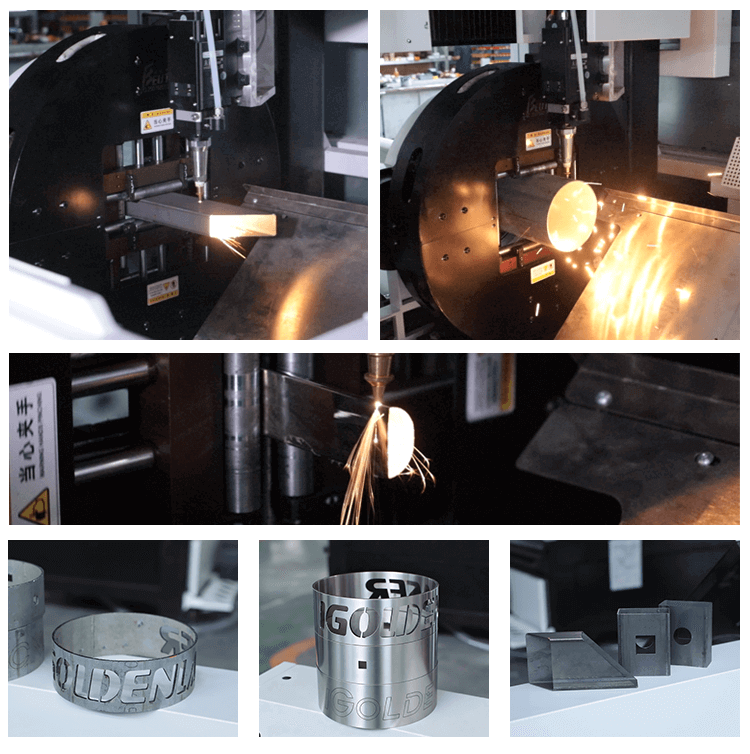

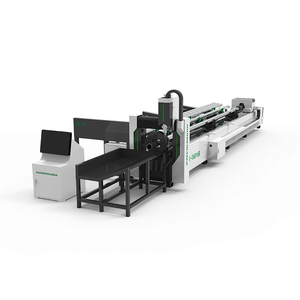

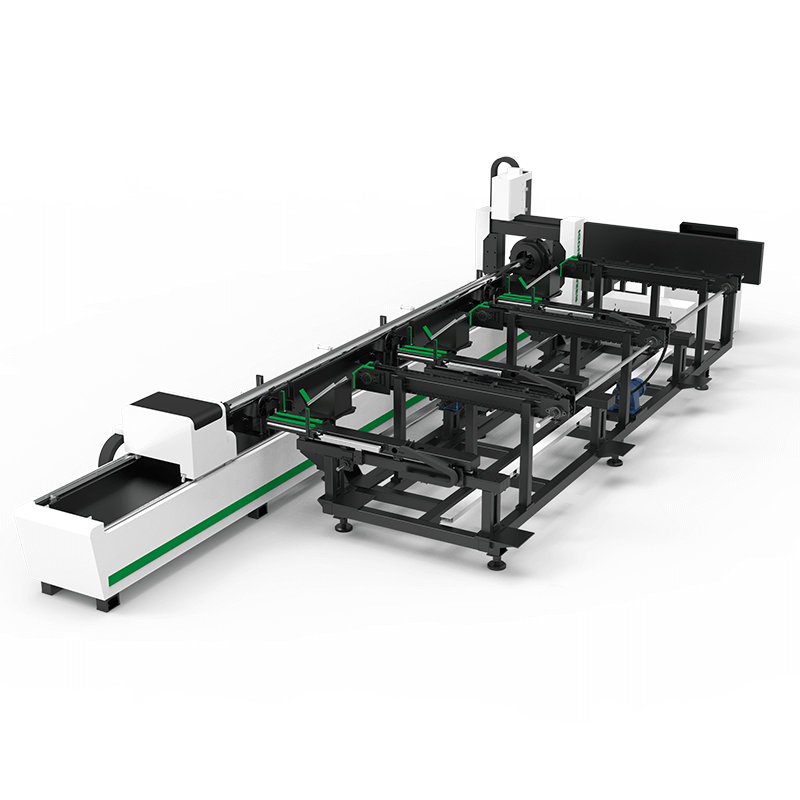

Fiber Laser Tube Cutting Machine Description:
The tube laser cutting machine is specially designed for metal tube cutting and equipped with a semi-automatic chain type feeding device. It is applicable to all types of tubes and profiles (including special-shaped tubes, I-beams, asymmetric section profiles, etc.), featuring a wide application range, stable power and high universality. It is fitted with a professional cutting operation system that boasts simple operation, high precision, professional performance and stable running. Ideal for professional profile cutting, this machine is widely used in industries such as sports equipment, petroleum pipelines and chemical equipment.
Optional laser power 1500W-6000W; Optional countertop 6012/6016/6024.
Hot applications is cutting for stainless steel, carbon steel, aluminum, copper, galvanized sheet and other metal plate.
1. High Rigidity Precision Engineered Structure
Ø Adopts an integrated welded bed, which undergoes stress relief annealing and precision machining by gantry milling, featuring high rigidity and minimal deformation.
Ø The transmission system is equipped with Taiwan HIWIN linear guides and YYC racks, ensuring stable high-speed operation, zero backlash, and accurate positioning (repeat positioning accuracy: ±0.03mm).
2. Intelligent Self-Centering Clamping
Ø Equipped with a pneumatic deviation-correcting chuck, which can automatically clamp and align the center of various profiles such as round pipes, square pipes, and channel steel.
Ø The control system supports automatic centering for special profiles like angle steel and I-beams, improving the processing accuracy and efficiency of complex materials.
3. High-Efficiency Laser Optical System
Ø Adopts an auto-focus cutting head with an optimized optical structure, increasing air cutting efficiency by 10%-40% compared with conventional models.
Ø Integrated with MAX laser from MAX Photonics, it features compact size and low energy consumption (saves about 25% power), and delivers excellent cutting performance for both thin and thick plates.
4. Intelligent Control System
Ø Comes with a one-click pipe end alignment function, which automatically identifies the pipe end, reducing manual tool setting and material waste.
Ø Integrates a multi-axis servo system and process database, enabling intuitive operation and convenient debugging.
5. Flexible Customization & Comprehensive Services
Ø Offers two optional semi-automatic feeding racks: inclined unloading type (suitable for square pipes, round pipes, and channel steel) and chain drive type (suitable for all pipe types and special profiles).
Ø Customization is available according to customer requirements.
Laser Pipe Cutter Parameter Configuration:
| Name | Manufacturer/Brand |
| Laser | MAX |
| Cutting head | RAYTOOLS |
| Bed | Pipe welding |
| Beam | Steel beam |
| Rack | YYC |
| Guide rail | TAIWAN HIWIN |
| Reduction | SHIMPO |
| Control cabinet | iGOLDENLASER |
| Servo motor | HC Servo Motor |
| Control system | RAYTOOLS |
| Water chiller | Hanli/S&A |
| Pipe Uncoiler | 2m Material Uncoiler |
| Air Compressor (Optional) | 15KW16KG |
| Loading Rack (Optional) | Chain Drive Semi-Automatic Feeding （Optional slope blanking type semi-automatic feeding rack） |
Fiber laser pipe cutting machine is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber laser pipe cutter is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
