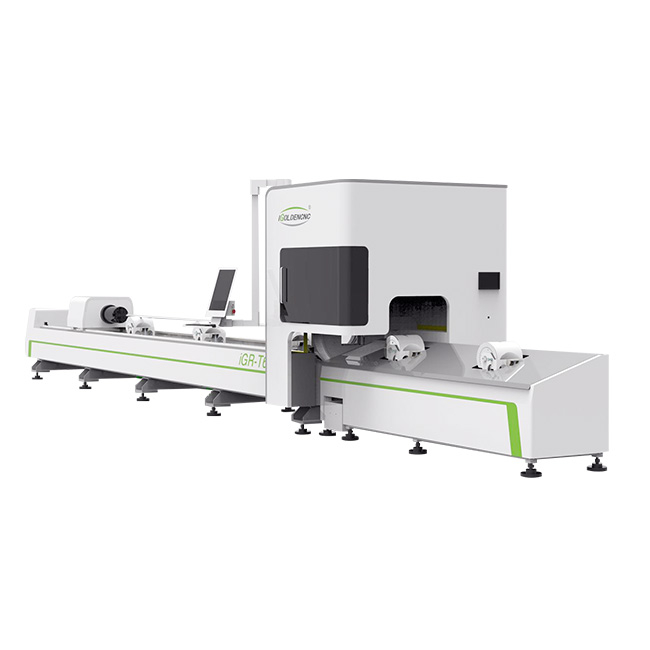

Laser Pipe Cutting Machine Description:
CNC laser cutting machine, also called fiber laser cutting machine, fiber laser cutter, laser cutter, metal laser cutter, metal laser cutting machine, designed for high precision metal plate cutting processing.
Hot applications is cutting for stainless steel, carbon steel, aluminum, copper, galvanized sheet and other metal plate.
Laser Tube Cutter Advantages:
The whole machine is highly integrated, has good system performance and long life, automatic lubrication;
Highly automated, strong anti-interference ability, fast dynamic response speed;
Centralized operation, flexible processing, automatic unloading, convenient and fast pneumatic chuck clamping;
Simple maintenance and maintenance, basically maintenance-free;
The use of special laser tube cutting software and the core technology of efficient cutting are the fundamental guarantee for effectively saving materials and improving cutting efficiency.
Laser Pipe Cutter Parameter Configuration:
Model | IGR-T |
Chuck | ①240 front and rear dual pneumatic chucks; ②Range of clamping pipe diameter: 20mm-240mm; ③Transmission mode: gear transmission; ④Rated speed: about 80r/min; (For round pipes according to the outer diameter, for rectangular pipes according to the largest diagonal) |
Bed | Tube welded bed |
Motor | Yaskawa Servo Motor |
Reducer | SHIMPO Reducer |
Rail | TaiWan HIWIN |
Rack | T-WIN helical gear |
Y-axis travel | ≈7m, applicable tube length ≤6m |
X-axis travel | 240mm |
Z-axis travel | 220mm |
Support form | Pneumatic variable diameter wheel support |
Rated travel speed | Y-axis about 40m/min, XZ-axis about 30m/min |
Dimensions | 12.5m（L）×2.15m(W)×2.5m（H） |
System | Cypcut Laser cutting system |
Laser head | RayTools BM109 |
Laser | Raycus 1.5KW |
Operation console | Industrial computer + touch screen |
Applicable Materials For Fiber Laser Tube Cutter:
Fiber laser pipe cutting machine is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Application Industries
Fiber laser pipe cutter is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
About Us
Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
FAQ:
1.How to choose the suitable power of the lasers?
It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.
2.What's material available for the metal laser cutting machine?
The metal laser cutter is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..
