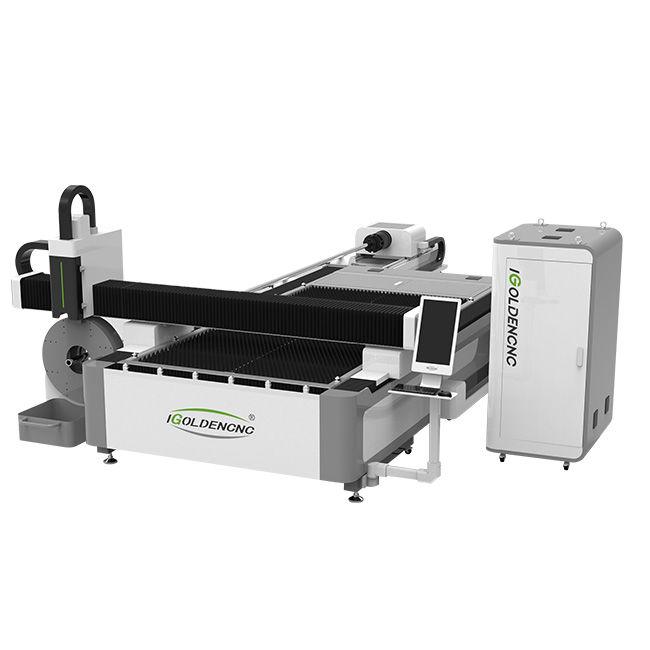

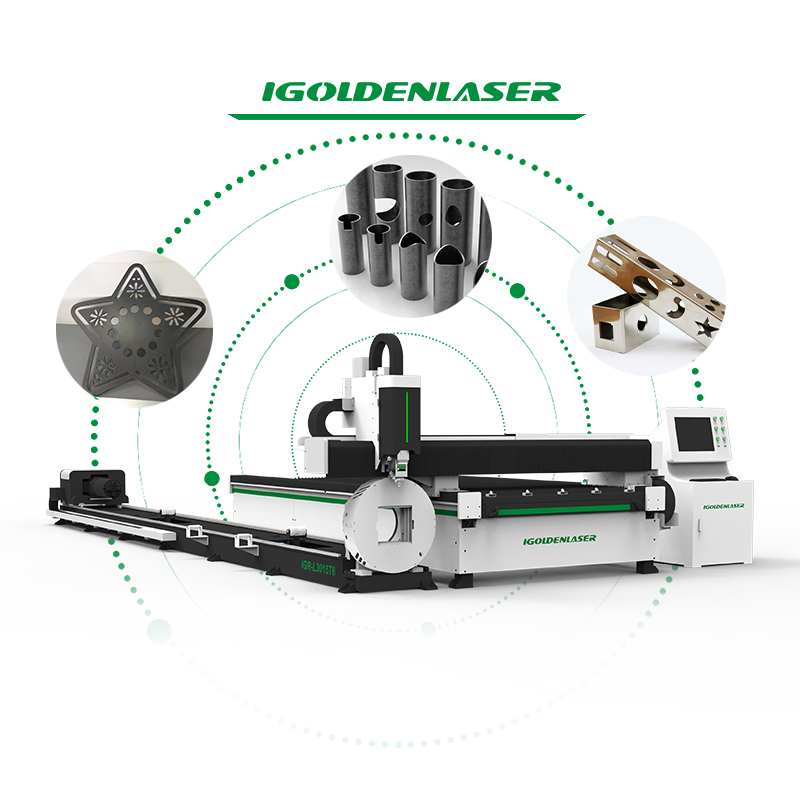

Fiber Cutting Machine Description:
Standard working area is 1500*3000mm, can be upgraded to 1500*4500mm, the length of tube cutting parts can be optioned 3m, 6m, 9m. It is an independent cabinet with built-in air conditioner for 2000w and above power, and can be installed with a side rotation device to upgrade to the multi-fuction machine which can both cut metal plate and tube.
Fiber Laser Cutting Machine Parameters:
| Model | iGR-FT 3015 | |
| Working area/ Tube length | 3000*1500mm/ 6000mm | |
| X axis stroke | 1500mm | |
| Y axis stroke | 3000mm | |
| Z axis stroke | 300mm | |
| Tube diameter | 20-220mm | |
| Accuracy | X, Y axis positioning accuracy | 0.05mm |
| X, Y axis repositioning accuracy | 0.03mm | |
| Speed | W axis rotate angle | n*360 |
| W axis max. ratate speed | 80rpm | |
| X, Y axis max. running speed | 150m/min | |
| U axis max. positioning speed | 800mm/s | |
| X, Y axis max. accelerated speed | 1.5G | |
| Power supply | Phase | 3 |
| Nominal voltage | 380V | |
| Frequency | 50/60Hz | |
| Protection grade | IP65 | |
| Machine body | Max. working loading | 1000kg |
| Body weight | 2600kg | |
| Size(L*W*H) | 8060*3000*1965mm | |
| Laser power | 500w/ 750w/ 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 5000w/ 6000w/ 8000w/ 10000w/ 12000w | |
| Worktable optional | 4000*1500mm/ 4000*2000mm/ 6000*2000mm/ 6000*2500mm | |
| Tube length optional | 3000mm/ 9000mm | |
The automatic lubrication system provides a fixed amount of lubricating oil for the dual-use fiber laser cutting machine to ensure the high-speed operation of the equipment, with abnormal alarm and liquid level alarm functions. The system greatly improves the cutting accuracy and effectively extends the service life of the transmission mechanism.
Intelligent travel protection, automatic monitoring of the operating range of components, installation of international machine tool standard limit springs, the laser cutting head is built-in capacitor height adjustment function, collision stop, improve the metal laser cutting machine and life safety protection, reduce the incidence of accidents, improve cutting efficiency.
Automatic alarm function for abnormal working status of equipment, and push it to the operation interface through the control center, improve the efficiency of the best laser cutting machine abnormal troubleshooting, reduce potential safety hazards, and reduce maintenance costs.
HEAVY-DUTY WELDING BED
The square tube welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1T. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once. .
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail.
It reduces the loss of the metal laser cutting machine when it is used. It keeps the precision of the machine tool for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.
Other suppliers: plate welding bed, poor overall stability and low accuracy.
AEROSPACE ALUMINUM EXTRUSION BEAM
★ High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.
★ Fast speed. Aluminum alloy has the features of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.
★ High efficiency. The lighter weight beam can ensure the rapid operation of the flatbed laser cutting machine, improve the processing efficiency, and at the same time ensure the processing quality.
Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the laser cutting processing.
Effectively improve the service life and accuracy of the cheap laser cutter, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time it can alleviate the kinetic energy of laser head during high-speed movement.
SIDE ROTATION AXIS
The standard length is 3000mm/ 6000mm/ 9000m side rotation axis device, which can process square tubes, round tubes, oval tube, rectangular tube, irregular tube and other metal tube.
★ Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-220mm.
★ Automatic support installation: It adopts intelligent tube bracket design, which can solve the deformation problem during the cutting process of long tubes.
It can process both metal plates and metal pipes, one affordable laser cutter for two purposes, saving space and cost, and improving production efficiency.

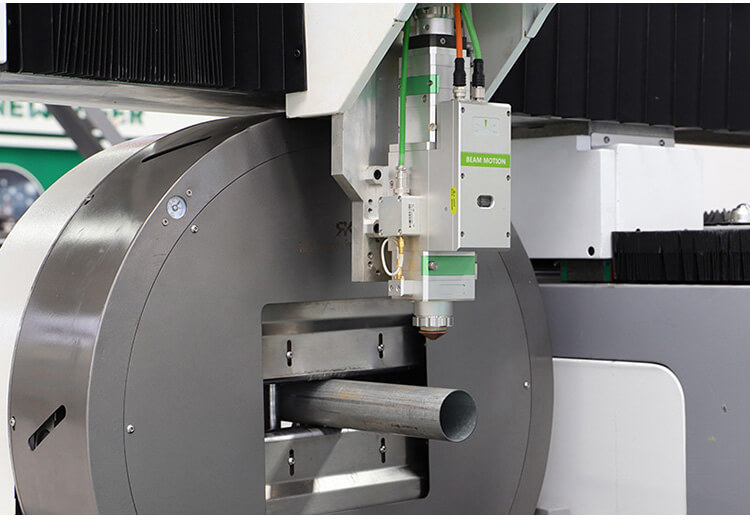

AUTO-FOCUS LASER CUTTING HEAD
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.
☑ Optimized optical configuration and smooth and efficient airflow design to improve the cutting effect;
☑ Auto focus range +10~-10mm, adjustment accuracy 0.01mm, adjustment speed 100mmms;
☑ Collimation protection lens dust protection design, effectively protect the internal optical components;
☑ Extend the distance between the protection lens and the nozzle to increase the life of the lens;
☑ Drawer-type lens holder is adopted to make the protection lens replacement fast and simple;
☑ QBH connector is not limited, it can be equipped with various lasers with QBH connector.
Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.
HIGH-PRECISION TRANSMISSION SYSTEM
Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan Shimpo reducer
The positioning accuracy of the machine tool is 0.05mm, and the repeated positioning accuracy is 0.03mm.
Fiber Laser Machine Application:
Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery, Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.
Applicable materials: professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel plates, and Especially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper, etc.
Fiber Cutting Machine Description:
Standard working area is 1500*3000mm, can be upgraded to 1500*4500mm, the length of tube cutting parts can be optioned 3m, 6m, 9m. It is an independent cabinet with built-in air conditioner for 2000w and above power, and can be installed with a side rotation device to upgrade to the multi-fuction machine which can both cut metal plate and tube.
Fiber Laser Cutting Machine Parameters:
| Model | iGR-FT 3015 | |
| Working area/ Tube length | 3000*1500mm/ 6000mm | |
| X axis stroke | 1500mm | |
| Y axis stroke | 3000mm | |
| Z axis stroke | 300mm | |
| Tube diameter | 20-220mm | |
| Accuracy | X, Y axis positioning accuracy | 0.05mm |
| X, Y axis repositioning accuracy | 0.03mm | |
| Speed | W axis rotate angle | n*360 |
| W axis max. ratate speed | 80rpm | |
| X, Y axis max. running speed | 150m/min | |
| U axis max. positioning speed | 800mm/s | |
| X, Y axis max. accelerated speed | 1.5G | |
| Power supply | Phase | 3 |
| Nominal voltage | 380V | |
| Frequency | 50/60Hz | |
| Protection grade | IP65 | |
| Machine body | Max. working loading | 1000kg |
| Body weight | 2600kg | |
| Size(L*W*H) | 8060*3000*1965mm | |
| Laser power | 500w/ 750w/ 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 5000w/ 6000w/ 8000w/ 10000w/ 12000w | |
| Worktable optional | 4000*1500mm/ 4000*2000mm/ 6000*2000mm/ 6000*2500mm | |
| Tube length optional | 3000mm/ 9000mm | |
The automatic lubrication system provides a fixed amount of lubricating oil for the dual-use fiber laser cutting machine to ensure the high-speed operation of the equipment, with abnormal alarm and liquid level alarm functions. The system greatly improves the cutting accuracy and effectively extends the service life of the transmission mechanism.
Intelligent travel protection, automatic monitoring of the operating range of components, installation of international machine tool standard limit springs, the laser cutting head is built-in capacitor height adjustment function, collision stop, improve the metal laser cutting machine and life safety protection, reduce the incidence of accidents, improve cutting efficiency.
Automatic alarm function for abnormal working status of equipment, and push it to the operation interface through the control center, improve the efficiency of the best laser cutting machine abnormal troubleshooting, reduce potential safety hazards, and reduce maintenance costs.
HEAVY-DUTY WELDING BED
The square tube welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1T. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once. .
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail.
It reduces the loss of the metal laser cutting machine when it is used. It keeps the precision of the machine tool for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.
Other suppliers: plate welding bed, poor overall stability and low accuracy.
AEROSPACE ALUMINUM EXTRUSION BEAM
★ High precision. After manual aging, solution treatment and finishing, the beam has good integrity, rigidity, toughness and ductility.
★ Fast speed. Aluminum alloy has the features of light weight and strong rigidity, which is conducive to high-speed movement during processing, and high flexibility is conducive to high-speed cutting of various graphics on the basis of high precision.
★ High efficiency. The lighter weight beam can ensure the rapid operation of the flatbed laser cutting machine, improve the processing efficiency, and at the same time ensure the processing quality.
Not only can the high-speed operation of the laser cutting machine be guaranteed, but also the accuracy and efficiency of the laser cutting processing.
Effectively improve the service life and accuracy of the cheap laser cutter, reduce time cost and reduce time loss. And after using the same time limit, the aluminum beam can ensure the cutting accuracy to the greatest extent, and at the same time it can alleviate the kinetic energy of laser head during high-speed movement.
SIDE ROTATION AXIS
The standard length is 3000mm/ 6000mm/ 9000m side rotation axis device, which can process square tubes, round tubes, oval tube, rectangular tube, irregular tube and other metal tube.
★ Clamp design: The electric clamp design is used on both sides, which can automatically adjust the center. The adjustable range of the diagonal is 20-220mm.
★ Automatic support installation: It adopts intelligent tube bracket design, which can solve the deformation problem during the cutting process of long tubes.
It can process both metal plates and metal pipes, one affordable laser cutter for two purposes, saving space and cost, and improving production efficiency.
AUTO-FOCUS LASER CUTTING HEAD
The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.
☑ Optimized optical configuration and smooth and efficient airflow design to improve the cutting effect;
☑ Auto focus range +10~-10mm, adjustment accuracy 0.01mm, adjustment speed 100mmms;
☑ Collimation protection lens dust protection design, effectively protect the internal optical components;
☑ Extend the distance between the protection lens and the nozzle to increase the life of the lens;
☑ Drawer-type lens holder is adopted to make the protection lens replacement fast and simple;
☑ QBH connector is not limited, it can be equipped with various lasers with QBH connector.
Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.
HIGH-PRECISION TRANSMISSION SYSTEM
Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan Shimpo reducer
The positioning accuracy of the machine tool is 0.05mm, and the repeated positioning accuracy is 0.03mm.
Fiber Laser Machine Application:
Metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobiles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery, Diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries.
Applicable materials: professionally used to cut a variety of medium and thin metal plates, high-quality cutting carbon steel plates, and Especially for carbon steel, stainless steel, galvanized steel, alloy, titanium, aluminum, brass, copper, etc.
