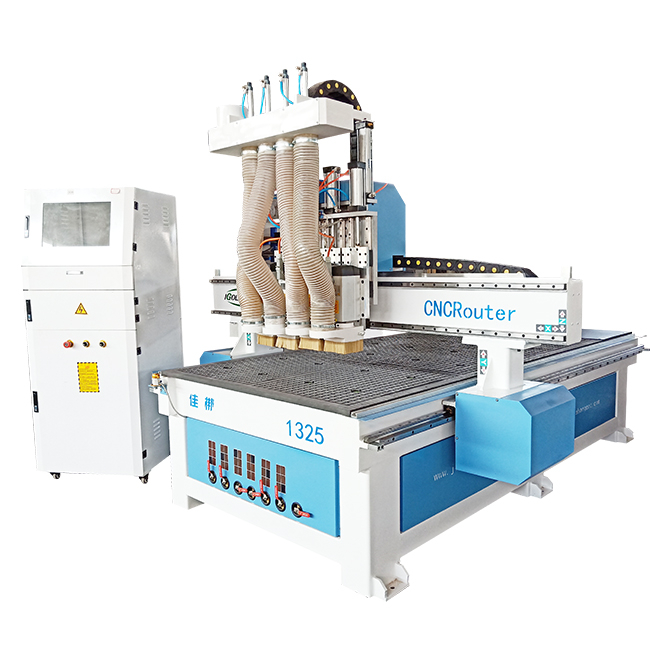

Four-process Woodworking Cnc Router Engraving Machine

The 4 heads wood CNC router machine is suitable for engraving and milling of 3-4 types of flower knives. It can install four different tools at one time to achieve four-processing easy automatic tool change. It is mainly used for various large-area plate carving and door and window processing.

4 Heads Wood CNC Router Machine Description:

The machine table with the international leader  technology. surface density, deformation, high adsorption

capacity, can strongly absorb different materials, convenient,maintenance . automatic lubrication, only need

to hand gently press can achieve the whole machine maintenance.


Four Processes Multi Head CNC Router For Wooden Furniture Features:

1. The 4 heads wood CNC router machine is suitable for engraving and milling of 3-4 types of flower knives.

2. It can install four different tools at one time to achieve four-processing easy automatic tool change.

3. It is mainly used for various large-area plate carving and door and window processing.

Multi-Processes CNC Router Parameter:

Description Parameters
XYZ working area 1300*2500*200mm
XYZ travel positioning accuracy ±0.05mm
Drive system X-Y axis Rack actuation
Drive system Z axis Ball screw
Spindle power 3KW/4.5KW/6KW
Max velocity 50m/min
Max working speed 20m/min
Spindle speed 0-24000rmp
Work mode Step(optional servo)
Working voltage AC220V / 380V-50HZ
Command language G code
Interface USB
Operating system NC Studio / DSP
X-Y resolution 0.025mm
Software environment Wentai type3 artcam
Running environment Temperature:0-45°C
Net weight 1200 kg
Gross weight 1650 kg


Four-process Woodworking Cnc Router Engraving Machine

Applications Of Four-Processes CNC Router:

Wood door and furniture decoration industry:
solid wood compound door, cabinet door, large area plate plane carving,solid wood carving, board furniture carving, antique mahogany furniture carving, solid wood art fresco carving and other industries.

Wooden handicraft processing:
clock frame, process photo frame, calligraphy card, electrical counter surface, sports equipment, thin aluminum plate carving.

Advantages Of 4 Spindles CNC Machine Woodworking Router For Cabinet Furniture Making:

1.The whole machine adopts a heavy-duty steel structure with full welding +vibration aging + quenching treatment process.

The side wall of the fuselage is a whole cast iron side wall. The whole machine is up to about 3.5 tons. The whole bed and

steel castings have strong rigidity and high stability. The advantage of the machine is never deformed. Compared with the

bed of about 2 tons on the market, it has an indisputable absolute advantage. The weight of the machine tool ensures that

the machine does not shake during high-speed processing, thereby ensuring the machining accuracy;

2. Adopting high-quality and high-power stepping motor to enhance the click torque, the processing speed is faster than

other brand-name motors, the stability is stronger, the accuracy is higher, and the failure rate is lower;

3. High configuration + strict technical assembly process creates a high-precision and high-efficiency machine. The

machining accuracy of the whole machine is up to 5 wires, that is, ±0.05mm, and the machine body is not deformed

when fully welded to 1200kg, so as to ensure the accuracy of the whole machine.

4. Adopt the original imported Taiwan HIWIN linear square guide rail, with flange, strong sealing, dust-proof and

chip-proof, 3000 kilometers maintenance-free, high precision, wear resistance, ensure transmission accuracy,

the size of guide rail and screw rod are 30mm /32mm, strong bearing capacity.

Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.



1.What kind vacuum pump you use for the 4 process woodworking machine? How much kw?

Usually for 1325 model, use 5.5kw is ok, if you want more powerful, can choose 7.5kw/11kw.

2.What size can I choose for this ATC wood router machine?

This machine our standard working size 1300*2500mm, 1500*3000mm, we also can custom made for you such as 2100*3000mm and other size.

3. Can the 3 axis CNC machine add automatic loading/ unloading table?

Yes, it can, with loading/ unloading table, it will improve work efficiency, savings artificial and cost.

4.Do I have to purchase spare parts for my cnc router from you?

No. The majority of the components used on a iGolden CNC Router may be purchased from multiple sources. Although we does try to stock most of the components you may need for your machine and will be happy to supply them to you, there are other companies that can supply you with the same components.

5. Do you also sell CNC accessories?

Yes, we offer customer with CNC accessories including CNC router machine accessories (CNC router parts, CNC router bits, CNC router tools), CNC laser machine accessories, CNC plasma cutter accessories and CNC wood turning lathe machine accessories.
