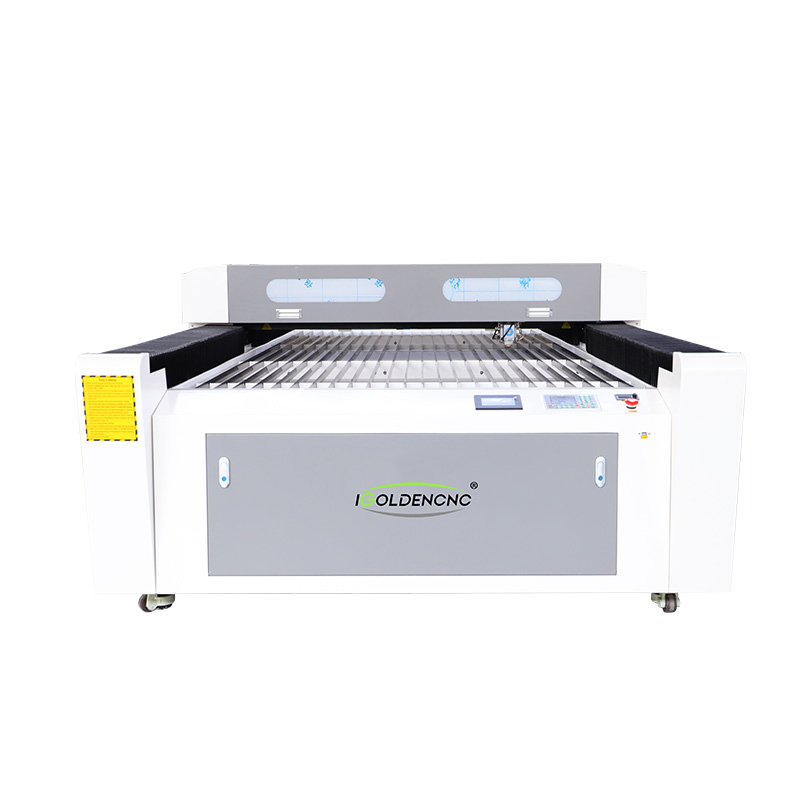

This CNC CO2 mixed cutting laser cutting machine is suitable for cutting metal and non-metal plates. It adopts a steel welding frame, which is stable, has good rigidity, and high dynamic response, ensuring that it will not be deformed for a long time.
Cuts stainless steel, carbon steel, and mild steel along with most non-metal materials i.e. Plywood, Acrylic, Wood, Fabric, Cloth, Leather, Rubber Plate, Ect.
◎High processing efficiency, 10 to 15 times that of manual engraving; high precision, low cost, and good printing effect;
◎The optimized design of the mechanical structure and the smallest overall size of the whole machine not only saves your precious space, but also the structure should not be deformed and the cutting precision is high;
◎Taiwan square linear guide, long life;
◎The use of patented technology makes the engraving effect of the rubber plate better, and it is not easy to burn;
◎Genuine laser engraving software, powerful; engraving and cutting can be carried out at the same time.
Parameter | |
Model | iGL-BM-1325 |
Working size | 1300*2500mm |
Laser type | Sealed CO2 laser tube(RECI Brand) |
Laser power | W6 130W RECI laser tube |
Cutting speed | 0-3,000mm/min due to different material |
Position accuracy | ±0.05mm |
Work platform | Stainless sheet and knife table |
Operating temperature | 0-45 degree |
Transmission | High precision ball-screw system |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | stepper motor |
Cooling mode | Industrial Chiller |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
Controlling software | Off-computer controlling system |
Compatible software | Coreldraw AutoCAD Photoshop |
Working voltage | AC110-220V ±10%/10A,50-60HZ |
Power | <2000W |
Weight | 1200KGS |
Laser cutting head Precision cutting can be adjusted according to the height of the material to be cut to ensure smooth cutting process and effective adjustment of the spot size. |
Control System Display preview graphics and processing status, can run independently, and work stably and reliably. |
CO2 Laser tube Using Beijing RECI laser tube, high-end, stable performance, uniform spot distribution, high work efficiency. |
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials;
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
This CNC CO2 mixed cutting laser cutting machine is suitable for cutting metal and non-metal plates. It adopts a steel welding frame, which is stable, has good rigidity, and high dynamic response, ensuring that it will not be deformed for a long time.
Cuts stainless steel, carbon steel, and mild steel along with most non-metal materials i.e. Plywood, Acrylic, Wood, Fabric, Cloth, Leather, Rubber Plate, Ect.
◎High processing efficiency, 10 to 15 times that of manual engraving; high precision, low cost, and good printing effect;
◎The optimized design of the mechanical structure and the smallest overall size of the whole machine not only saves your precious space, but also the structure should not be deformed and the cutting precision is high;
◎Taiwan square linear guide, long life;
◎The use of patented technology makes the engraving effect of the rubber plate better, and it is not easy to burn;
◎Genuine laser engraving software, powerful; engraving and cutting can be carried out at the same time.
Parameter | |
Model | iGL-BM-1325 |
Working size | 1300*2500mm |
Laser type | Sealed CO2 laser tube(RECI Brand) |
Laser power | W6 130W RECI laser tube |
Cutting speed | 0-3,000mm/min due to different material |
Position accuracy | ±0.05mm |
Work platform | Stainless sheet and knife table |
Operating temperature | 0-45 degree |
Transmission | High precision ball-screw system |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | stepper motor |
Cooling mode | Industrial Chiller |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
Controlling software | Off-computer controlling system |
Compatible software | Coreldraw AutoCAD Photoshop |
Working voltage | AC110-220V ±10%/10A,50-60HZ |
Power | <2000W |
Weight | 1200KGS |
Laser cutting head Precision cutting can be adjusted according to the height of the material to be cut to ensure smooth cutting process and effective adjustment of the spot size. |
Control System Display preview graphics and processing status, can run independently, and work stably and reliably. |
CO2 Laser tube Using Beijing RECI laser tube, high-end, stable performance, uniform spot distribution, high work efficiency. |
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials;
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.
