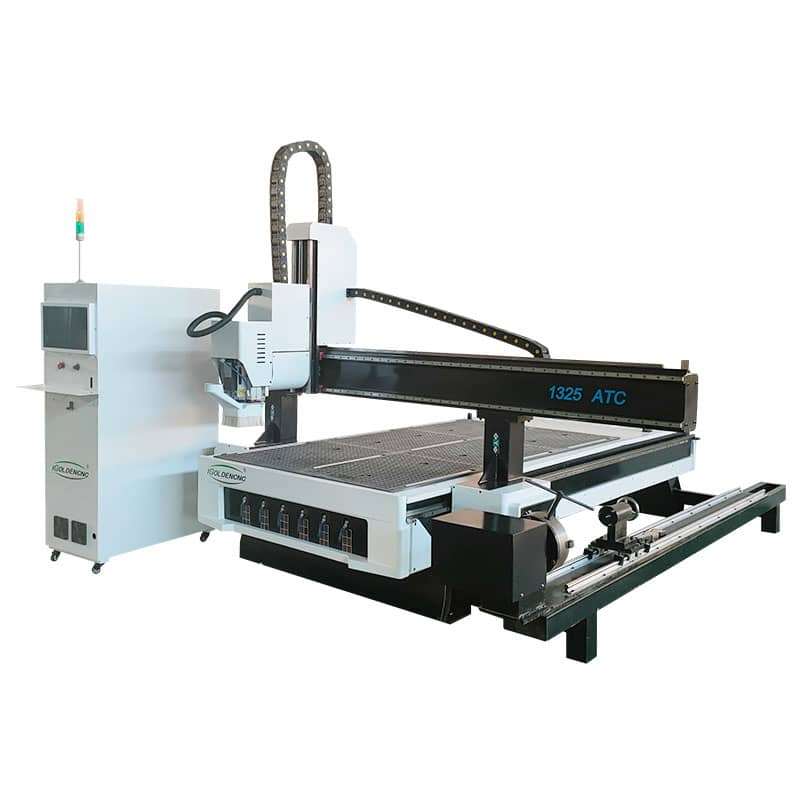

Multifunctional ATC Wood 4 Axis CNC Router Machine Description:
The ATC CNC wood router is a relatively high cost performance CNC router. It is designed with linear tool changer magazine and can change more than 8 types of tools automatically according to the different knife functions in the engraving process. Besides that it is worth mentioning that the spindle of the machine can swing 180 degree, If you want to do three-dimensional objects or molds or more complex steps, it should be your ideal choice.
1325 ATC CNC Router Parameter：
| Description | Parameters |
|---|---|
| Stroke | 1300*2500*200mm |
| System | LNC 4-axis system |
| Cabinet | LNC Cabinet |
| Beam | Steel Gantry |
| Countertop | Vacuum suction can suck and clamp the countertop |
| Rail | Taiwan HINWIN |
| Spindle | 9KW HQD air cooling spindle ( swing 180°) |
| Drive | Dongling 1.5KW |
| Frequency conversion | Fuling 11KW |
| Voltage | Three-phase 380V/60HZ |
| Motor | X/Y axis: Dongling Servo 1.5KW + SHIMPO reducer. Z axis: Dongling Servo 1.2KW + brake |
| Rack | Taiwan xinyue rack |
| Vacuum pump | Water-cooled vacuum pump 5.5KW |
| Lubrication system | Automatic lubrication |
| Vacuum cleaner | 3kw double cylinder vacuum cleaner |
Multifunctional Atc Wood Cnc Router Machine Feature：
1. With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
2.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
3. Control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
LNC 4-axis system
9KW HQD air cooling spindle(swing 180°)
Can suck and clamp the table
8 in-line tool change
Side rotation axis
Automatic oiling/Fuling Frequency conversion
Multifunctional ATC CNC Router Machine Application:
1. Woodworking industry:ood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.
2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.
3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.
