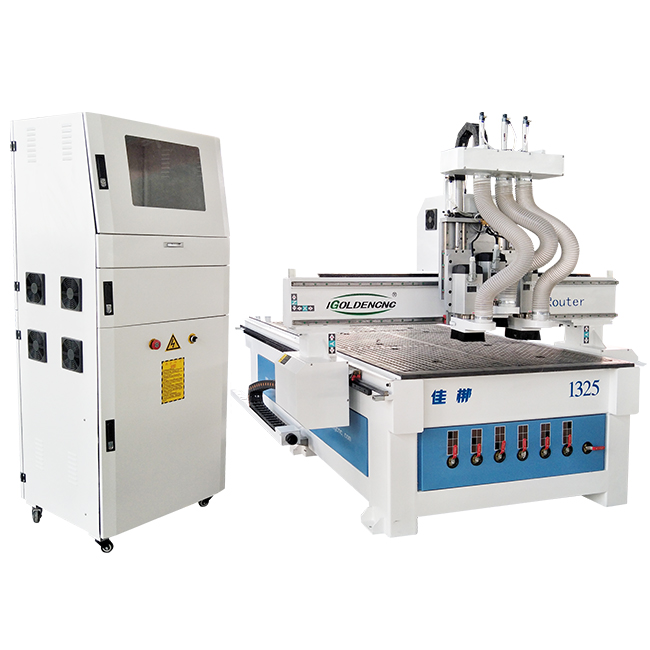

Three process wood door engraving machine

The 3 heads CNC router machine is suitable for a variety of complex product processing or diverse processing, with pneumatic tool changer, with a wide range of functions: engraving, milling, chamfering, side milling, drilling, cutting, slotting, etc. We will free Provide you machine features, application, technical parameters, machine price and other consulting services.
Availability:


Three Process Engraving Wood Door Machine Description:

The 3 heads CNC router machine is suitable for a variety of complex product processing or diverse processing, with pneumatic tool changer, with a wide range of functions: engraving, milling, chamfering, side milling, drilling, cutting, slotting, etc.


005


Three Process CNC Wood Engraver Parameters:


Working area

1300*2500*200mm

Spindle

4.5KW air cooling*2+6KW air cooling*1

Inverter

Fuling inverter

Motor

Stepper motor

Driver

YAKO

Control system

NC Stusio/DSP

Working area

Vacuum absorbed table/Aluminum profile+PVC

Guide rails

#25 Taiwan HIWIN

Transmission

XY helical rack,Z TBI ball screw

Rack

Z TBI ball screw with air cylinder

body

Welded structure G1

Beam

Steel beam

Columns

Side hanging steel columns

Control system

Independent control box

Lubrication

Manual

Color

customized

Vacuum pump

Optional

Dust collector

Optional

Automatic tool setting

Tool sensor

Accessories

Collect:ER32


气动三-三工序_04

Three Process CNC Carving Machine For Wood Feature:

1. Operate easily with many type of coordinate system to set tool and internal compensation

2. X Y axis adopt rack drive, which make it speed faster and effective higher, also have all functions of NC machine 1325

3. Excellent software compatibility can support many kinds of software,such as TYPE3, ARTCAM, WENTAI etc.

4. Has the function of re-carving after break point and power failure, working time anticipation, preview of tool path simulation, timely correct the error code, back to the original point with auto correction.

5. Realize many kinds of carving, such as relief carving, shadow carving, plane carving and cutting

6. Flexible data get way: get the data freely with handle, network, USB flash disk, Can work off-line without  resource of computer,

7. Handle is connected with computer using USB interface for plug and play, supporting WIN91/NT/2000/XP

8. Whole circuit adopt chain shield cable, which can prevent signal interference. Copper core is not easy to  break, which improve the stability of machine.

Three-process Woodworking Cnc Router Engraving Machine


Three Process Engraving Wood Door Machine Advantage

1.Stable Structure  the overall steel structure welding, the vibration (tempering) aging treatment, long-term

use of never deformation.

2.The linear guide rail adopts imported linear square orbit, double row and four ball slider, loading capacity,

smooth running, keep high accuracy

3.The machine table with the international leader  technology. surface density, deformation, high adsorption

capacity, can strongly absorb different materials, convenient,maintenance . automatic lubrication, only need

to hand gently press can achieve the whole machine maintenance.

4.High efficiency:Multiple spindle motor work separately, saving tool changing time, can complete  large

quantity product processing. Advanced automatic tool changer, without manual intervention, the program

automatically executes


1325 Multi Spindle Woodworking Machine Applications:

  1.  Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
    2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould,etc
    3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc
    4.Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum

and copper, etc.


Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.

igoldencnc


FAQ:


1.How much spindle power you use for the 3 process CNC router machine?

Usually middle spindle 6kw, two sides spindle 4.5kw, 6kw mainly used to cut, 4.5kw use to engrave or drilling.


2.Can you add rotary axis on the woodworking machine? Sometimes I also do round workpiece.

Yes, we can, we have produced this type, more information you can contact us directly.


3. I want the middle spindle can horizontal and vertical work, can you do it?

Yes, we have produced many this type machine, the middle spindle can be horizontal, so can drilling side hole and make lock hole.


4. What CNC control system you use, does it need a computer?

If you are familiar with computer control machine, we can give you NCSTUDIO control system.


5.What is the difference between Pneumatic ATC 3 spindles and 4 spindles?

3 spindles sometimes not enough, but if add one more spindle, can make more complex design, such as engraving, drilling hole, slotting, cutting.
