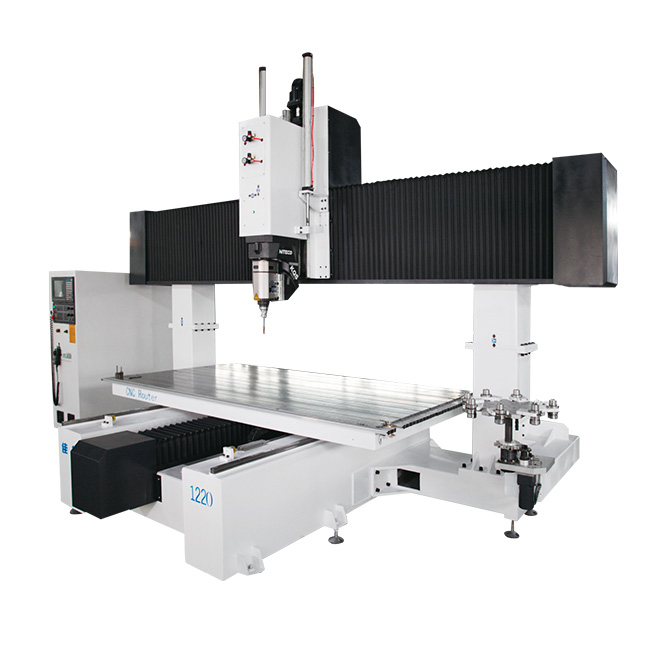

5 Axis ATC CNC Router Machine Description：
This is a 5 axis cnc router machine specially designed for engraving complex three-dimensional workpieces. This 5-axis CNC router has the characteristics of integrated casting, good rigidity, good stability, high processing accuracy, stable operation, convenient operation, and powerful functions.
5 Axis CNC Machining Center Features:
1.With OSAI numerical control system, the machine is of high speed and high machining accuracy.
2.The Japan THK rails and the Germany original rotating arm ensure the accuracy and strength of the machine.
3.Z-axis travel can be heightened to 2.1 meters, so it is very suitable for processing large-scale three-dimensional surface.
4.The intelligent processing crossborder protection function can prevent the excessive process caused by mechanical collision.
5.Diversified control processing speed can control the working speed, traveling speed and dropping tool speed, and it improves the quality and efficiency greatly.
6.Stand column welded with 12mm and 16mm thick channel steels and square tubes, processed by high temperature tempering and finishing machining.
7.Machine beam welded with 12mm and 14mm thick channel steels and square tubes, middle with two layers stiffeners.
5 Axis CNC Milling Machine Parameter Configuration:
| Description | Parameters |
|---|---|
| Working area | 1200*2000*500mm |
| Transmission | XYZ axes Taiwan TBI Ball screw 40,table moving structure |
| Reducer | JAPAN SHIMPO |
| Servo motor | Japan YASAKAWA |
| Control | TAIWAN SYNTEC |
| Spindle | 14KW Italy SMC HITECO, KOS 360° |
| Inverter | Taiwan Delta |
| Guide rails | Taiwan Hinwin 30mm |
| Table structure | Aluminum T slot |
| Tools magazine | 8 carousel tools |
| Tool senior | YES |
| Lubrication | YES |
5 Axis CNC Wood Router Machine Application:
Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel, literal-hole cut,lightbox mold,stamp,mould,etc.
Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
FAQ:
1. Which industries 5 axis cnc machine are mainly used for?
Foam mold, wood mold, large plastic mold, large casting mold. Processing and manufacturing of lampshade molds and large special molds.
2.What is the difference between 4 axis and 5 axis?
Four axis can only engrave cylinder.
Five axis can engrave various shapes.
3.What control systems are generally used for 5 axis cnc router machine?
5 axis cnc router generally uses syntec, ossett, siemens system.
