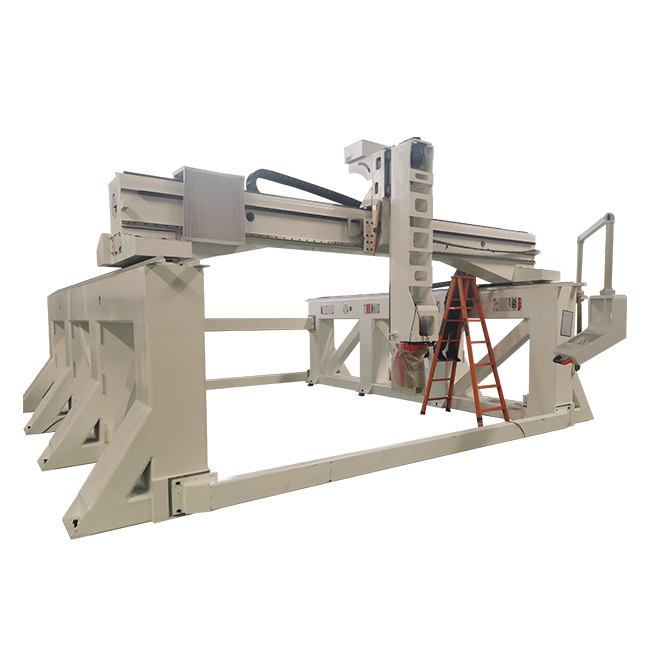

Gantry Moving 5 Axis Cnc Router Introduction:
This machine is widely used in all kinds of foam material, EPS, wood, soft metal, plastic, arcylic,stone,PVC,Composite board, etc .And slotting, chamfering, drilling, milling groove and other multi-angle processing can be finished by machine.
CNC 5 Axis Moving Gantry Machines Parameter：
| Model | iGW-5AM-2030 |
|---|---|
| Type | Gantry moving 5 axis cnc router |
| Working area | 2000*3000*1000mm |
| Table structure | Cast iron or welded steel plate |
| Transmission | Helical rack on X Y axis, Taiwan TBI ball screw for Z axis |
| Guide Rail | Three axis #30 Taiwan guide rail |
| Tool Change | 12 tool changes |
| Spindle | Spanish akemd five axle head and 14.4-17KW spindle |
| Control System | Taiwan SYNTEC control system |
| Servo Motor | Japan YASKAWA |
5 Axis Gantry CNC Router Features:
(1) Adopt stable numerical control system, powerful, high processing precision and fast speed.
(2) Each component adopts the international brand.
(3) Five-axis (true five-axis interpolation) is suitable for large-scale three-dimensional curved surface machining modeling.
(4) Diversified control can control the processing speed, empty speed, etc. separately.
5 Axis CNC Machine with Gantry Moving Application:
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
FAQ:
1. Which industries 5 axis cnc machine are mainly used for?
Foam mold, wood mold, large plastic mold, large casting mold.
Processing and manufacturing of lampshade molds and large special molds.
2.What is the difference between 4 axis and 5 axis?
Four axis can only engrave cylinder.
Five axis can engrave various shapes.
3.What control systems are generally used for 5 axis cnc router machine?
5 axis cnc router generally uses syntec, ossett, siemens system.
