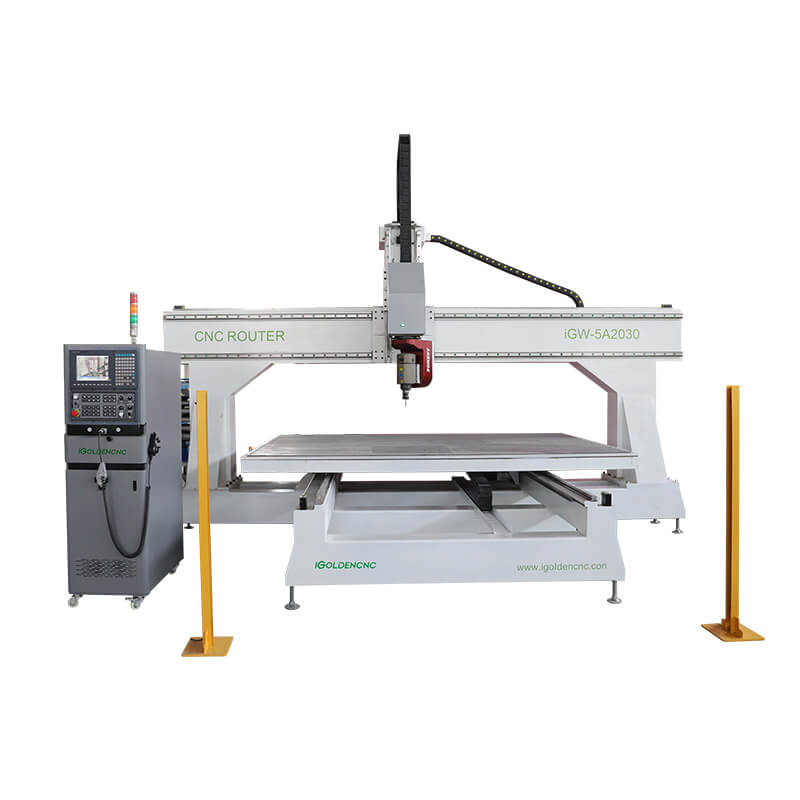

iGW-5A
iGOLDENCNC
iGOLDEN-iGW-5A
The 5-axis linkage machining center is a kind of mechanical equipment with high scientific and technological content and high precision, and the whole machine adopts high-quality components. Can achieve a variety of complex, heavy processing. Using mobile table structure, large flexibility, wide processing range. Good at space surface processing, shaped processing, hollow processing, punching, oblique drilling, chamfering, etc., working speed, traveling speed, cutting speed can be controlled separately, greatly improving productivity.
Widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing and other fields.
It offers simultaneous control of five axes of motion, allowing for versatile and precise machining of a wide range of materials.
Technical indicators | parameter |
Model | iGW-5A2030 |
Bed frame | Heavy duty welding bed |
Beam | Steel beams |
Route | 2000*3000*1000 mm |
Five-axis head | AKEMDE（with 360 degree rotation） |
Spindle | HITECO water-cooled spindle |
System | Taiwan SYNTEC five-axis system |
Cabinet | iGOLDEN independent cabinet |
Driver | Japan Yaskawa drive motor |
Reducer | SHIMPO |
Inverter | FULING |
Table | Vacuum adsorption table |
Guide | TAIWAN HIWIN |
Lead screw | TBI |
Rack | Xinyue |
Vacuum pump | 7.5kw |
Lubrication system | Automatic |
Oil mist system | Yes |
IGOLDENCNC independent electric control cabinet, humanized design, Taiwan Syntec system, easy to operate.
360° processing, small vibration, low noise, long life.
High rigidity, high torque, precise positioning; Small wear, long service life.
More optimized function, more flexible application, more stable performance, higher performance and accuracy.
The number of knife storage can be increased according to different processes.
With rich internal position, internal speed and internal torque control functions, superior performance, reliable quality.
5 Axis CNC Machine Application:
Composite materials industry: trimming and perforating various composite materials such as plastic parts, glass steel parts, rubber and plastic products.
Mold industry: five-axis processing of glass fiber reinforced plastic wooden molds, cast wooden molds, resin products, clay models, and various non-metallic molds.
Ceramic sanitary ware industry: 5-axis processing of plaster molds, 5-axis processing of various gypsum products.
Furniture industry: five-axis processing of solid wood furniture, five-axis processing of various furniture tenon and tenon pieces, five-axis processing of staircase elbows, five-axis processing of various furniture.
