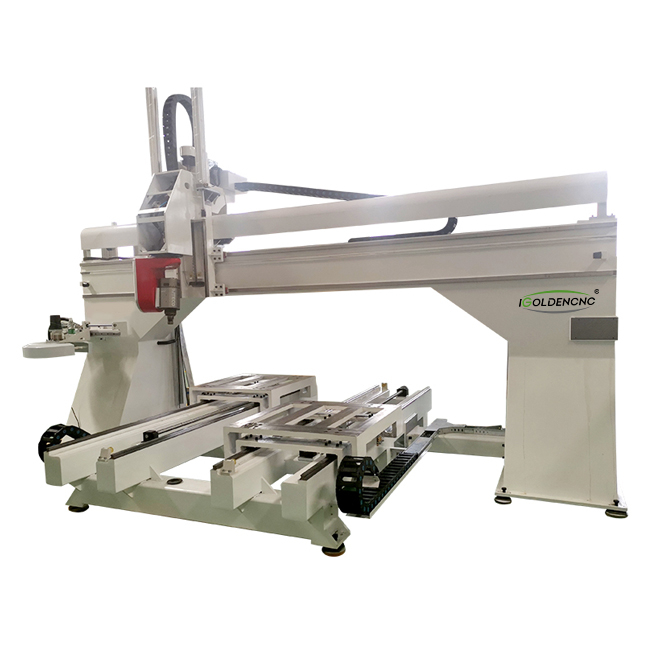

5 Axis – Moving Table CNC Machine Description:
The best 5 axis CNC router with double worktable moving and 5-axis spindle, it’s easy to accomplish full set processing of complex parts from milling, slotting, drilling, sawing, mortise, mortise, etc, the advanced model designed by iGOLDENCNC, combined with a competitive set of configurations. Hot applications include:
Table Moving 5 Axis CNC Router Center Parameter：
| Model | iGW-5AM-3012 |
|---|---|
| Type | Table moving 5 axis cnc router |
| Working area | 3000*1200*800mm |
| Table structure | Double surface cast iron table moving |
| Transmission | Helical rack on X axis, Taiwan TBI ball screw for Y Z axis |
| Guide Rail | Three axis #30 Taiwan guide rail |
| Tool Change | 10 tool changes (optional double magazine) |
| Spindle | Spanish akemd five axle head and 14.4-17KW spindle |
| Control System | Taiwan SYNTEC control system |
| Servo Motor | Japan YASKAWA |
Features Of Table Moving 5 Axis CNC Machine:
1. This machine is with double table moving in work so that can improve the working speed
2. It is very good for small parts 5D products making like craft, wood mould, aluminum mould, foam mould etc
3. Two tables working together same project and working precision could be +-0.05mm. Z axis is adopted TBI ball screw with diameter 35mm very strong
4. Syntec control system Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.
5. Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface..
6. Adopt TAIWAN Syntec 8axis numerical control system, high machining accuracy and high speed.
7. The Japan THK rails with 30 size. and the Germany original rotating arm ensure the accuracy and strength of the mechanical
8. Advanced Syntec system with intelligent program that you no need prepare separate post processor just make a suitable 5 axis design in softare then input Syntec system then will be ok.
9. Economic 5 axis rotate spindle motor 10kw which is good for aluminum,wood,foam. pvc,plastice mould making
10. Heavy structure frame with quality steel tube after hot processing which is better stabilization and good rigidity
5 Axis Moving Table CNC Router Application:
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc. And welcome to visit us for more choices.
FAQ:
1. Which industries 5 axis cnc machine are mainly used for?
Foam mold, wood mold, large plastic mold, large casting mold.
Processing and manufacturing of lampshade molds and large special molds.
2.What is the difference between 4 axis and 5 axis?
Four axis can only engrave cylinder.
Five axis can engrave various shapes.
3.What control systems are generally used for 5 axis cnc router machine?
5 axis cnc router generally uses syntec, ossett, siemens system.
