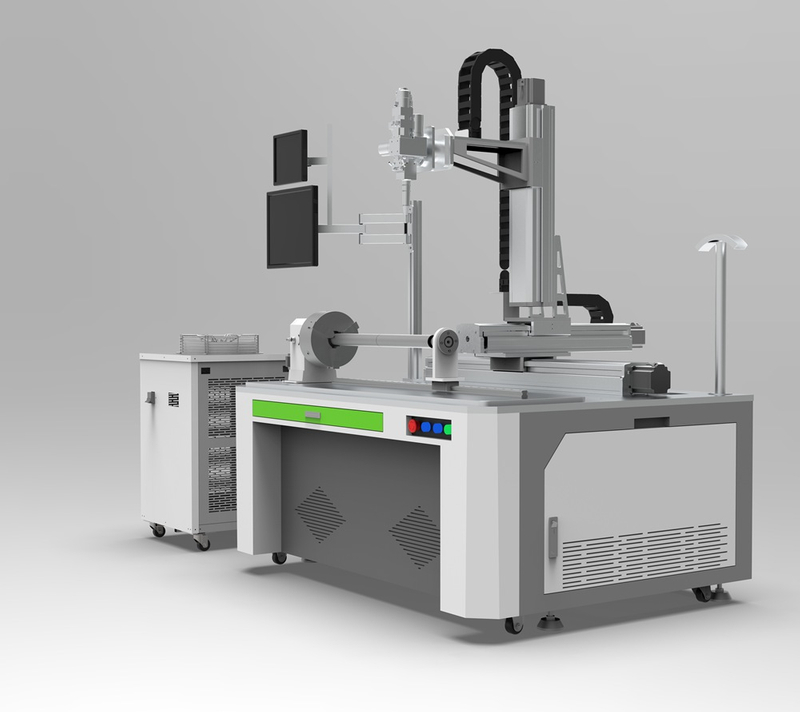

Automatic Fiber Laser Welding Machine

iGWL-AW series laser welding machine is the new generation of safe, high efficiency, energy saving, environment-friendly metal laser welding equipment, using handheld swing welding head, infrared ray positioning, touch screen and button control, combined with the advanced integrated control system.

Availability:



Inquire

Machine Introduction

Video

Automatic Welding machine Description：

The Automatic Welding machine is assembled. The heating area is small during welding, and it will not cause deformation, blackening, and traces on the back of the workpiece.

Laser Welding Machines Advantages:

★Automated laser welding machine can easily realize tailor welding, stitch welding and seam welding of various lengths and positions. Especially in the welding of thin stainless steel plates, iron plates, aluminum plates and other metal materials, it has the characteristics of fast welding speed, good surface effect, large penetration depth, and small heat-affected area.

★Cooperating with fixture and automatic programming control, it can realize batch fast/consistent welding requirements of similar products.

★ The welding is flexible and easy to operate. In addition to repairing large molds, large machines can also achieve long-distance welding, which can be welded without disassembling the product.

★ It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. It can perfectly replace traditional argon arc welding, electric welding and other processes for welding thin stainless steel plates, iron plates,galvanized plates and other metal materials.

Automatic Welding Equipment Parameters

Technical index	Technical Parameters
Model	iGWL-AW- 1000	iGWL-AW- 1500	iGWL-AW- 2000
Laser power	1000W	1500W	2000W
Laser wavelength	1080±10nm
XYZ Working stroke	1000400500mm
X/Y/Z Axis positioning accuracy	±0.025mm
X/Y/Z Axis Repositioning accuracy	±0.02mm
Laser working method	CW/Modulated
Width of galvanometer	Line 0.5-6mm/ Circle 2mm
Thickness of welding material	≤4mm	≤6mm	≤8mm
Welding gap requirements	≤0.3mm
Voltage	380V±10%
Total power	≤8kw	≤10kw	≤12kw
Gross weight	700kg	800kg	900kg

Comparison of Laser Welding and Traditional Welding

Welding method	Heat affected zone	Thermal deformation	Weld quality	Whether to add solder	Welding environment
Laser welding	Smaller	Smaller	Better	No	No special requirements (except for special industries)
Brazing	General	General	General	Yes	Overall heating
Argon arc welding	Larger	Larger	General	Yes	Need electrodes
Resistance welding	Larger	Larger	General	No	Need electrodes
Plasma arc welding	General	General	General	Yes	Need electrodes
Electron beam welding	Smaller	Smaller	Better	No	Vacuum

Laser Welding Speed

Collimating focal length：150mm Focus length：250mm Fiber diameter：50μm Protection gas＞15L/min
No.	Material	Output Power	Penetration（mm）	Speed（m/min）
1	Stainless steel	500	1.5	0.85
2		500	1	2.55
3		500	0.5	6.8
4		750	2.5	0.85
5		750	2	2.55
6		750	1.5	2.17
7		750	1	6.8
8		1000	0.5	8.5
9		1000	3	0.85
10		1000	2.5	2.55
11		1000	2	3.4
12		1000	1.5	5.1
13		1000	0.5	12.75
14	Carbon steel (low)	500	1	1.28
15		500	0.5	5.1
16		750	2	0.85
17		750	1.5	2.55
18		750	1	5.95
19		750	0.5	7.62
20		1000	2.5	0.85
21		1000	2	2.55
22		1000	1.5	4.25
23		1000	1	6.8
24		1000	0.5	11.05
25	Aluminium	500	1	0.85
26		750	1	1.7
27		1000	1	3.4
28		1000	2	0.85
29	Copper	1000	0.3	1.7

Automatic Platform Welding Machine Details:

	JPT Laser We use advanced fiber lasers with a service life of more than 10w hours, low energy consumption, low failure rate, flexible fiber up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.
	WSX Professional welding head 1. This welding head has strong advantages in aluminum alloy welding and medium power welding applications, and it is a cost-effective welding head. 2. The welding head uses a motor to drive the X, Y axis vibrating lens, with a variety of swing modes, and the swing welding allows the workpiece to have irregular welds, larger gaps and other processing parameters, which can significantly improve the welding quality. 3. The internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust. 4. The protective lens adopts a drawer type structure, which is easy to replace. 5. It can be equipped with various lasers with QBH connectors.
	HANLI Water cooler Environmentally friendly refrigerant, perfectly compatible with all lasers Stable and reliable performance, low failure rate, energy saving and power saving
	Multi-axis mobile welding table The whole machine is designed with a thick aluminum plate, and the structure is firm High positioning accuracy and sensitive response No need to manually move the product, automatic welding, easy to operate
	Solder joint monitoring High-definition resolution display, better observation of welding process, beautiful welding seam Professional welding software, high quality

Automatic Laser Welding Machine Features:

1. Fast welding speed, no consumables, no color change/less color change, no need for later polishing.

2. The interaction of professional laser control system is enhanced, the accuracy of welding path is controllable, and the welding seam is formed well.

3. Use infrared positioning to verify the position of the welding head and verify the position during the welding process. The welding position is more accurate, the welding seam is smooth and beautiful, and it is easy to grind and polish. There is no need to handle or only simple processing procedures after welding;

4. 360-degree micro-welding without dead angles, after the laser beam is focused, the spot is small, the power density is high, and the positioning accuracy is high. It can be used for group welding of small and micro-sized workpieces to realize automated mass production;

5. The laser welding depth is large, the weld seam is firm, the width is small, the heat-affected zone is small, the deformation is small, and the welding speed is fast. It can realize complex welding between some dissimilar materials;

6. The welding seam is of high quality and no porosity, which can reduce and optimize the base metal impurities, and the structure can be refined after welding, and the weld seam strength and toughness are at least equivalent to or even more than the base metal;

7. Stable output to ensure welding consistency. Most continuous laser welding are high-power lasers with a power above 500 watts. Generally, this laser should be used for plates above 1 mm. There are also some low-power continuous lasers with power between tens to hundreds of watts. They are used more in plastic welding and laser brazing industries.

Automatic Fiber Laser Welding Machine Application:

主图-08

Suitable for metal materials: Welding of thin metal plates-stainless steel, carbon steel, copper, aluminum, etc.

Applicable products-all kinds of sheet metal, molds, chassis, chassis, kitchen and bathroom products, all kinds of hardware and lighting; high-precision electronic products, high welding strength workpieces, such as pressure vessels, condensers and other products.
