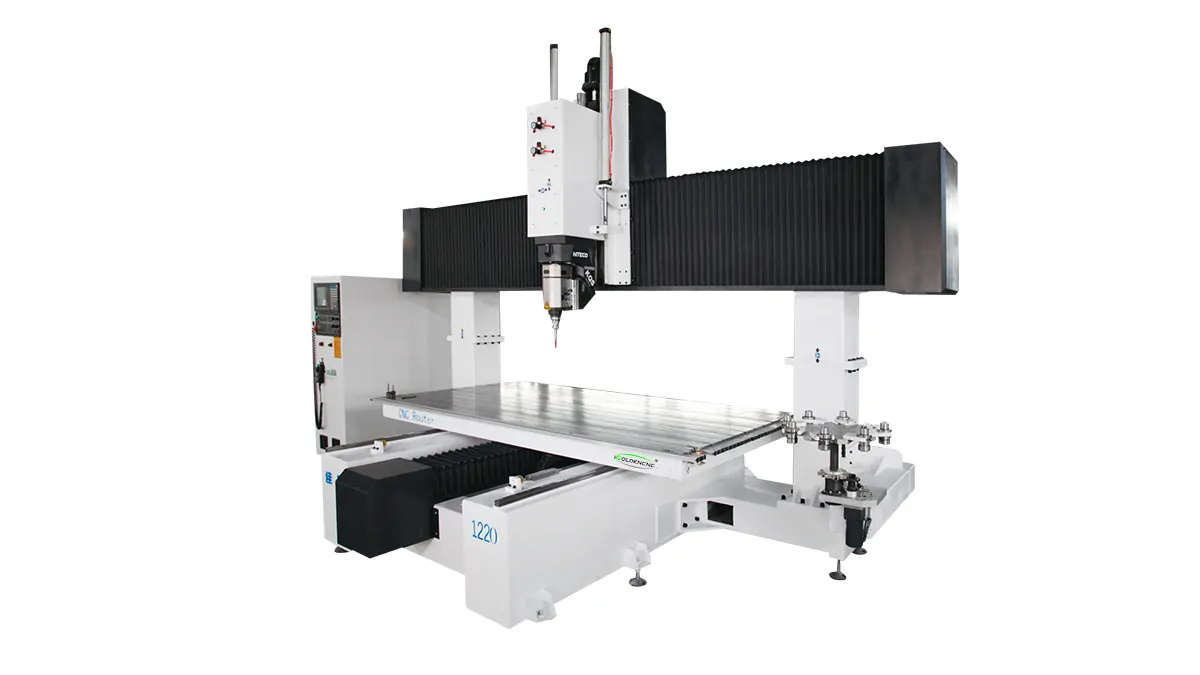

China Top Quality 5 Axis CNC Router Woodworking

The igoldencnc 5 Axis CNC Router is another demonstration of our technological leadership, as this tool delivers multi-axis capability at an affordable price. The igoldencnc 5-Axis is ready for production cutting, drilling, trimming, as well as prototype- and fixture-machining in a large work envelope, with material being accessible from all angles.

Features of 5 axis CNC router:

The 5 axis cnc router is good at processing methods such as space surface processing, special-shaped processing.

All famous brand and high quality choice, ensure machine with high performance and long working life.

The workpiece can complete complex processing needs in one clamping, and it can adapt to the processing of modern molds such as auto parts and aircraft structural parts.

5 axis CNC router configuration：

5 axis CNC router working Area (in 5 axis): 1100 x 2300 x 900mm and 1200 x 2400 x 900 in 3 axis

Extra heavy duty welded steel frame and gantry for maximum straightness and rigidity

10Kw HSD Spindle

8 position rotary ATC with HS655 precision tool clamping

THK made in Japan lubricated for life linear rails and guide blocks

Imported ball screw on x-axis ensures processing accuracy

Yaskawa servo drivers and motors for high power and speed

Osai – PC interfaced Numerical Control System

T-Slot clamping table

Becker vacuum pump for vacuum clamping fixtures (optional)

Oil Mist cooling system for cutting non-ferrous metals (optional)

3.0Kw Single bag 3-phase dust extractor or 5.5kw dual bag 3-phase dust extractor (optional)

5 Axis CNC Router Advantages

1. Diversified Control: Processing speed can control the working speed, traveling speed and dropping tool speed, which will improve the quality and efficiency greatly.

2. Humanized and beautiful design: Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages. Stop Emergency Buttons, emergent shutdown during unexpected accidents and do no harm to human. The intelligent processing cross-border protection function can prevent the excessive process caused by mechanical collision. Colorful machines' appearances and high-quality paint make the machine beautiful.

3. Strong machine body: reliable and durable with long working life.

4. Top-quality components will make the 5 axis CNC machine with high-precision and high-efficiency. HSD ATC spindle, Delta inverter, TBI ball screw, Yaskawa servo motors, OSAI control system and so on, all of these components will keep the machine in the best condition even after working for many years.

5. Easy and safe operation, low maintenance cost. You will quickly learn how to operate the machine safely, and free training in our factory will be offered. Less time and less money will be cost on the maintance because of the top quality of the 5 axis CNC router machine.

6. Many optional configurations and OEM services are available. According to your requirements, different configurations will be offered. OEM service is available for you.

 5 Axis CNC Router Parameter Configuration
