CNC Router 3d Model is the name that recently rises for the CNC router machine which can process three-dimensional workpieces. Compared with an ordinary CNC Router 3d Model , the biggest advantage of the 3D CNC router machine lies in the processing of 3D products. There are plenty of products in our life that can be made by a 3d CNC Wood Carving Router . For example, 3D advertising signs, artworks, crafts, statues, sculptures, staircase handrails, building columns, etc.
Product Details:
CNC Router 3d Model average cost
Most CNC machine tools cost tens of thousands of dollars. But before you faint from sticker shock, consider the long-term savings the machines provide.
The cost of 3d CNC router machines from US$10,000 to US$90,000.
Additional CNC router costs and expenses:
In addition to the machine itself, you also need to purchase a computer-aided design (CAD) software package to create a design. Those usually range from US$2,500 to US$10,000.
Training costs usually range from US$500 to US$1,000 per day. Depending on the knowledge level of your employees, this process may take several hours or days. Installation costs are also often between 500 and 1,000 US dollars per day.
Shipping costs start from a few hundred U.S. dollars and can reach up to several thousand U.S. dollars.
Some dealers offer packages that bundle machines, training, transportation, and installation costs. Therefore, before deciding to buy, be sure to ask if such a package is available.
Product Parameter:

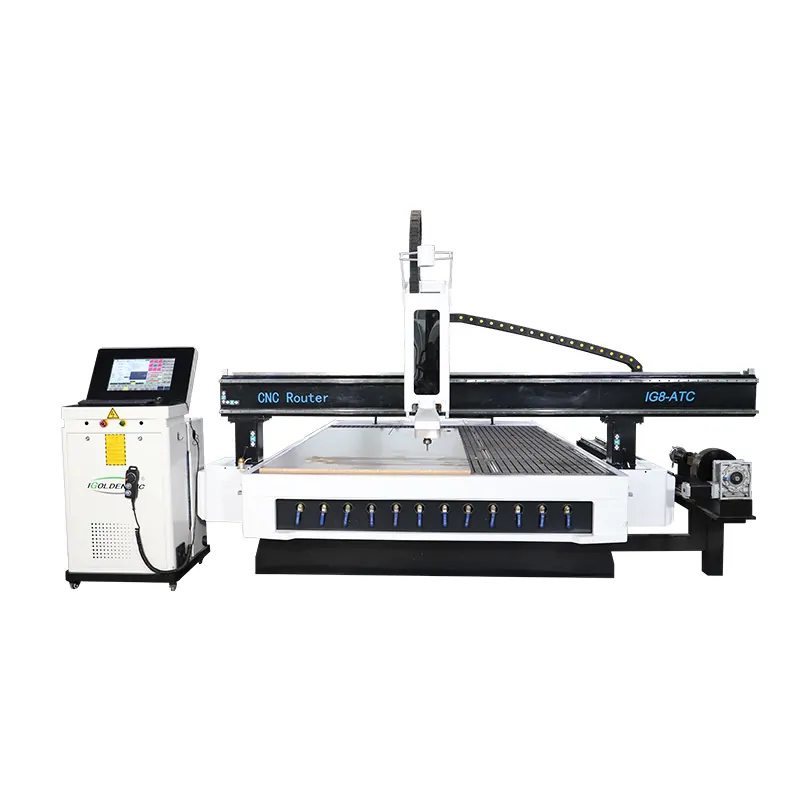

| Model | 2130 ATC CNC Router with rotary axis |
| Working area | 2100*3000*200mm |
| Spindle | HQD 9KW air cooling spindle |
| Inverter | Fuling |
| Motor | Dorna Ac servo motor |
| Driver | Dorna AC driver |
| Control System | Taiwan LNC 4axis + hand-wheel |
| Table | Vacuum & T-slot table with air cooling pump |
| Oil lubrication | Automatic lubrication |
| Limit | Omron limit |
| Transmission | XY axis helical rack Z axis Taiwan ball screw |
| Rail | X, Y, Z axis Taiwan HIWIN 25 Square guide rail |
| Screw | Z axis TBI 3210 ball screw |
| Bed | Thick steel welded big square tube |
| Repositioned Accuracy | ±0.02mm |
| Travelling Position Accuracy | ±0.02mm |
| Gangry | Strong frame |
| Cabinet | Independent cabinet |
| Voltage | 3 phase/380V |
| Rotary axis | With |
| Tools | 10 pieces |
| Oil misting system | With |
CNC Router 3d Model Application :
1. Advertising industry: Acrylic, two-color board, PVC, ABS board, aluminum-plastic board engraving and cutting, all kinds of signs, badges, signage, copper, fonts, all kinds of signs, trademarks and other materials.
2. Crafts industry: artificial stone crafts, souvenirs on the various types of text, graphics.
3. Mold processing: architectural model, physical model, bronzing mold, high frequency mode, micro injection mold, shoe mold, badge, embossing mold, biscuit, chocolate, candy mold.
4. Seal industry: Easily engraving on horns, plastics, organic boards, wood, storage mats, etc.
5.Woodworking industry: furniture decoration, musical instrument industry, wooden handicraft industry, large-area plate flat engraving, solid wood furniture, solid wood art murals, MDF paint-free doors, composite doors, cabinet doors, screen engravings, etc.
6.Mold industry: can engrave different molds, wood molds, aviation wood molds, propellers, automotive foam molds and so on.
