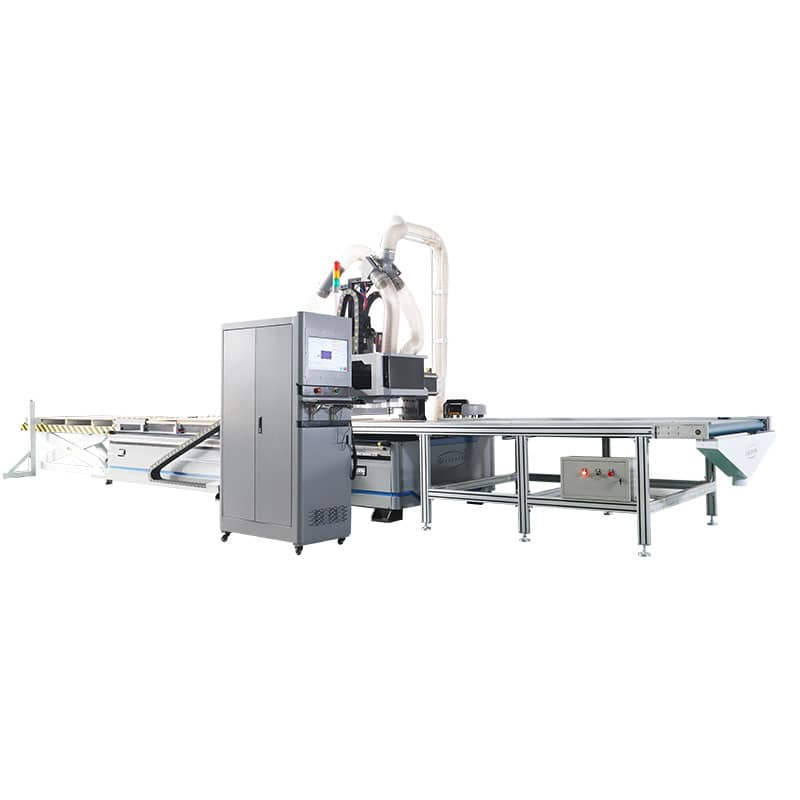

1530 ATC Wood Cnc Router for Furniture Making Machine

1530 CNC Nesting Machine For Wooden Furniture Description：

1530 CNC Nesting Machine for Wooden Furniture for sale, Best Price 5x10 CNC Sofa, Doors, Cabinet Making Machine with side carousel auto tool magazine for 3D Carving & Engraving of Wood Furniture Making. There are also dust covers for rail guide protection. The vacuum table helps fix materials on the table.

1530 ATC Wood CNC Router Features:

Compared with 1530 CNC Router Wood Working Machine,the machine was designed with carousel tool changer magazine.

Tools can be changed automatically in the engraving process, which is likely to ATC CNC Router Machine.

Like Auto Feeding Furniture Production Line, the machine was manufactured with Taiwan SYNTEC control system.

In fact, this machine has some similarities with 4*8 Nesting CNC machine. you can make a compare between them.

Please notice that the working size and other specifications can be made according to your special requirements.

1530 ATC Wood CNC Router For Furniture Making Machine Advantages：

1)Safety switch Schneider brand, when you open the control box, the electricity will be cut off.

2)Auto loading table, Unloading table automaticly, save your time.

3)Fast carving speed, Japan YASKAWA servo system 1KW , high precision helical rack drive, with the high power engraving spindle cutting faster.

4)High Z axis, can process more thicker materials.

1530 CNC Nesting Machine For Wooden Furniture Parameter

Nesting ATC CNC Router 1530 Details

1) Vacuum table: Double PVC layer, 6 vacuum zones 12 superstrong adsorption table for different panel size. minimum plate rach

25mm PVC table 35mm thickness each vacuum hole 8mm to make sure well adsobtion MDF wood .

2) Independent electric cabinet & control panel

3). The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum

productivity and zero down time.

4). Leading brand components such as Italian HSD spindle (automatic tool changer), Japanese Yaskawa servo motors, Taiwan Syntec

controller, Japan Shimpo reducer and transmissions ensure high efficiently.

5). High efficiency advanced automatic tool change program, without human intervention, program automatically.

6). Through industrial grade overall welding lathe bed with tempering and aging treatment, deformation is avoided and the

stability and processing precision of the machine toolare improved.

7). Carousel Tool Magazine can hold up to 12 tools or linear atc for HSKF63 or ISO30 . Adopted Yaskawa servo motor magazine to

ensure high repeatability, high efficiency.

8). Truly versatile: nesting, routing, vertical drilling, cutting, side milling and edge grinding all in one. It is well-suited

for panel furniture, office furniture, cabinets production.

9) heavy duty strutrue table tempering and vibration aging treatment ,using 5 cnc metal cnc milling to make sure high precision .

Product  Details

	12 automatic tool changers
	LNC System
	Automatic loading and unloading
	9KW HQD air cooled spindle +5+4Vertical Drilling Head
	Vacuum adsorption table
	Hinwin guide and  rack
	Fuling inverter | SHIMPO reducer

Product  Details

1530 ATC CNC Router Application：

automatic loading and unloading CNC machine Sample disply

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors,sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertisingmaterials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
