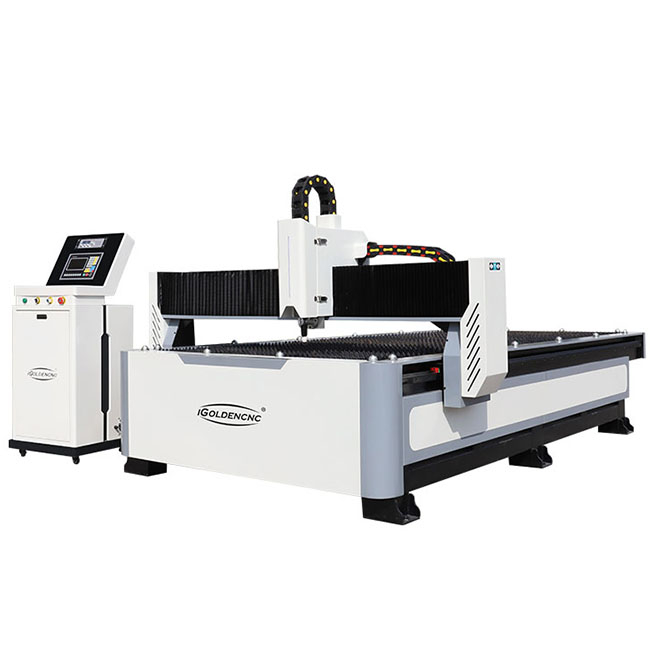

CNC Plasma Cutting Machine Description:
Flat CNC plasma cutting machine is the most popular plasma cutting machine. It is the perfect choice for cutting thick metal plates. It saves time and labour costs. This is the characteristic of iGOLDENCNC products, combined with a set of competitive configurations.
Flat CNC Plasma Cutting Machine Features:
The beam uses light structural design,with good rigidity structure, light deadweight .
The gantry structure, Y axis used dual-motor dual-driven system,X,Y,Z axis all use dual-straight rail that make the machine driving smoothly with high-precision.
Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.
Equipped with other advertise equipment (blister/engraving machine) . Improve the efficiency of several times.
Cutting mouth is small, tidy,and avoid a second dressing processing.
It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates.
The numerical control system disposes high, the automatic striking arc, the performance is stable.
Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTO CAD softwares produce DXF form documents.
Plasma Cutting Machine Parameter Configuration
| Description | Parameters |
|---|---|
| Working area | 1300x2500mm |
| Machine Body | Thickened Square Tube Welding Body |
| Worktable | Sawtooth |
| Reducer | Japan SHIMPO |
| Control System | STARFIRE with THC |
| Plasma Power | HUAYUAN |
| Lubrication | Automatic |
| Transmission | X,Y-helical rack pinion, Z ball screw |
| Drive system | Japan servo motor and drivers |
| Power | 63A/ 100A/120A/160A/200A |
| Cutting Torch Path | ≤200mm |
| Positioning Accuracy | 0.2mm |
| X, Y Axis Resolution | 0.1mm |
| Working Voltage | 380V/50Hz |
Plasma cutting head with Anti-collision function
STARFIRE with THC Control System
Sawtooth worktable
Loading roller
High-end drive system
Scrap push-pull box for easy cleaning
HUAYUAN Plasma Power/High-power fan
CNC Plasma Machine Application
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.
About Us
Shandong iGolden CNC Technology Co., Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.
FAQ:
1.How much is the plasma cutting machine?
For the plasma cutter, the price is different according to the function and configuration. Please contact us for more details.
2.How to choose the suitable power of the plasma?
It depend on the material thickness you want to processing and the running frequency of the machine. Please let us know which material do you want to process and the thickness.
3.What's material available for the plasma cutting machine?
The plasma cutting machine is only for metal sheet, such as stainless steel, carbon steel, copper, aluminum, iron, galvanized, etc..
