iGCL-RC
iGOLDENLASER
iGOLDEN-iGCL-RC

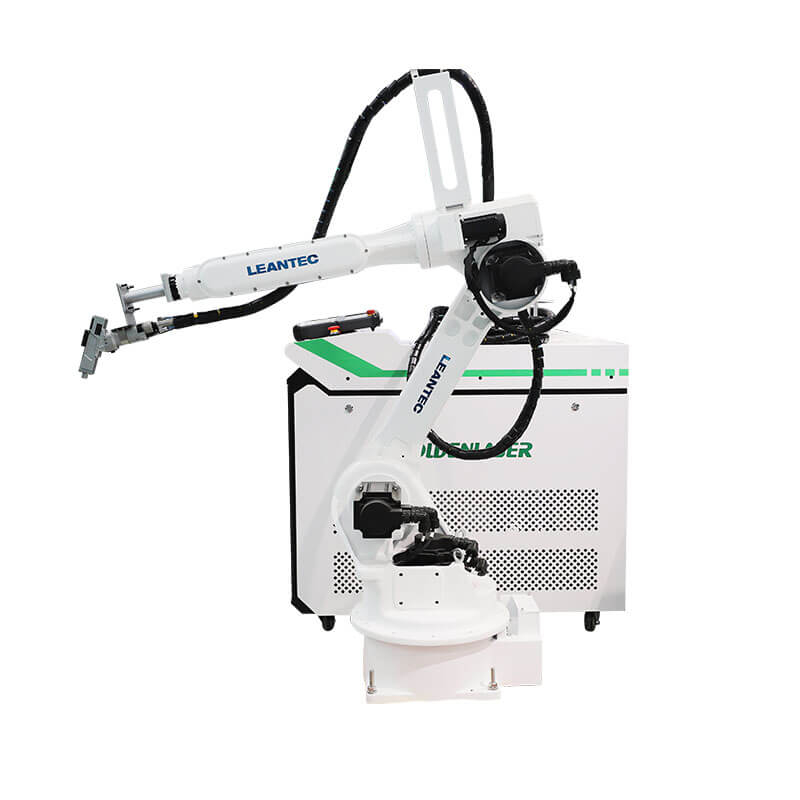

Robot laser cleaning machine, using high frequency and high energy laser pulse irradiation of the workpiece surface, the surface oil, rust or coating instant evaporation or peeling, high-speed and effective removal of cleaning object surface attached or surface coating, so as to achieve the process of clean cleaning object;
Six-axis robot linkage, high positioning accuracy, large processing range, easy to realize three-dimensional workpiece cleaning;
The combination of laser cleaning and robot has the advantages of automation, intelligence and high flexibility, which can be used for the cleaning of complex surface materials, more efficient and fast.
Advanced Performance
l Robot six-axis linkage, high positioning accuracy, large processing range, easy to achieve all kinds of workpiece cleaning;
l High-end standard laser head, a variety of cleaning modes, can achieve precise position, precise size selective cleaning;
l Using non-contact cleaning, non-contact cleaning, no damage to the parts matrix, fast cleaning speed, high precision;
l No chemical cleaning solution, no consumables, safety and environmental protection;
l They are used in automobile manufacturing, machining, electronic processing, heritage restoration, die and mold industry, shipping industry, food processing, petrochemical industry, etc.
SYNTEC six-axis robot
The robot cleaning machine is ideal to process complex 3D parts such as engine blocks, transmission cases and wheels
SYNTEC control system
The standard HMI control panel provides direct access to laser parameters near the machine.
Hanli water cooler
The cleaning head and the laser source are cooled separately, the laser output is stable, the speed is fast and energy saving.
Laser cleaning head
The internal core structure is fully enclosed to prevent the optical part from being polluted and damaged.
TECHNICAL PARAMETERTechnical index | Parameter | ||
Model | iGCL-RC- 1500 | iGCL-RC- 2000 | iGCL-RC- 3000 |
Laser power | 1500W | 2000W | 3000W |
Laser wavelength | 1080±10nm | ||
Robot | SYNTEC cleaning robot | ||
Max. load on wrist | 20KG | ||
Repositioning accuracy | ±0.08mm | ||
Range of motion | J1 | ±170° | |
J2 | 135/-90° | ||
J3 | 75/-140° | ||
J4 | ±170° | ||
J5 | ±130° | ||
J6 | ±360° | ||
Max. speed | J1 | 190º/s | |
J2 | 140º/s | ||
J3 | 140º/s | ||
J4 | 320º/s | ||
J5 | 150º/s | ||
J6 | 320º/s | ||
Run-length | 0-300mm | ||
Focal length | 500-1000mm | ||
Cleaning mode | Supports multiple cleaning modes (see corresponding system for details) | ||
Voltage | 220V±10%/380V±10% | ||
Total power | ≤8kw | ≤10kw | ≤12kw |
Gross weight | 268KG（Robor）+260KG（The Cleaning machine） | ||
Remarks: Other brand robots can be customized | |||
Laser cleaning can not only be used to clean organic pollutants, can also be used to clean inorganic, including metal corrosion, metal particles, dust, can be used for mold cleaning, cleaning equipment, electronic industry, precision machinery cleaning, cultural relics Cleaning and so on.
Application Materials:
Portable fiber laser cleaner rust removal laser cleaning machine is suitable for the precision machining of stainless steel, copper, aluminum and other materials. It has small thermal distortion and high processing precision. It has the characteristics of narrow pulse width and high peak power. Its compact structure, easy system integration.
