iGC-PS
iGOLDENCNC

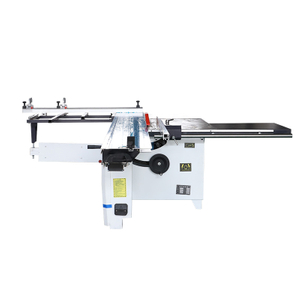

The sliding panel saw machine , also known as panel saw, is mainly for the professional handyman and the entrepreneur who wants to meet his or her staff to work more efficiently. The added value of a best sliding panel saw is that it is faster, safer and more precise. Another great value of a panel saw is the versatility of this precision saw.
With a regular panel saw table, the craftsman is standing directly in line with the blade; with a sliding table saw, the craftsman is standing beside it, not in line with it. Feeding a workpiece through the blade simply by moving the table the workpiece sits on makes the task both easy and safe. Clamps hold the workpiece in place, and the craftsman is not in the line of danger.
Sliding table panel saws have a sliding table that allows the operator to push the board manually through the saw blade.
On some saws the settings are all manually adjusted, but on others they can be computer controlled.
1. High precision machining equipment can ensure the high quality and fast&stable delivery time.
2. Using our own laser machine to cutting machine body,so the machine is more beautiful and with high precision.
3. The saw shaft are all precision-machined by CNC lathes and CNC grinders. The error is almost 0.
4. All the working area and specifications can be customized according to your requests.
The composition of the sliding panel saw machine :
1) frame; 2) main saw part; 3) groove saw part; 4) transverse guide baffle; 5) fixed table; 6) sliding table; 7) oblique saw guide; 8) bracket; 9) Saw angle display device; 10) side guide baffle.
2.1 Saw blades size and power:
The main structural feature of precision panel saws is the use of two saw blades, the main saw blade and the groove saw blade. When cutting, groove saw pre-cut boards in advance, to make a groove on the bottom which depth from 1 to 2 mm and width of 0.1 to 0.2 mm thicker than the main saw blade. It can ensure the edge of the kerf does not tear when the main blade is cutting and get a good sawing quality. The groove blade has a small diameter, usually around 120 mm, and is driven by a separate motor. The saw blade speed is generally above 9000r/min, and the cutting speed is generally 56-60m/s. The groove saw blade is required to align with the main saw blade in the same vertical plane.
The diameter of the main saw blade typically is 300-400 mm, is driven by the main motor through the V-belt. According to the main saw blade diameter and the type of processing plate, the main saw blade can be changed by the tower wheel. The tower wheel shifting structure is simple and belongs to constant power output, which is more in line with the actual needs of wood processing. The power of the main motor is generally 4 to 9 kW. In order to make the speed adjustment easy to use a special V-belt, it is guaranteed that a single belt can meet the required power transmission. The rotation speed of the main saw blade is generally 3000-6000r/min, and the distance between the main saw blade and the groove saw blade is generally about 100 mm.
2.2 Saw blades processing:
Another main structural feature of the sliding table saw is that groove saw blade and main saw blade are fixed, and the moving table made of the aluminum profile carrying the processed plate member is moved forward and backward to finish the sawing process. Due to the special structure of the guide plate of the moving table, the manual sliding and feeding is light and labor-saving, and the machining precision is high.
2.3. Panel saw bed
Most of the bed of precision cutting saws are welded with steel plates with a thickness of 5~6mm, which is stable and beautiful. It can ensure that the early sawing and cutting process does not produce tilting and twisting. The fixed workbench is fixed on the top of the bed. The casting part is required to be flat and not deformed, and is provided with a longitudinal cutting guide.
We will provide a manual with simple troubleshooting of the machine, which will help you deal with common problems on the machine.
We will provide a lot of technical support and after-sale service online, just like detailed technical and installation instructions. For example, when you encounter a maintenance problem, we will make a complete and detailed video of the operation process based on the problem, it seems that I am on your side to guide you on how to deal with the problem.
3-Fast spare parts and technical assistance
Our large amount of spare parts inventory means that replacement parts will be delivered to you as soon as you are in demand. Get technical help right away by email or phone.
4-Free training services
We insist on hands-on training for customers on each machine sold. The training is free and we will cooperate with you to ensure that you operate comfortably with your new machine.
We feel proud of our expertise and educational ability for installing, properly maintaining and most effectively using iGOLDENCNC machines.
5-Special design, customized, OEM order
iGOLDENCNC is willing to help you realize your special ideas and requirements with our innovative ability. Therefore, when you need specially designed or customized machines and OEM machines, please contact us immediately.
In 2012, after the woodworking machinery and panel furniture production line is used for 4 years, we were deeply troubled by the high price and low quality of the woodworking machinery market. After-sales problems such as precision inaccuracy and flying dust often occur during using, so iGOLDENCNC was created. iGOLDENCNC hired a team of engineers with 20 years of industry experience. Each accessory was tested and screened more than 30 times to produce the first whole-house custom furniture production line. And in the same year, the production line was brought to the CIFM exhibition, and got more attention and praise from professional customers and received dozens of orders.
Our products include: co2 laser engraving machine, co2 laser cutting machine, laser marking machine, fiber laser cutting machine, cnc router machine, metal plasma cutting machine and so on .
iGOLDENCNC was officially established, achieving breakthrough from 0 to 1, and 1 to 100.
Do I need to calibrate the CNC router?
Yes. The CNC router must be calibrated on a regular basis to avoid any potential error in the machining process, in order to meet the customer’s demands as always. In accordance with the manufacturer’s original specifications, CNC machine calibration aims to diagnose and correct errors that may deviate over time.
How to choose between the linear ATC or carousel ATC?
Carousel ATC tool change action more fast. And the linear ATC structure is simple and reliable, but spend more time on tool change.
Do I need to replace the collets of the CNC router?
Yes. The collet is a small part used to physically secure a CNC router cutter to the spindle motor shaft of the CNC router. The collets fall into multiple types and sizes according to the design of CNC router spindle motor shaft and the cutter holder. It is necessary to replace the collets regularly in the daily maintenance of the CNC router. This can ensure better performance, longer service life and better results of the CNC router cutters. If you use your CNC router every day, you may need to replace the collets every three months.
Are CNC machines equipped with software?
Yes, you can rest assured that our machine is equipped with Type3, ArtCAM and other software to facilitate your operation of the machine.
Is CNC machine difficult for beginners?
If you have the basic knowledge of computer and are willing to spend a little time to learn, then it will be very simple, we have provided help for many CNC machine beginners, it is not difficult. When you order CNC machine tools from iGOLDENCNC, we will send you user manuals and operating videos. You can also get 24/7 free online services via email, whatsapp, Skype, etc. real-time chat or remote desktop.
Do you also sell CNC accessories?
Yes, we offer customer with CNC accessories including CNC router machine accessories (CNC router parts, CNC router bits, CNC router tools), CNC laser machine parts.
How long is the delivery time?
For standard machines, it would be 7-10 days;
For non-standard machines and customized machines according to client s specific requirements, it would be 15-20 days.
The exact time will be depended on your order quantity and customized level.
This is the first time I buy the machine, is it easy to operate?
There are guide video that show how to use machine and English operation manual send to you with machine.
If it is hard for you learning, we can also help you by “Team viewer”online, with Wechat or Skype explain.
Return Policy
New CNC machines from iGOLDENCNC carry a 2-years warranty that’s effective from the date of shipping. CNC machines sold through dealers must be registered with iGOLDENCNC within 30 days of purchase to be covered by this warranty. iGOLDENCNC guarantees all new machines sold to be freed from manufacturers defective workmanship, parts and materials. We’ll repair or replace, for free of charge, any parts determined by iGOLDENCNC to be a manufacturer’s defect. We require that the defective item/part be returned to iGOLDENCNC with the complaint. within the event the item/part is decided to be damaged thanks to lack of maintenance, cleaning, and/or misuse/abuse, the customer are going to be liable for the value to exchange the item/part, plus all related shipping charges. This limited warranty doesn’t apply to natural disasters; acts of terrorism; normal wear and tear; product failure thanks to lack of maintenance or cleaning; damage caused accidentally , neglect, lack of or inadequate dust collection; and/or misuse/abuse or damage caused where repair or alterations are made or attempted by others.
All items being returned to iGOLDENCNC must have a return merchandise authorization number (RMA) issued by the Customer Service Department. Products must be returned within 30 days from delivery date. No merchandise shall be returned without an RMA number. Unapproved returns are subject to a 30% stocking fee plus trip shipping charges.
iGOLDENCNC isn’t liable for additional tools or modifications sold or performed (other than from/by iGOLDENCNC) on any iGOLDENCNC CNC machine. Warranty could also be voided upon the addition of such described tools and/or modifications, determined on a case-by-case basis by iGOLDENCNC.
Normal user alignment, adjustment, tuning, and machine settings aren’t covered by this warranty. it’s the responsibility of the user to know basic CNC machinery settings and procedures and to properly maintain the equipment in accordance with the standards provided by the manufacturer.
Parts, under warranty, are shipped at iGOLDENCNC’s cost either by carrier , FEDEX ground service or an identical method. Technical support to put in replacement parts is primarily provided by phone, fax, e-mail or iGOLDENCNC Customer Support Website. The labor required to put in replacement parts is that the responsibility of the user.
iGOLDENCNC isn’t liable for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to iGOLDENCNC within day of delivery. Please contact our Customer Service Department for more information.
Only new CNC machines sold to the first owner are covered by this warranty. For warranty repair information, call 0086-18660188728.
When a return merchandise authorization number (RMA) is issued, the customer has 30 days to return the part; otherwise, that number is canceled and therefore the return won’t be accepted. No merchandise shall be returned without an RMA number.
Replacement parts/ accessories/ machines are sent freed from charge providing the item being replaced is returned to iGOLDENCNC within 30 days.
Please keep all the packaging materials to repack the parts / accessories / machine being replaced. If the item may be a small item a return label are going to be enclosed in your package. don’t throw this away. Please package the item and write both inside and out of doors of the box the RMA number which was provided through an email and or verbally at the time of the request.
In the event that the item (CNC machine) isn’t returned to iGOLDENCNC, you’ll be liable for the value of the item. Your account are going to be billed. No service are going to be given until this balance is paid or the item returned in fitness.
