iGS-LSM
iGOLDEN
LSM
Availability: | |
---|---|

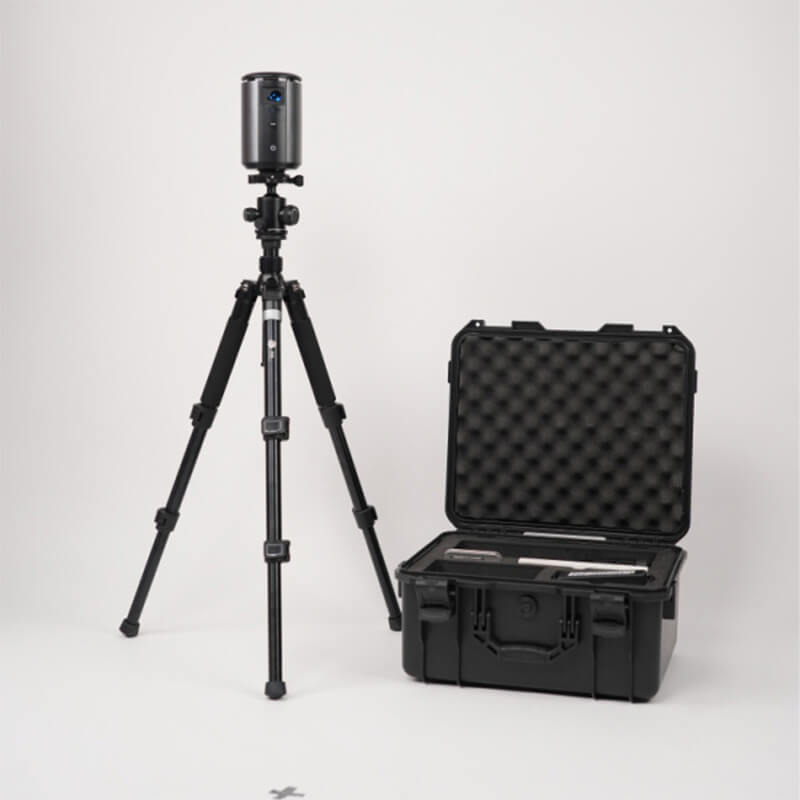

This 3D Kitchen Bathroom Countertop Measuring Scanner uses advanced laser technology. It can provide high-precision 3D scanning and measurement results, usually at the millimeter level. And it can complete large-area scanning and drawing tasks in a short time. Therefore, this machine saves cost and time for the operator.
This system is applied to the auxiliary design of home table surface processing, mainly based on Android system platform, including Harmony OS 2.0 and above. Using Leica DST 360° bidirectional angle sensor, Leica series laser rangefinder, auxiliary tripod and software in your tablets or mobile phones.
Collect laser point distance data,
Project double angle and dots sequence,
Construct a closed plane
Click to eliminate right Angle intersections
Dimension each side, distance unit is mm, allowing manual modification
Water back, hang down, the default color is highlighted and the length is calculated automatically. The value can be manually modified, allowing you to click on each edge to add or delete.
Set basic parameters manually
The opening mode is divided into circle, rectangle, ellipse, input manual data, display in table position.
Export DXF file, can be connected to CAD system.
