iGCL-AC(S)
iGOLDENLASER
iGCL-AC(S)5

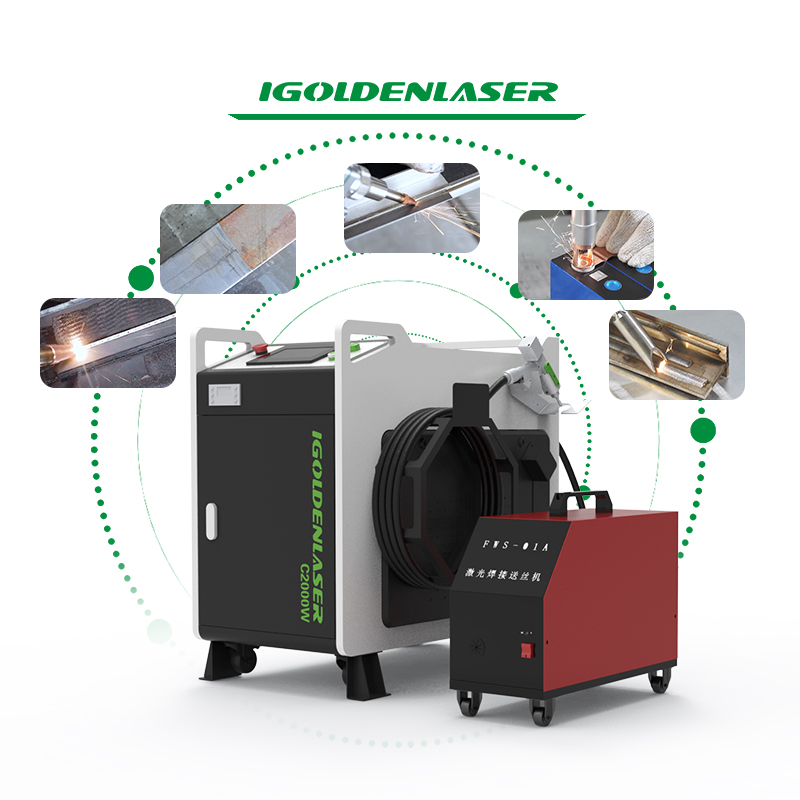

laser welding machine with 5 in 1 function. Laser welding, laser cutting, laser cleaning and weld cleaning in 1 compact device. Laser welding has many advantages over conventional welding techniques – the experts know it and have been using it for a long time. Now all the benefits of laser welding directly in your hands.
To provide a more efficient and flexible solution for the market, the system comes with a process parameter library for common materials and thicknesses. For different application scenarios, it can easily and quickly replace the corresponding nozzle of the gun head, plug and play, so that the cumbersome processing becomes simple and the processing efficiency is higher.
Laser five-in-one parameters | |
Item | Dual axis |
Fiber Interface | QBH |
Wavelength range | 1070±20nm |
Power | ≤3000W |
Collimating focal length | 50mm |
Focus length | 150mm |
Focus adjustment range | -10mm～+10mm |
Spot adjustment range | 0～5mm |
Swing type | Welding (seven welding modes) Cleaning (ten cleaning modes) |
Auxiliary pressure | ≤1Mpa |
Laser head weight | 0.8Kg |
The hand-held fiber laser welding machine is used for welding various metal materials, and can weld stainless steel mirror characters, stainless steel electroplated characters, precision stainless steel characters, iron paint characters, etc. Used in lighting, mold and other industries, communication equipment, medical treatment, electronics, copper parts and small welding processing industries.

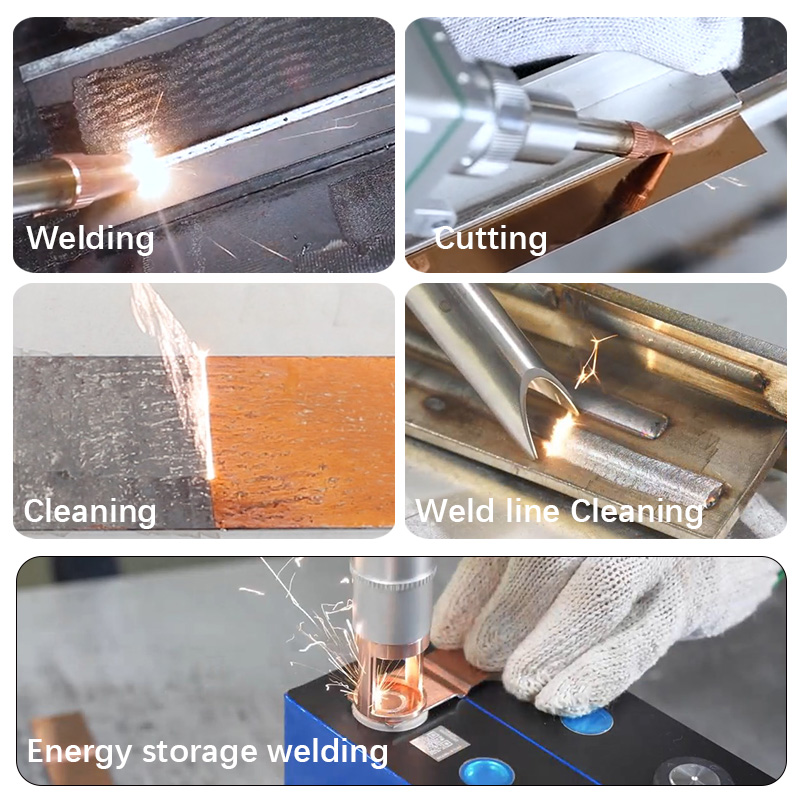

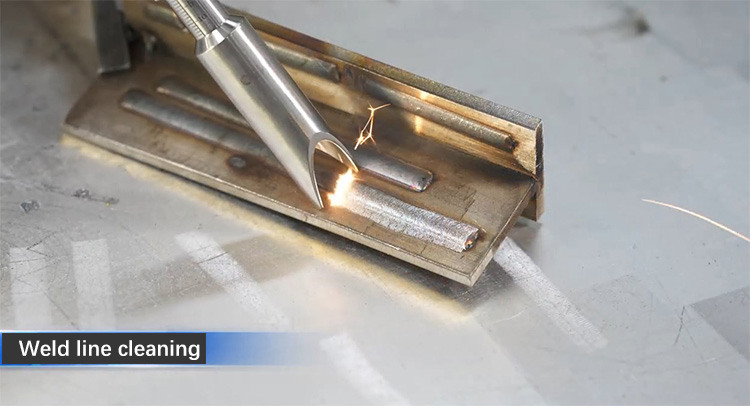

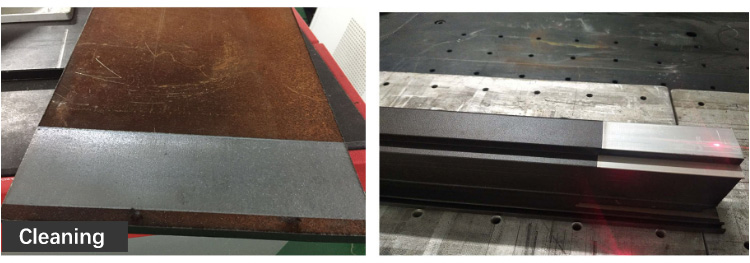

Ø Portable and flexible, easy to operate, can meet the welding/cleaning/cutting/pass cleaning/energy storage welding five-in-one, no need to change the gun head;
Ø Laser friends invited professional international translation, can be customized a variety of language;
Ø Handheld vibration mirror oscillating head light is adjustable, acme light, feel is first-class, deeper penetration, etc, to adapt to different customers should scene;
Ø Portable welding head adopts protection lens and focus lens, collimating lens are all made of withdrawable type installation, convenient customer self repair change, constantly monitor the temperature;
Ø USES the concept of human body engineering and product design, fully consider the applicability of the welding process and the long-term use of comfort;
Ø System constantly monitor the running status of laser, cold water machine, the control panel operation monitoring and collect the running state.
