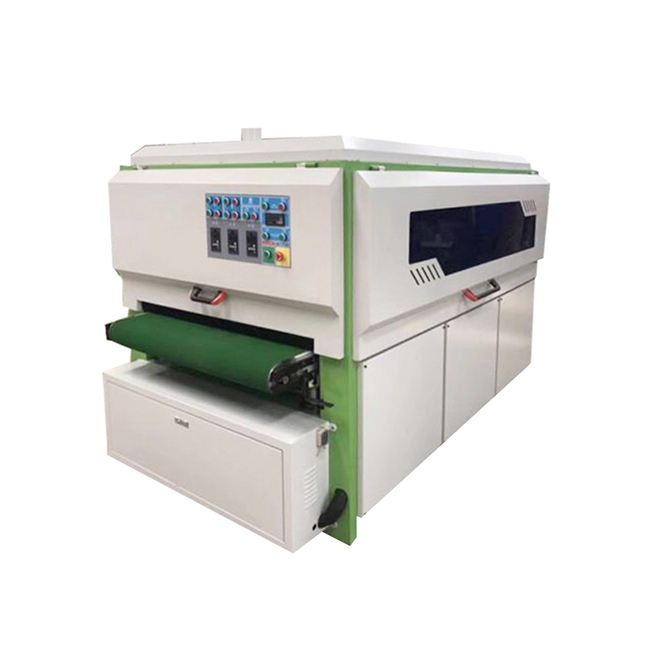

Automatic Wood Sanding Machine

Share to:
CNC sanding machine is suitable for grinding and polishing all kinds of solid wood doors, European-style wooden doors, cabinet doors, plastic doors, shutters, furniture parts, carved flower panels, hollow grids, white blanks, primers and abrasive cloth strips of different thicknesses. The polishing effect can reach 80%, which greatly saves labour and improves efficiency.
  • 4696-5696$

Video


More furniture making machine information, click here and learn more iGOLDENCNC


Product Description

主图-02

主图-03



  • A new type of high-efficiency wood product surface processing equipment independently developed by the introduction of European technology, mainly for the rough grinding of wood products and primer sanding.

  • Using frequency conversion speed regulation, the speed can be adjusted freely, and the appropriate feeding speed can be selected to ensure the sanding quality of the workpiece.

  • The rough grinding roller is composed of sisal brush and emery cloth. Different combinations of emery cloth and brush can be provided, and the brush and emery cloth can be replaced separately to save cost.

  • Grinding and polishing are easy, high-quality and efficient, which greatly improves production efficiency and reduces production costs.


Parameters

Description

Parameters

Max processing thickness

<10cm

Max processing length

>30cm

Max processing width

<100cm

Transport motor power

1.1kw

Sander roller motor power

3kw

Disc motor power

2.2kw

Number of disc

9

power suppl

380v/50hz

Total power

12.7Kw

Size (l* w* h)

3000*1800*1700mm

Weight

1800KG


详情_06详情_07

Application

Scope of application

Scope of application


Suitable for all kinds of solid wood, density board, laminated board and other materials linear (such as door edge,Door frames, skirting lines, phase frames, shutters), L-shaped wooden lines and door panels Coarse, fine sanding, sanding and polishing of surface, special-shaped surface, flat surface and curved surface are Ideal equipment for producing doors and windows, kitchenware and other special-shaped sanding.


Company Information

Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc. And welcome to visit us for more choices.

igoldencnc


FAQ:


1.What is the difference of the sanding cnc machine and polishing cnc machine?

Sanding machine uses the cutting effect of grit to smooth the processing marks, burrs and stains on the surface of the object. The polishing machine uses polishing wax to fill the pits on the surface of the object to make the surface of the object more flat.
After finishing sanding working ,then polishing works.


2.How many types of sanding machines do you have?

Generally speaking, standard sanding machine including cnc side sanding machine, cnc flat surface sanding machine, cnc curved surface sanding machine.


3.It is available to customize if from you?

We can customize it accordance with your materials size, normally, it is 1 meter width for cabinet door making, and 1.3 meter width for interior doors making.
