iGS-B
iGOLDEN
iGS-BS

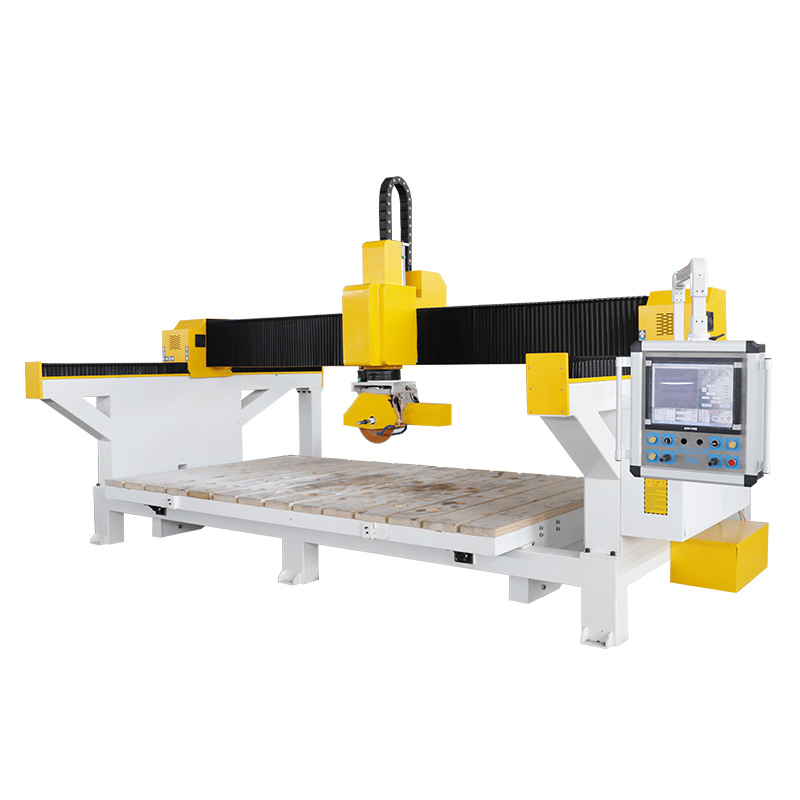

Bridge Cutting Machine Description：
Bridge cutting machine is suitable both for small and big factory. This machine is good for cutting marble and granite in a manual or automatic way.
Stone Bridge Saw Cutter Feature:
By using advanced micro computer control system to achieve multi programming methods, including manual programming or PC programming , this machine can achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing, slotting, kitchen countertop processing, special shape processing and other operations.
Stone Bridge Saw Machine Parameter:
| Model | iGS-B Bridge Saw |
| Working table size | 3000*2000mm |
| Overall size | 4500*2280*2100mm |
| X-axis working stroke | 3000mm |
| Y-working stroke | 2000mm |
| Z-working stroke | 260mm |
| A-working stroke | 360°free rotation |
| Pneumatic ball | easy to move marble |
| Reversal table | for easy loading |
| Control system | Control system |
| The machine head | automatically flips 0-45-90 degrees |
| X/Y axis cutting speed | X/Y axis cutting speed |
| Z axis cutting speed | Z axis cutting speed |
| A cutting speed | 0-7r/min |
| Cutting thickness | 100mm |
| Processing precision | 350mm |
| Red light positioning | Included (Infrared cutting reference) |
| Programming method 1 | Manual programming |
| Programming method 2 | Image input |
| Control method | CNC |
| Power | 4000W |
| Working voltage | 380V/50HZ |
| R.P.M | 2800r/min |
| Weight | 2500kg |
The Detail
The machine head automatically flips ±360 degrees
Easy to switch between cutting and drilling
The worktable can be turned left and right for easy loading and unloading
The table top roller can be raised to facilitate grinding and moving the plate
Infrared Localization,convenient to observe and adjust
（Option）3D Measuring Scanner
3D Kitchen Bathroom Countertop Measuring Scanner with Laser Templator，In combination with our custom designed software, it provides easy and precise measurement of countertops and other surfaces in the stone industry.
The Sample
The high-efficiency stone bridge cutting machine designed by iGOLDENCNC adopts high-strength mechanical structure, which is very suitable for manufacturers who process special-shaped stone in batches. Imported linear guide rails are used to ensure accuracy and provide a set of competitive configurations. Popular applications include:
>Decoration industry: special-shaped lines and relief carvings of stone background walls;
>Stone countertops with digging basin holes and European borders: suitable for cabinet artificial stone, quartz stone, granite, marble countertops and sinks, kitchen countertops, bathroom countertops, special-shaped bar counters, stone coffee table countertops, basin hole cutting, back-arc water forming And polishing, etc.;
>45-degree side cutting, 90-degree right angle splicing and special-shaped processing;
>Drilling, grinding, trimming, carving, cutting, polishing and engraving of other special-shaped stones, ceramics, glass and ceramic stones.
CNC Bridge Stone Saw Applications:
Marble, Granite, standstone,glass,headstone, tablet,such as ceramic engraving and cutting machine. Have mainly three functions: cutting, polishing the edge, cut hole in sink.
