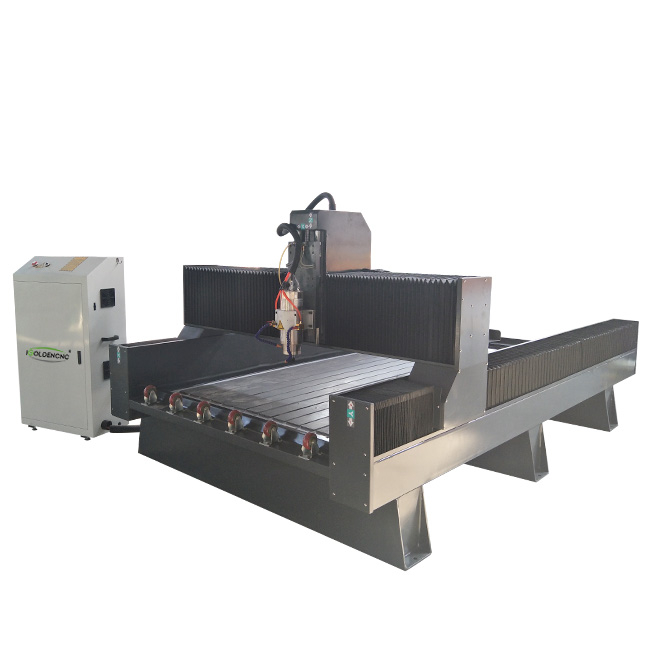

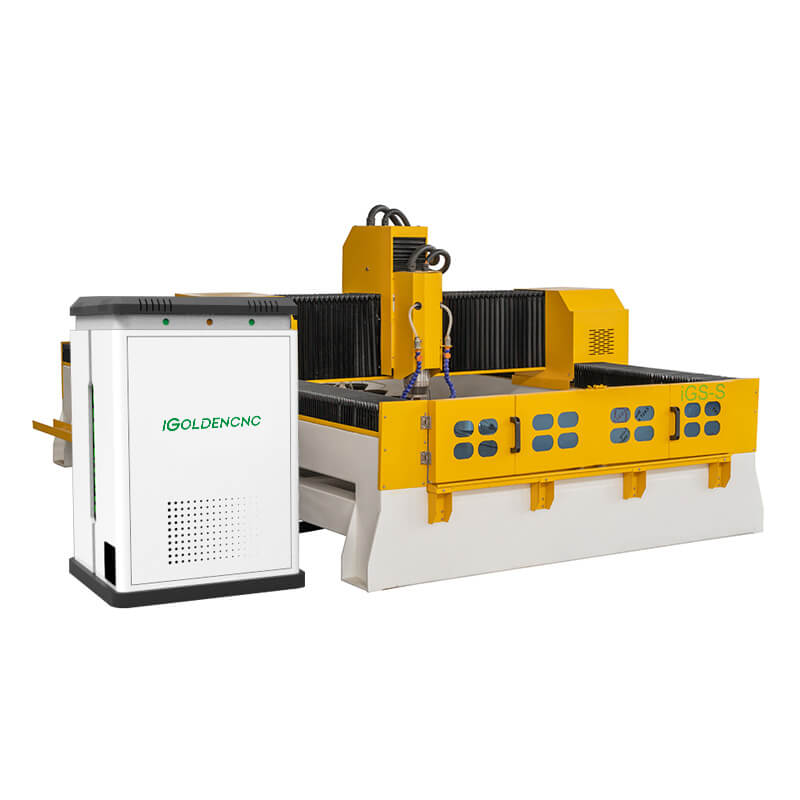

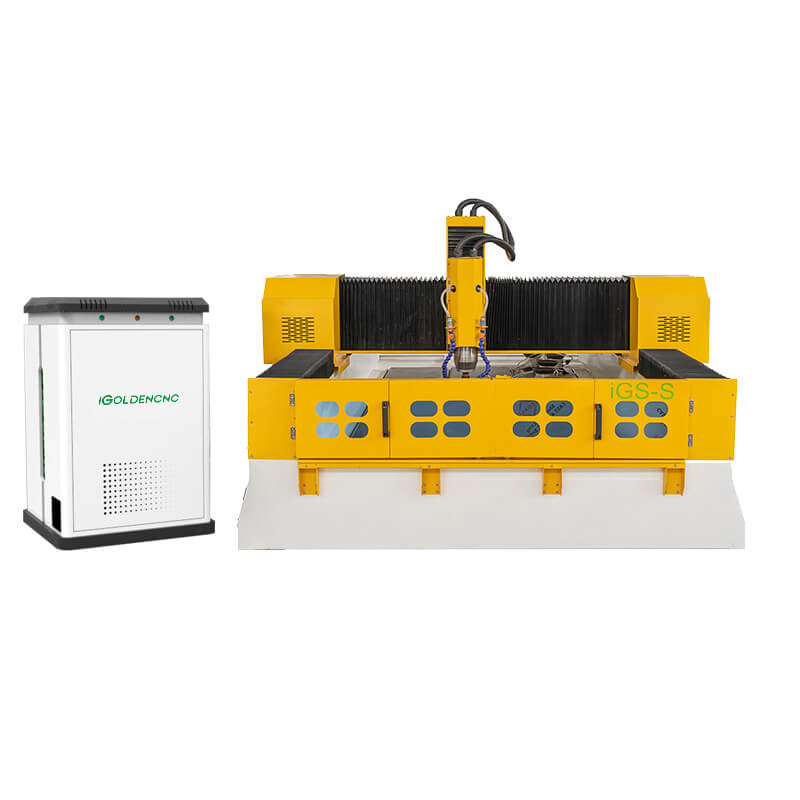

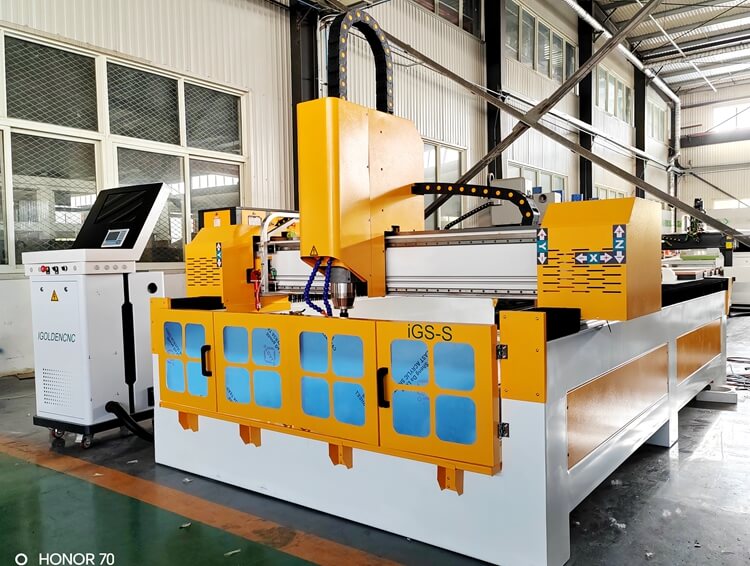

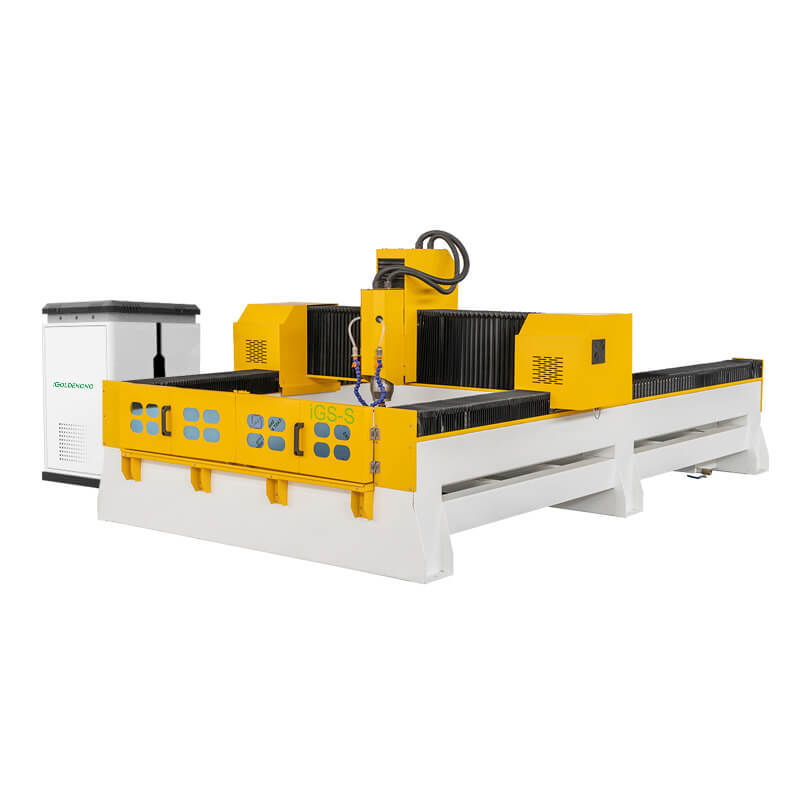

Stone Carving Machine Description：
The affordable stone carving machine designed by iGOLDENCNC uses a high-strength mechanical structure, which is very suitable for manufacturers in the stone processing industry.
CNC Stone Carving Machine Features:
Lathe bed welded with thick channel steels and square tubes;Processed by high temperature tempering treatment and vibrating stress relief(VSR) to reduce residual stress,good stability,no deformation.
Granite cutting machine with high speed water cooling spindle and high performance subdivision driver ensure work for long time.
With water tank and double water cooling system,high efficient works.
Special 3axis dust-proof system,protect guides and higher efficiency.
With practical and easilylearned software,conveniently check the moving path of tool,and adjust the processing depth of Z axis and the speed of motor.
Granite Monument Engraving Machines Technical Data：
| X, Y Axis Working Area | mm | 1300*2500 |
| Z Axis Working Height | mm | 500 |
| Positioning Accuracy | mm | 0.05 |
| Re-positioning Accuracy | mm | 0.02 |
| Body Structure | Welding Body | |
| X, Y Axis Structure | Linear Guide Rail, Gear Rack | |
| Z Axis Structure | Linear Guide Rail, Screw | |
| Max. Running Speed | mm/min | 20000 |
| Max. Working Speed | mm/min | 8000 |
| Spindle | kw | 4.5kw Water-cooling Spindle（Optioned） |
| Spindle RPM | rpm/min | 24000 |
| Working Voltage | V/Hz | AC 380V±10%/50-60Hz |
| Machine Weight | kg | 1400/1800 |
Tombstone Engraving Machine Configuration：
| Spindle | HQD Water-cooling Spindle (Italy HSD Spindle Optioned) | Machine Body | Heavy-duty Split-type Welding Body, Fixed with Screw |
| Worktable | Complex Worktable (Aluminum Profile+PVC+S.S. Sink) | Control System | DSP/ NCSTUDIO（Taiwan SYNTEC System Optioned） |
| Ball Screw | Taiwan TBI | Guide Rails | Taiwan HIWIN |
| Gear Rack | Taiwan T-WIN | Reducer | Japan SHIMPO |
| Electric Components | France SCHNEIDER | Frequency Converter | Taiwan DELTA |
| Driver | LEADSHINE Stepper Motor（Japan YASKAWA Servo Motor optioned） | Lubrication System | Automatic Lubrication Device (Optioned) |
| Optioned | Rotary Device, Automatic Tool Sensor, Swing Head, Covered Door | ||
Size：
CNC Stone Carving And Engraving Configuration:
HQD 4.5kw water cooling spindle
HIWIN guide rails | TBI ball screw
LEADSHINE Step Drive and Stepper Motor | Japan SHIMPO reducer
CNC Stone Carving Machine Application:
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
Stoneworks: 3D/2D engraving, Embossment, Line engraving Cutting, Edge inversing, Drilling on Natural stones, Granites, Artifical stones, Tombstones, Milestones, Ceramic, etc.
Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
iGOLDENCNC Factory View
Customer Visiting
iGOLDENCNC Service
| Pre-sales |
| > Free pre-sale consultation |
| > Free sample testing |
| > Professional CNC solutions |
| > Customer reception |
| > Fast delivery within 7 days(Available in stock) |
| > Customized machines delivered within 30 days |
| After-sales |
| > 2-year warranty |
| > Fast feedback and after-sales service in 12 hours |
| > Fast spare parts and technical assistance |
| > Free training services |
| > Special design, customized, OEM order |
