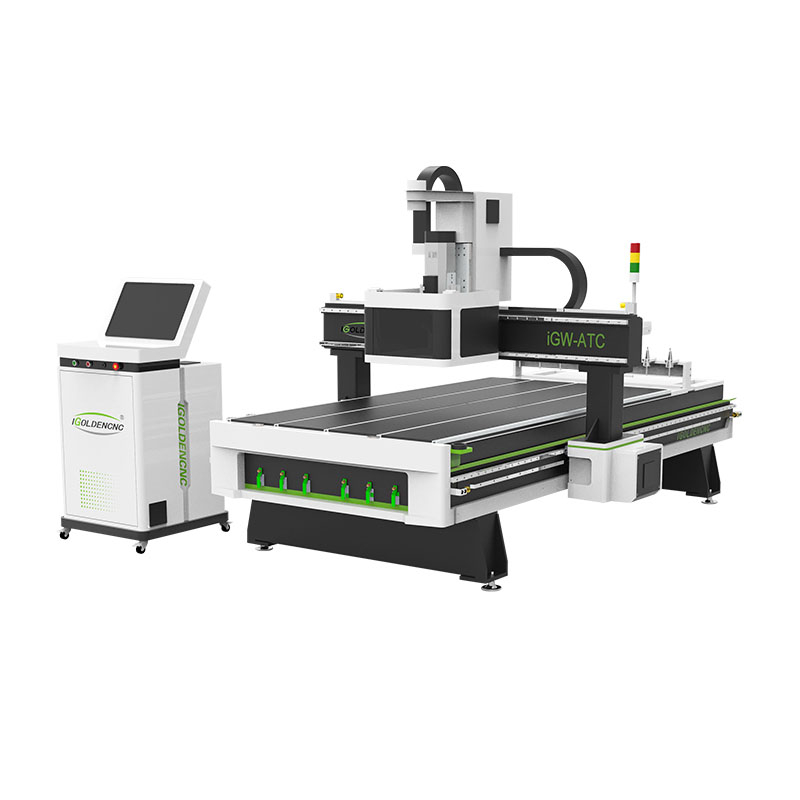

ATC CNC Router With Automatic Tool Changer

Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing. It can be equipped with 6, 8, 10, 12 tools according to the different production process requirements of customers. There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
Availability:


ATC CNC Router With Automatic Tool Changer Description:

Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing. It can be equipped with 6, 8, 10, 12 tools according to the different production process requirements of customers. There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.

Shandong iGolden CNC Technology Co.,Ltd., established in 2012, is a solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.

Product lines cover 8 series and more than 100 models, such as woodworking machine, woodworking engraving machine, stone engraving machine, foam mold engraving machine, laser machine, plasma cutting machine, etc. We always provide customers with high-quality products, competitive price and excellent service.

Machine Photos

ATC CNC Router with Automatic Tools ChangerATC CNC Router with Automatic Tools ChangerATC CNC Router with Automatic Tools ChangerATC CNC Router with Automatic Tools Changer


ATC CNC Router Machine With Automatic Tool Changer Features :

1. The bed body steel structure is welded with thick-walled square tubes, and is subjected to vibration aging treatment. It is durable and does not deform

2. Z-axis adopts Taiwan TBI ball screw, Taiwan high-precision Hiwin linear guide, high precision and more durable.

3. 8 Pcs Linear automatic tools changer, fast speed changer tools, high efficiency for woodworking.

4. Weihong system with break point specific memory, power outages continued carving, processing time forecast etc.

5. Vacuum table with double layer hard PVC,it has big suction and will not deform for a long time.


CNC Router With Automatic Tool Changer Advantage:


Help increase production


Since these impressive machines can produce large amounts of output, it is not surprising that they are likely to increase output. Because they use computers for programming, they don’t feel tired, don’t need to rest, and don’t spend a lot of time. Unlike manual labor methods, the result is continuous production of goods.


Impeccable accuracy


The precision of the computer numerical control (CNC) machine is unparalleled. To make a car requires hundreds of different elements and parts, and these machines can be programmed to produce each part that meets strict requirements.


When making a safe and well-assembled car, precision engineering is essential, and ATC CNC machine are the ideal way to achieve this goal.


Lower skill requirements


Although a certain level of training is required to operate these machines effectively and accurately, it is far below the level required to train and hire manual machine operators. After programming the ATC CNC machine, the information will be retained and can be reused. This not only speeds up the process, but also does not require the involvement of the machine operator when parts need to be produced again in the future.


The most popular, industrial 3 axis ATC CNC router, perfect for professional CNC users, the Z series offers the robust construction that iGOLDENCNC products are known for, combined with a competitive set of configurations.


Parameter Configuration Of 3 Axis ATC CNC Router For Sale:


Model

iGW-ATC-1325

Working area

1300*2500*250mm

Spindle

HQD 9.0kw Air Cooling ATC Spindle

Max. Running Speed

50000mm/min

Max. Working Speed

30000mm/min

Repositioning Accuracy

0.02mm

Machine Body

T-type Welding Structure

Gantry

Steel Structure

Worktable

Vacuum Suction with T-slot Table

Guide Rails

Taiwan HIWIN

Ball Screw

Taiwan TBI

Driver

Servo Drive and Servo Motor

Reducer

Japan SHIMPO

Frequency Converter

Taiwan Fuling

Electrical Components

France SCHNEIDER

Control System

Taiwan LNC

Working Voltage

380V/50Hz

详情_01详情_05ATC CNC Router with Automatic Tools Changer详情_07ATC CNC Router with Automatic Tools Changer详情_08详情_06详情_11

详情_10(1)

ATC CNC Router with Automatic Tools Changer

详情_07详情_11详情_09详情_12详情_14


详情_13详情_17详情_16

Linear ATC CNC Router With Auto Tool Changer Applications Include:

>Wooden furniture industry: solid wood and composite doors, cabinet doors, sliding doors, paint-free doors, lacquered doors, soft-packed doors, flat panel carving, solid wood carving, panel furniture processing, antique mahogany furniture processing, solid wood mural carving and other industries;

>Wooden crafts industry: clock and watch frames, craft photo frames, calligraphic cards, electrical counter-tops, sporting equipment, thin aluminum plate engraving and carving;

>Advertising industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metal plates.

详情_30详情_29
