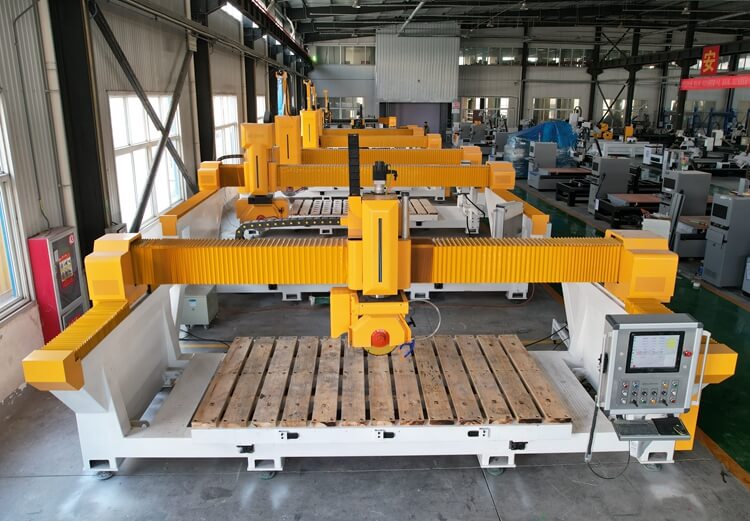

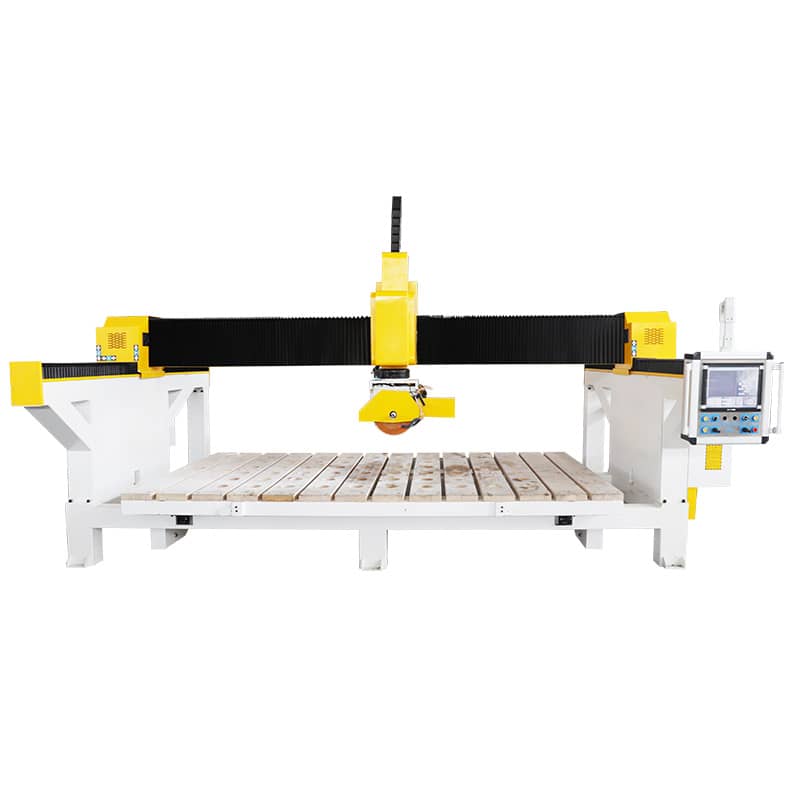

A China 5 axis bridge stone cutting machine is a kind of stone cutting equipment. The stone bridge cutting machine meets the diversified cutting needs of stone. It is suitable for special-shaped cutting, chamfering, edging, etc. of granite, marble, artificial stone, slate, etc. Digging, cutting, and edging for kitchen, bathroom, and toilet countertops in the home improvement industry.The integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.
Bridge saws are used in industrial masonry and stone cutting, and they get their name from their shape. If you stand back and look at this type of machine, you will see that it does, in fact, resemble a bridge, with two posts or supports on either side, connected by a sort of bridge that spans several feet. This connecting bridge is the track along which the saw’s cutting head moves.
1.Blade can tilt 0-90° ,full automatic vertical and horizontal switch cutting repeatedly by one-button, 0°-90°-180°-270° automatic positioning chamfering cutting.
2.Worktable can rotate 0-360° and tilt 0-85°, easy for cutting direction changing and slab loading.
3. Crossbeam and carling adopt Taiwan's Hiwin linear guide to move, which ensure high precision of cutting and long life.
4. Using Siemens PLC control system with and touch-sensitive screen offer friendly and inteligent control.
5. Electric components adopts Siemens or Schneider brand
6. Laser checking and calibration instrument to aid in lining up the cut.
7. Monobloc structural frame is easy for loading, transportation and installation.
8. Countertop Driling and milling, Cutting round and oval shape.
9. china 5 axis bridge stone cutting machine is made of very strong cast iron for stable running and stainless steel for protection.What you see, what you get. It is monoblock structure frame, easy for loading, transportation and installation.
10.china 5 axis bridge stone cutting machine head provides automatic power tilting of 0°-45° for miter cuts, very excellent in cutting kitchen countertops.
Spindle Motor And Inverter
Large power 3kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.
1) Complex Machining Capabilities
granite bridge saw for sale makes it possible to cut intricate parts that would require casting or additional manufacturing steps with traditional machining methods.
2) Increased Productivity
As modern CNC 5 axis bridge cutting machine make simultaneous machining possible, you can cut your parts and components from all sides and angles in a much shorter time and also more accurately. The additional 5th axis via a rotary table (e.g. the MF630 from Quaser) or a movable spindle head ( see the UR1000 by Takumi) reduces the number of CNC processing steps, shortens your manufacturing chain and therefore increases your overall productivity.
3) Shorter Lead Time
Especially important for industries with extremely short time to market expectations such as the automotive or the aerospace industry. 5 axis machining not only speeds up the manufacturing process it also allows for new, more efficient ways of cutting and milling the same part and also tool-wear compensation strategies. In some cases, this can reduce the lead time from several weeks to just a few days.
4) Cost Reduction
Due to the speed boost from 5-Axis CNC machining compared to 3+2 setups or 3-axis machining that involves recalibration and reprogramming, the overall production time and as a consequence the cost per part decreases drastically.
5) Single Setup & Automation
Though the programming requirements and automation process might seem overwhelming at first when switching from a 3-Axis CNC to a 5-Axis CNC machine, the productivity gains definitely outweigh the initial effort: more accurate cutting, smoother surfaces finishes, and faster cutting speeds all in one setup.
6) Greater Accuracy & Flexibility
A 5-Axis CNC machine offers much more precision and machining flexibility than a 3- or 3+2 Axis machine. When it comes to machining complex parts with intricate details for the aerospace or medical industry, the overall performance and accuracy of a 5-Axis CNC machine with a dedicated controller will ensure that your finished product meets the quality, safety, and reliability specifications.
CNC Bridge Stone Saw Applications:
Marble, Granite, standstone,glass,headstone, tablet,such as ceramic engraving and cutting machine. Have mainly three functions: cutting, polishing the edge, cut hole in sink.
Pre-sales
Free pre-sale consultation
Free sample testing
Professional CNC solutions
Customer reception
Fast delivery within 7 days(Available in stock)
Customized machines delivered within 30 days
After-sales
2-year warranty
Fast feedback and after-sales service in 12 hours
Fast spare parts and technical assistance
Free training services
Special design, customized, OEM order
We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc. The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.We adopt international advanced producing technologies to improve our products. Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.
