Affordable Cheap Woodworking CNC Router Engraving Machine

A good value for money 1325 Woodworking CNC Router Machine is on sale, perfect for novices and beginners, with a wide range of applications
Availability:

Video


CNC Wood Router 1325 Description:

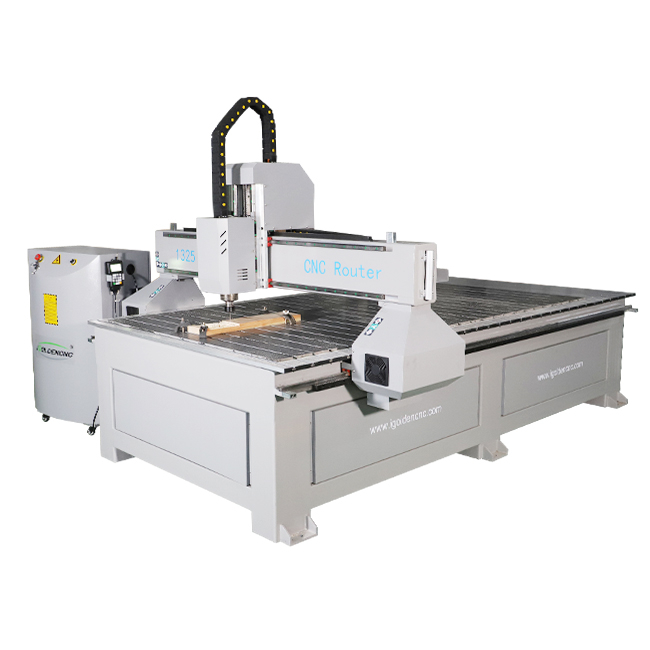

1325 CNC router for sale at best price. This is an entry-level CNC router machine, which is affordable, durable and powerful, and is easy to learn and operate. It is a top choice for small businesses and beginners.


Factory actual shooting

Cheap 1325 woodworking router

Cheap 1325 engraving machine

CNC Router 1325 Features:

• Perfect combination of T-slot and Vacuum table makes you fix the workpiece by clamp with no limit.

• Frame is welded with seamless steel structure; processed by high-temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress, and it is supported by 6 legs with adjustable leveling feet.

• Beam is made of steel. A steel beam is superior to aluminum in its ability to suppress and absorb the forces created during cutting. It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability for cnc wood router 1325.

• The X and Y axis motion is via a rack and pinion drive, which is hardened for extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.

• Each axis of motion is supported on high precision linear guideways. Hiwin linear guides allow for higher feed speeds and a better quality of cut.

• The Y-axis uses a dual drive, one for each side of the gantry.


1325 Single Head CNC Router Parameter:

Description

Parameters

Working area

1300*2500*200mm

Spindle

4.5kw HQD air cooling spindle

Inverter

Rituo

Motor

Stepper/Servo

Motor driver

Stepper/Servo

Control system

DSP iGoldencnc

Table

T slot working table

Guide rail

XYZ Axis Taiwan liner square guide rail

Ball screw

Z Axis Taiwan TBI ball screw

Voltage

380V/50Hz

Vacuum pump

Optional


Single Head CNC Router 1325 Detail

Powerful 4.5KW HQD air cooling spindle

Powerful 4.5KW HQD air cooling spindle


Strong and durable transmission

Strong and durable transmission


1300*2500mm T slot working table

1300*2500mm T slot working table

Whether it is big board, small board, irregular plate, can be fixed firmly.


Independent control cabinet

Independent control cabinet + DSP A11 control system


Scope of application

Scope of application

Woodworking CNC Router Application:

1, Wooden doors and furniture industries: wood and composite doors, cabinet doors, a large area of flat plate engraving, wood engraving and milling carved, carved furniture, antique mahogany furniture, sculpture, wood carving art of murals and other industries;


2, Wooden handicraft processing: watch box, craft photo frames, calligraphy plaque, counter tops appliances, sporting goods equipment, engraving and milling a thin aluminum sculpture;


3, Electronics industry: circuit boards, insulation materials, LED display, home appliances (TV, washing machine, refrigerator) or model shell carving engraving and milling;


4, Music production industry: musical instruments carved three-dimensional surface, shape cutting, such as large or small violin and piano panel head, guitar, ecru and other three-dimensional surface engraving and milling;


5, EVA processing industry: EVA materials, packaging tools equipment, medical equipment, electronic products, glassware, etc. lined with carved engraving and milling.


6, Other industries: building model, wood model, aviation wood model, propeller, auto foam mold.
