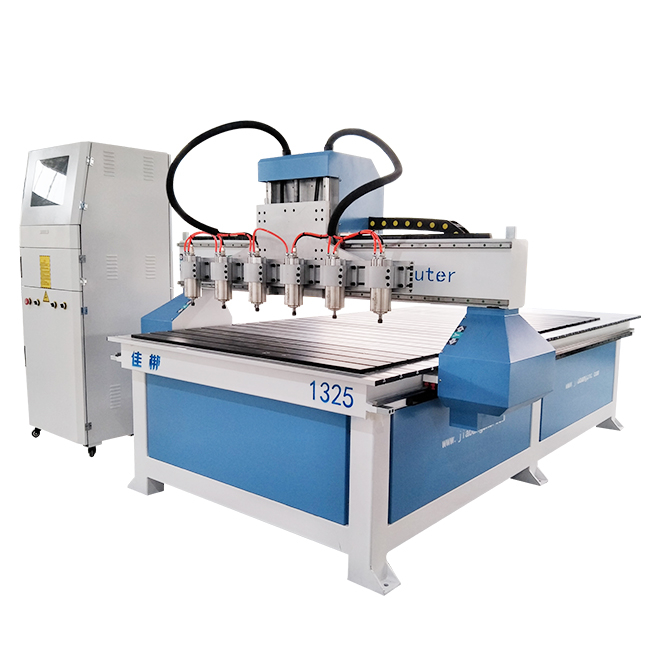

1-6 Multi Head Cnc Router Wood Carving Machine

Share to:

Multi head cnc router wood carving machine suitable for wooden door and furniture, windows, tables and chairs,cabinets and panels, 3d wave plate, mdf, computer desk, musical instruments, billboard, logo, sign, 3d characters cutting, acrylic cutting, led/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc.

Video

Product Description

03



  • Solid gantry,well structure of lathe bed,stable and high speed,high accuracy.

  • Highspeed air cooling spindle and high performance subdivision driver ensure work stably for long time.

  • With easily-learned sofware,conveniently check the moving path  of tool, and adjust the processing depth of Z axis and the speed of motor.

  • Vacuum table with great absorption strengt,high efficient for mass production, cutting speed over 20m/min. Low vibration and smooth motion ensure higher work piece quality.


Parameters

Description

Parameters

Model

IGW- 1325-1-6

Working size

1300*2500*200mm(also customise)

Spindle

1.5KW *6 water cooling spindle

Inverter

Fuling inverter

Motor

Stepper motor

Driver

Stepper driver

System

NC studio

Table

Aluminum T slot table

Rail

Taiwan Hiwin  X,Y axis25,Z axis 20

Transmission

Gear rack

Ball screw

Z axis TBI ball screw

Bed

Thick welded big square tube

Gangry

Steel beam

Cabinet

Independent cabinet

Voltage

380V/220V


一拖六_06

Application

1-6 Multi Head Cnc Router Wood Carving Machine


  • Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.

  • Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel, literal-hole cut,lightbox mold,stamp,mould,etc.

  • Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.

  • Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.


Company Information

Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany, etc. And welcome to visit us for more choices.

company


FAQ:


1.What's the advantage of the cnc woodworking machine?

It can save time, because 6 spindles can working at the same time Improve efficiency.


2.Can the machine process other materials besides wood? Can you process metal?

It can working on metal, acrylic, foam, plastic and so on.


3.How do the work with six spindles?

It can work both together and separated.


4.If we don't know how to use the cnc machine, can you teach us?

Yes,we will ,if you come to China, we will offer you free training until you can use machine freely. And if you are busy ,we will have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.


5.Can this machine do 3D sculpting?

It can do 3D sculpting.
