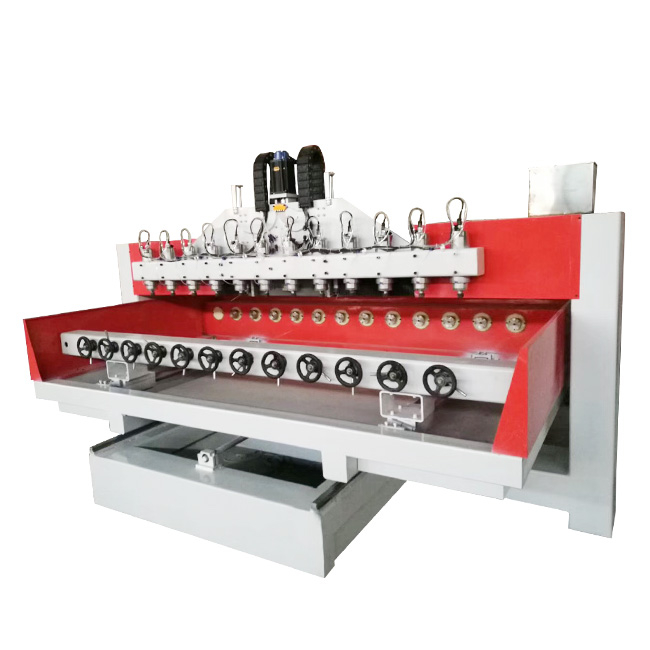

3D Stone CNC Router Cutting Machine Description:
The high-efficiency 3D stone CNC router engraving machine designed by iGOLDENCNC adopts a high-strength mechanical structure, which is very suitable for manufacturers in the mass processing of cylindrical stone industry. Imported linear guide rails are used to ensure accuracy and provide a set of competitive configurations.
3D Stone CNC Router Machine Technical Data:
| Workpiece Size | mm | 350*1000*6 |
| Z Axis Working Height | mm | 600 |
| Positioning Accuracy | mm | 0.05 |
| Re-positioning Accuracy | mm | 0.02 |
| Body Structure | Welding Body | |
| X, Y, Z Axis Structure | Linear Guide Rail, Ball Screw | |
| Max. Running Speed | mm/min | 30000 |
| Max. Working Speed | mm/min | 15000 |
| Spindle | kw | 5.5kw Water-cooling Spindle*6（6-12 Spindle Optioned） |
| Spindle RPM | rpm/min | 24000 |
| Working Voltage | V/Hz | AC 380V±10%/50-60Hz |
| Machine Weight | kg | 6300kg |
CNC Router Machine Multi Spindle Configuration:
| Spindle | HQD Water-cooling Spindle (Italy HSD Spindle Optioned) | Machine Body | Heavy-duty Split-type Welding Body, Fixed with Screw |
| Worktable | Complex Worktable ( Rotary Device Optioned) | Control System | DSP Control System（Taiwan SYNTEC System Optioned） |
| Servo Motor | Japan YASKAWA（Leadshine or Yako Optioned） | FrequencyConverter | Taiwan DELTA |
| Gear Rack | Taiwan HIWIN | Reducer | Japan SHIMPO |
| Electric Components | France SCHNEIDER | Limited Switch | Japan OMRON |
| Tool Setting | High-precision Automatic Tool Setting Device (Optioned) | Lubrication System | Automatic Lubrication Device (Optioned) |
| Optioned | Automatic Leveling Device | ||
3d Stone Cnc Router Machine Size:
3d Stone Cnc Machine Features:
1.X,Y,Z threeaxises all use imported square orbits .heavy loading,stable working, high precision and long lifetime .
2.It also equips with water groove and dustproof structure.It can protect the machine and make it long operating life
3.Water cooling constant torque spindle with the imported bearings, high power and low noise.
4.The transducer with stable output signals
5.Fully sgielded,bending circuity, and imported electronic components.
6.Double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg/
8.Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam,Castmate,UCANCAM ,Coredraw
Multi Spindle Stone CNC Router Application:
Suitable for industries such as dragon pillars, stone lions, Buddha statues, bridge engineering, garden engineering, tombstone engineering, etc.
The multi-head stone engraving machine is suitable for mass production of embossed round products such as tea trays, fences, fence posts, little lions, unicorns, animals, figures, and Guanyin statues.
